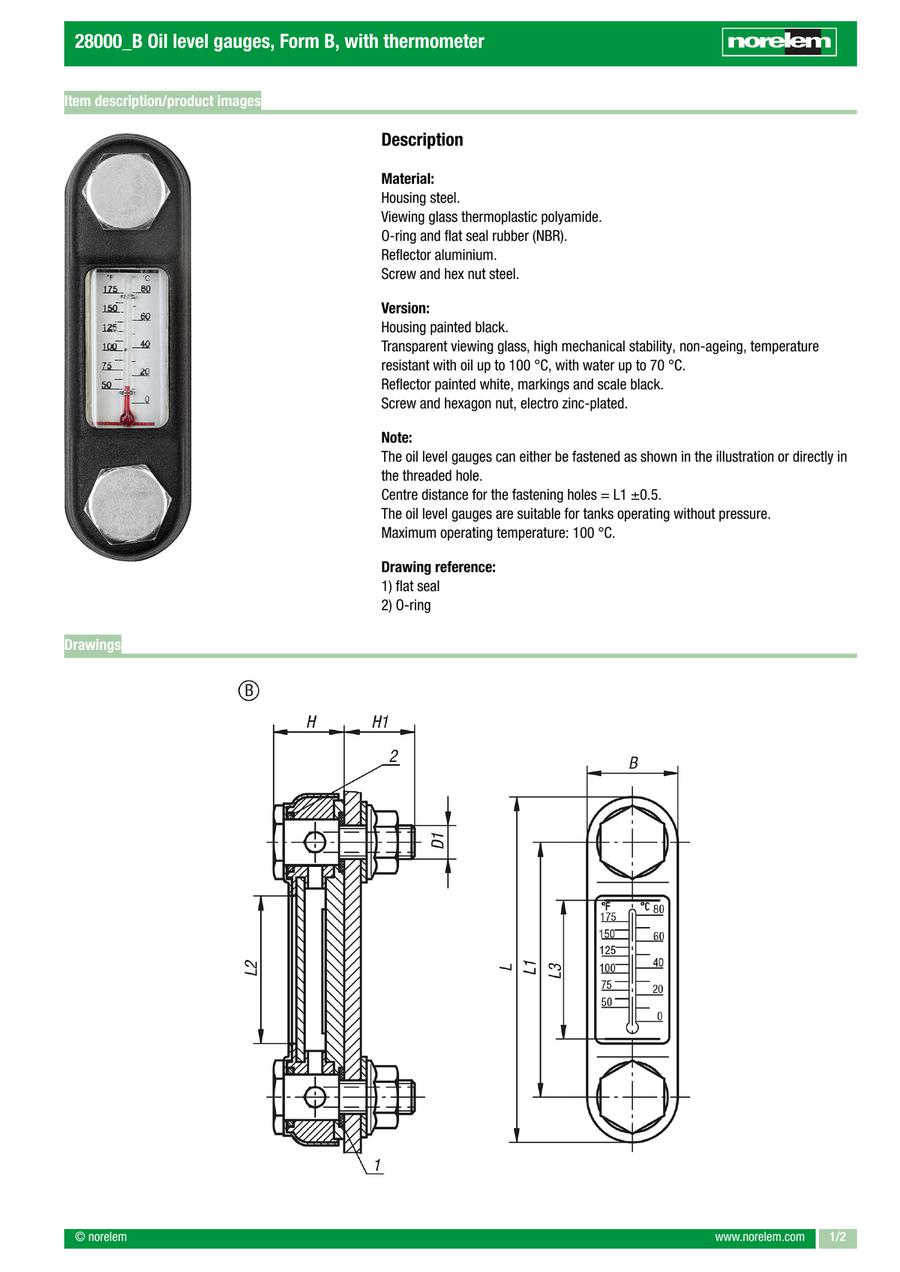

Oil level gauges, Form B, with thermometer, Steel (28000)
· High mechanical strength
· Ageing resistant
· Temperature resistant to 100°C
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
Part Number
|
|---|
| 28000-207610 |
| 28000-207612 |
| 28000-212710 |
| 28000-212712 |
| 28000-225412 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | B=Width (mm) | D1=Thread | H=Height (mm) | H1 (mm) | L=Length (mm) | L1 (mm) | L2 (mm) | L3 (mm) | Thermometer scale | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
20.70 € | 1 | 4 Days | 31 | M10 | 24.5 | 20 | 107 | 76 | 39 | 37 | 0 - 80 °C / 50 - 175 °F | ||
20.70 € | 1 | 4 Days | 31 | M12 | 24.5 | 20 | 107 | 76 | 39 | 37 | 0 - 80 °C / 50 - 175 °F | ||
27.34 € | 1 | 4 Days | 31 | M10 | 24.5 | 20 | 156 | 127 | 90 | 80 | 0 - 100 °C / 50 - 200 °F | ||
27.34 € | 1 | 4 Days | 31 | M12 | 24.5 | 20 | 156 | 127 | 90 | 80 | 0 - 100 °C / 50 - 200 °F | ||
52.66 € | 1 | 4 Days | 34 | M12 | 33 | 17 | 286 | 254 | 200 | 178 | 0 - 100 °C / 50 - 200 °F |
Loading...
Basic information
| Main material | Steel | Form | B | Number of fastening screws | 2 |
|---|
Configure
Basic Attributes
-
B=Width(mm)
- 31
- 34
-
D1=Thread
- M10
- M12
-
H=Height(mm)
- 24.5
- 33
-
H1(mm)
- 17
- 20
-
L=Length(mm)
-
L1(mm)
- 76
- 127
- 254
-
L2(mm)
- 39
- 90
- 200
-
L3(mm)
- 37
- 80
- 178
-
Thermometer scale
- 0 - 80 °C / 50 - 175 °F
- 0 - 100 °C / 50 - 200 °F
Filter by standard shipping days
-
- All
- 4 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
