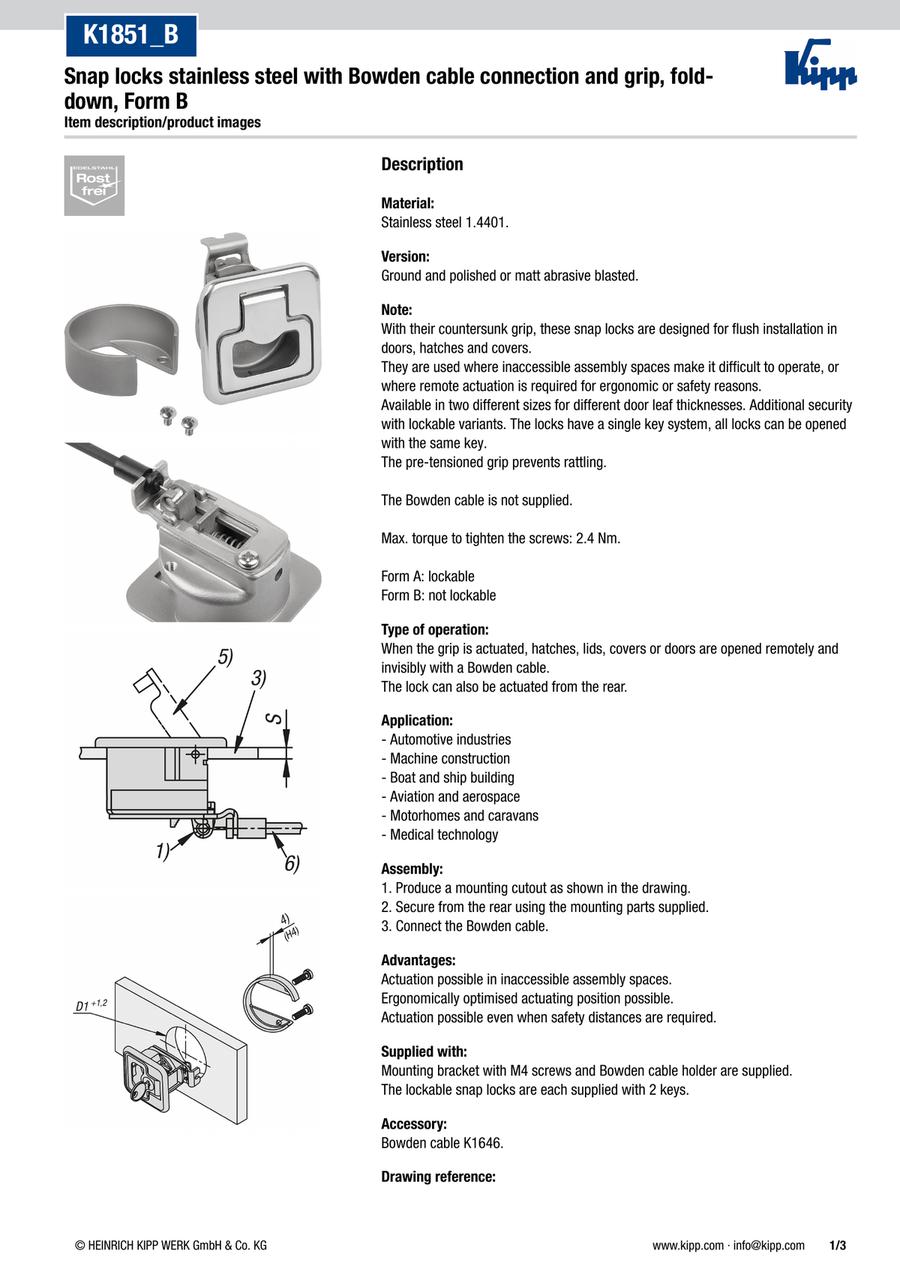

Snap locks Stainless Steel with Bowden cable connection and grip, fold-down, Form B (K1851)
· Suitable for indoor and outdoor areas
· Quick and easy to use.
· For door leaf thickness 2 - 22 mm
· Lockable variants
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Part Number
|
|---|
| K1851.1002356044 |
| K1851.1002356055 |
| K1851.1012356044 |
| K1851.1012356055 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | H4 (mm) | Screws | S = Door thickness (mm) | Surface finish body | Weight (kg) | |
|---|---|---|---|---|---|---|---|---|---|
75.42 € | 1 | 4 Days | 23 | M4x6 | 2-12 | polished | 0.422 | ||
75.42 € | 1 | 4 Days | 23 | M4x6 | 2-12 | matt blasted | 0.422 | ||
75.42 € | 1 | 4 Days | 12.5 | M4x20 | 12-22 | polished | 0.393 | ||
75.42 € | 1 | 4 Days | 12.5 | M4x20 | 12-22 | matt blasted | 0.393 |
Loading...
Basic information
| Main material | stainless steel A2 | Form | B | Form-Type | not lockable |
|---|---|---|---|---|---|
| Version 1 | with Bowden cable connection and grip | Version 2 | fold-down | A(mm) | 10 |
| B=Width(mm) | 60 | D=diameter(mm) | 49.5 | D1(mm) | 50 |
| H=Height(mm) | 35.9 | H1(mm) | 26.6 | H2(mm) | 4.5 |
| H3(mm) | 30.5 | F1=Tractive force(N) | 100 | Temperature range(°C) | -18 to 60 |
| Item | Snap lock | Steel code | 1.4401 | PL Edelstahl | true |
| RoHS | true |
Configure
Basic Attributes
-
H4(mm)
-
Screws
- M4x6
- M4x20
-
S = Door thickness(mm)
-
Surface finish body
- matt blasted
- polished
-
Weight(kg)
-
Type
-
Filter by CAD data type
- 2D
- 3D
Filter by standard shipping days
-
- All
- 4 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
