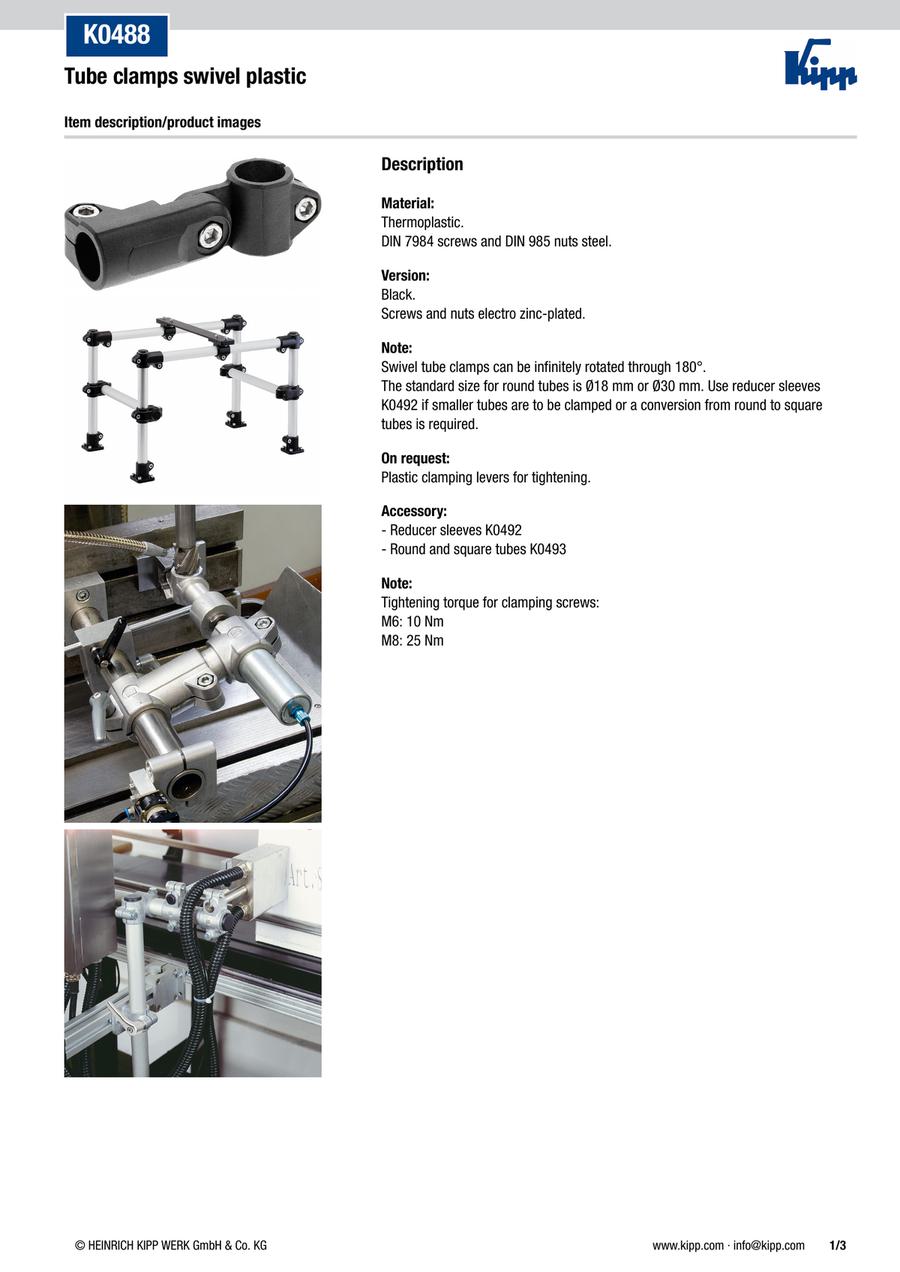

Tube clamps, swivel, Plastic (K0488)
· Application sectors: machine construction, safety equipment, housings, structures
· Infinitely adjustable through 180°
· On request: plastic clamping levers for fastening
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Part Number
|
|---|
| K0488.18 |
| K0488.30 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | N (mm) | A=Internal diameter (mm) | B=Internal diameter (mm) | C (mm) | D (mm) | E (mm) | F (mm) | G (mm) | H (mm) | L (mm) | M (mm) | O (mm) | P (mm) | S | T (mm) | Weight (kg) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
3.24 € | 1 | 4 Days | 34 | 18 | 18 | 30 | 25 | 26.5 | 30 | 25 | 27.5 | 94 | 45 | 14 | 21 | M6x18 | M6x18 | 0.0542 | ||
8.86 € | 1 | 4 Days | 52.5 | 30 | 30 | 45 | 40 | 41.5 | 45 | 40 | 43 | 143.5 | 68 | 22.5 | 28.5 | M8x25 | M8x25 | 0.1605 |
Loading...
Basic information
| Main material | Thermoplastic | Version 1 | for round tubes | Version 2 | 2-way hinge |
|---|---|---|---|---|---|
| Item | Tube Clamp | Component material | Steel | Surface finish component | galvanized |
| Product type | without toothing | RoHS | true |
Configure
Basic Attributes
-
N(mm)
-
A=Internal diameter(mm)
- 18
- 30
-
B=Internal diameter(mm)
-
C(mm)
-
D(mm)
-
E(mm)
-
F(mm)
- 30
- 45
-
G(mm)
- 25
- 40
-
H(mm)
-
L(mm)
-
M(mm)
-
O(mm)
- 14
- 22.5
-
P(mm)
-
S
- M6x18
- M8x25
-
T(mm)
- M6x18
- M8x25
-
Weight(kg)
-
Type
-
Filter by CAD data type
- 2D
- 3D
Filter by standard shipping days
-
- All
- 4 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
