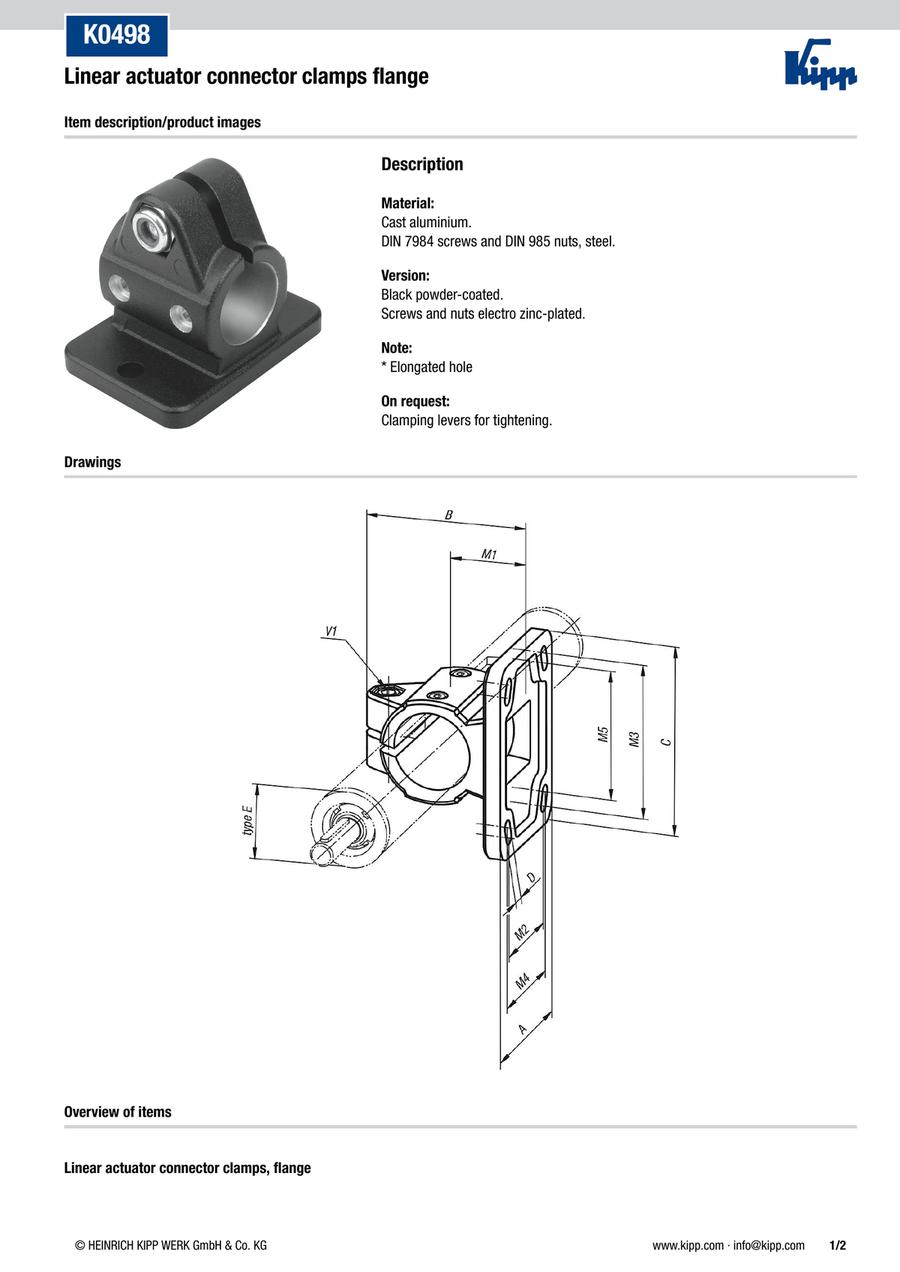

Linear actuator connector clamps, flange (K0498)
· Application sectors: machine construction, safety equipment, housings, structures
· On request: clamping levers for fastening
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Part Number
|
|---|
| K0498.18 |
| K0498.30 |
| K0498.40 |
| K0498.50 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | A (mm) | B (mm) | C (mm) | D (mm) | Form | M1 (mm) | M2 (mm) | M3 (mm) | M4 (mm) | M5 (mm) | Type=Internal diameter (mm) | V1 (mm) | Weight (kg) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
20.45 € | 1 | 4 Days | 37 | 42.5 | 50 | 5.5 (2x) | A | 18 | - | 40 | - | - | 18 | M6x16 | 0.0620 | ||
23.40 € | 1 | 4 Days | 55 | 63 | 78 | 6.5 (2x) | A | 30 | - | 60 | - | 53 | 30 | M8x25 | 0.1635 | ||
38.97 € | 1 | 4 Days | 80 | 87 | 105 | 8.5 (4x) | B | 42 | 52 | 82 | 60 | 80 | 40 | M10x30 | 0.4420 | ||
39.94 € | 1 | 4 Days | 92 | 100 | 130 | 10.5 (4x) | B | 50 | 60 | 100 | 62 | 98 | 50 | M10x35 | 0.6788 |
Loading...
Basic information
| Main material | Aluminium | Main colour | black | Version 1 | with flange |
|---|---|---|---|---|---|
| Version 2 | for linear actuator | Item | Tube Clamp | Component material | Steel |
| Surface finish body | powder-coated | Surface finish component | galvanized | RoHS | true |
Configure
Basic Attributes
-
A(mm)
-
B(mm)
-
C(mm)
-
D(mm)
-
Form
- A
- B
-
M1(mm)
- 18
- 30
- 42
- 50
-
M2(mm)
- 52
- 60
-
M3(mm)
- 40
- 60
- 82
- 100
-
M4(mm)
- 60
- 62
-
M5(mm)
- 53
- 80
- 98
-
Type=Internal diameter(mm)
- 18
- 30
- 40
- 50
-
V1(mm)
- M6x16
- M8x25
- M10x30
- M10x35
-
Weight(kg)
-
Type
-
Filter by CAD data type
- 2D
- 3D
Filter by standard shipping days
-
- All
- 4 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
