Configure

Material
Steel code
- EN AW-7075
- 1.4305
Grade
- 10
Surface finish body
- Bright
- Tempered
Main colour
- Black
Component material
- Steel
Slot width(mm)
- 6
- 8
- 10
- 12
- 14
- 16
- 18
- 20
- 22
- 24
- 28
- 32
- 36
- 42
B=Width(mm)
- 10
- 13
- 15
- 18
- 22
- 25
- 28
- 32
- 35
- 40
- 44
- 50
- 54
- 65
B1(mm)
- 5.6
- 7.6
- 9.6
- 11.6
- 13.6
- 15.6
- 17.6
- 19.6
- 21.6
- 23.6
- 27.6
- 31.5
- 35.5
- 41.5
D=thread(mm)
- M4
- M5
- M6
- M8
- M10
- M12
- M14
- M16
- M18
- M20
- M22
- M24
- M27
- M30
- M36
H=Height(mm)
- 8
- 10
- 12
- 14
- 16
- 18
- 20
- 24
- 28
- 32
- 36
- 40
- 44
- 52
H1(mm)
- 4
- 6
- 7
- 8
- 9
- 10
- 12
- 14
- 16
- 18
- 20
- 22
- 26
L=Length(mm)
- 10
- 13
- 15
- 18
- 22
- 25
- 28
- 32
- 35
- 40
- 44
- 50
- 54
- 65
Est. shipping days
- All
- Within 4 working days

Nuts for T-slots DIN 508 enhanced (07060)

Catalog

Part number:

Still undefined. 40 possible part numbers found.

Part number list
More Information
Catalog

Part number list

Number of items

Part number

Material

Steel code

Grade

Surface finish body

Main colour

Component material

Slot width

(mm)

B=Width

(mm)

D=thread

(mm)

H=Height

(mm)

L=Length

(mm)

Minimum order quantity

Steel	-	10	Tempered	Black	-	6	10	5.6	M5	8	4	10	1 pieces
Steel	-	10	Tempered	Black	-	8	13	7.6	M6	10	6	13	1 pieces
Steel	-	10	Tempered	Black	-	10	15	9.6	M8	12	6	15	1 pieces
Steel	-	10	Tempered	Black	-	10	15	9.6	M6	12	6	15	1 pieces
Steel	-	10	Tempered	Black	-	12	18	11.6	M8	14	7	18	1 pieces
Steel	-	10	Tempered	Black	-	14	22	13.6	M8	16	8	22	1 pieces
Steel	-	10	Tempered	Black	-	12	18	11.6	M10	14	7	18	1 pieces
Steel	-	10	Tempered	Black	-	14	22	13.6	M12	16	8	22	1 pieces
Steel	-	10	Tempered	Black	-	16	25	15.6	M14	18	9	25	1 pieces
Steel	-	10	Tempered	Black	-	18	28	17.6	M16	20	10	28	1 pieces
Steel	-	10	Tempered	Black	-	20	32	19.6	M18	24	12	32	1 pieces
Steel	-	10	Tempered	Black	-	22	35	21.6	M20	28	14	35	1 pieces
Steel	-	10	Tempered	Black	-	24	40	23.6	M22	32	16	40	1 pieces
Steel	-	10	Tempered	Black	-	28	44	27.6	M24	36	18	44	1 pieces
Steel	-	10	Tempered	Black	-	32	50	31.5	M27	40	20	50	1 pieces
Steel	-	10	Tempered	Black	-	36	54	35.5	M30	44	22	54	1 pieces
Steel	-	10	Tempered	Black	-	42	65	41.5	M36	52	26	65	1 pieces
Steel	-	10	Tempered	Black	-	14	22	13.6	M10	16	8	22	1 pieces
Steel	-	10	Tempered	Black	-	16	25	15.6	M12	18	9	25	1 pieces
Steel	-	10	Tempered	Black	-	18	28	17.6	M12	20	10	28	1 pieces
Steel	-	10	Tempered	Black	-	20	32	19.6	M12	24	12	32	1 pieces
Steel	-	10	Tempered	Black	-	22	35	21.6	M12	28	14	35	1 pieces
Steel	-	10	Tempered	Black	-	18	28	17.6	M14	20	10	28	1 pieces
Steel	-	10	Tempered	Black	-	20	32	19.6	M16	24	12	32	1 pieces
Steel	-	10	Tempered	Black	-	24	40	23.6	M16	32	16	40	1 pieces
Steel	-	10	Tempered	Black	-	28	44	27.6	M16	36	18	44	1 pieces
Steel	-	10	Tempered	Black	-	22	35	21.6	M18	28	14	35	1 pieces
Steel	-	10	Tempered	Black	-	24	40	23.6	M20	32	16	40	1 pieces
Steel	-	10	Tempered	Black	-	28	44	27.6	M20	36	18	44	1 pieces
Aluminum	EN AW-7075	-	Bright	-	Steel	6	10	5.6	M4	8	4	10	1 pieces
Aluminum	EN AW-7075	-	Bright	-	Steel	8	13	7.6	M6	10	6	13	1 pieces
Aluminum	EN AW-7075	-	Bright	-	Steel	14	22	13.6	M10	16	8	22	1 pieces
Aluminum	EN AW-7075	-	Bright	-	Steel	22	35	21.6	M16	28	14	35	1 pieces
Steel	-	10	Tempered	Black	-	36	54	35.5	M24	44	22	54	1 pieces
Stainless Steel	1.4305	-	Bright	-	-	8	13	7.6	M6	10	6	13	1 pieces
Stainless Steel	1.4305	-	Bright	-	-	10	15	9.6	M8	12	6	15	1 pieces
Stainless Steel	1.4305	-	Bright	-	-	12	18	11.6	M10	14	7	18	1 pieces
Stainless Steel	1.4305	-	Bright	-	-	14	22	13.6	M12	16	8	22	1 pieces
Stainless Steel	1.4305	-	Bright	-	-	16	25	15.6	M14	18	9	25	1 pieces
Stainless Steel	1.4305	-	Bright	-	-	18	28	17.6	M16	20	10	28	1 pieces

Unit price (excluding VAT)(Unit price including VAT)	Standard shipping days

1.59 € ( 1.89 € )	4 working days
1.66 € ( 1.98 € )	4 working days
1.75 € ( 2.08 € )	4 working days
2.17 € ( 2.58 € )	4 working days
2.35 € ( 2.80 € )	4 working days
2.77 € ( 3.30 € )	4 working days
1.95 € ( 2.32 € )	4 working days
2.18 € ( 2.59 € )	4 working days
2.72 € ( 3.24 € )	4 working days
3.37 € ( 4.01 € )	4 working days
5.74 € ( 6.83 € )	4 working days
6.64 € ( 7.90 € )	4 working days
10.23 € ( 12.17 € )	4 working days
11.91 € ( 14.17 € )	4 working days
37.88 € ( 45.08 € )	4 working days
29.31 € ( 34.88 € )	4 working days
60.36 € ( 71.83 € )	4 working days
2.77 € ( 3.30 € )	4 working days
3.37 € ( 4.01 € )	4 working days
4.18 € ( 4.97 € )	4 working days
6.46 € ( 7.69 € )	4 working days
7.73 € ( 9.20 € )	4 working days
4.18 € ( 4.97 € )	4 working days
5.98 € ( 7.12 € )	4 working days
11.08 € ( 13.19 € )	4 working days
12.77 € ( 15.20 € )	4 working days
8.45 € ( 10.06 € )	4 working days
12.61 € ( 15.01 € )	4 working days
13.28 € ( 15.80 € )	4 working days
9.48 € ( 11.28 € )	4 working days
9.41 € ( 11.20 € )	4 working days
20.34 € ( 24.20 € )	4 working days
32.93 € ( 39.19 € )	4 working days
25.57 € ( 30.43 € )	4 working days
4.10 € ( 4.88 € )	4 working days
4.50 € ( 5.36 € )	4 working days
5.60 € ( 6.66 € )	4 working days
7.74 € ( 9.21 € )	4 working days
10.92 € ( 12.99 € )	4 working days
14.35 € ( 17.08 € )	4 working days

More Information

Basic information

Basic information

· Version: steel or stainless steel

Catalog

Products homepage

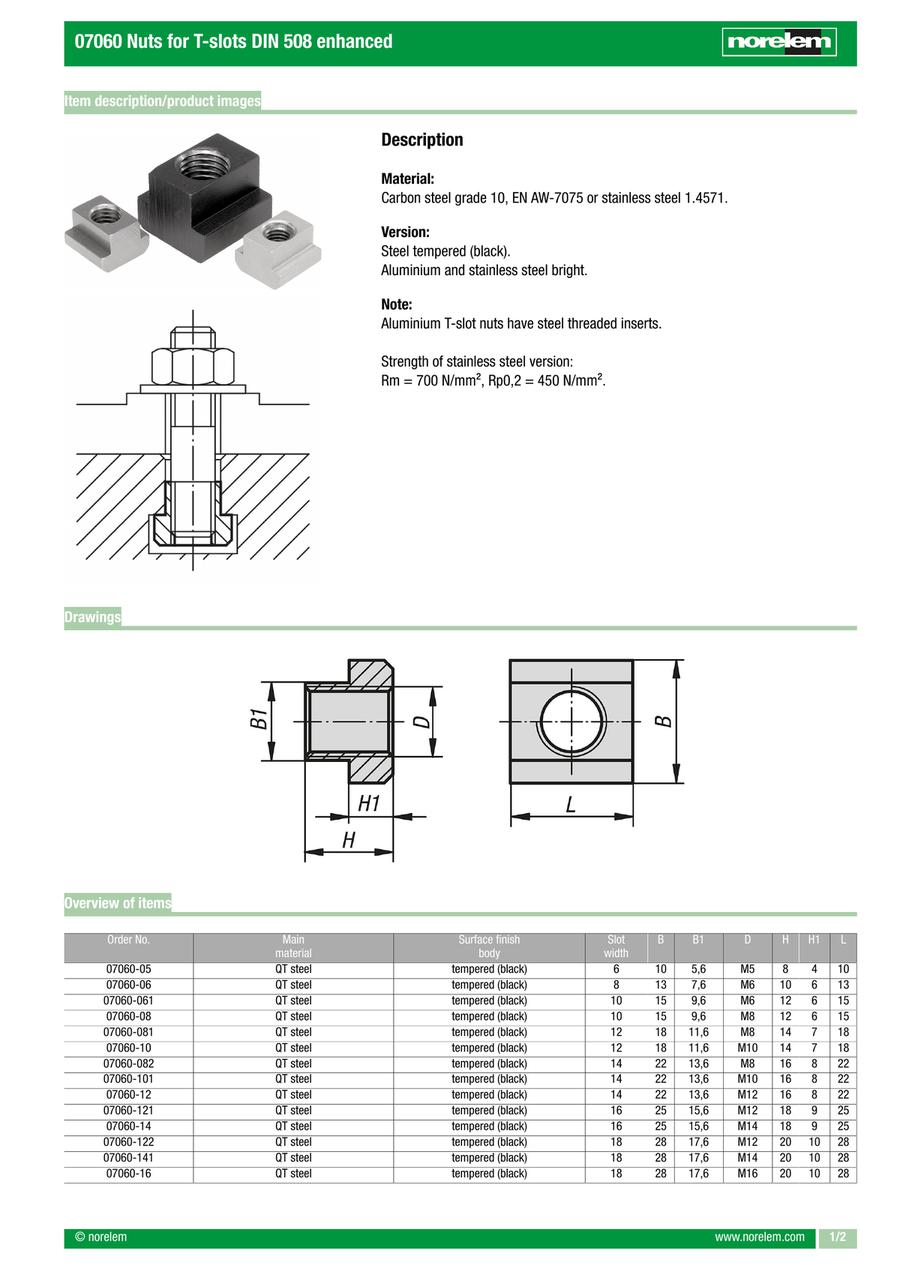

Catalog (2-page spread)
