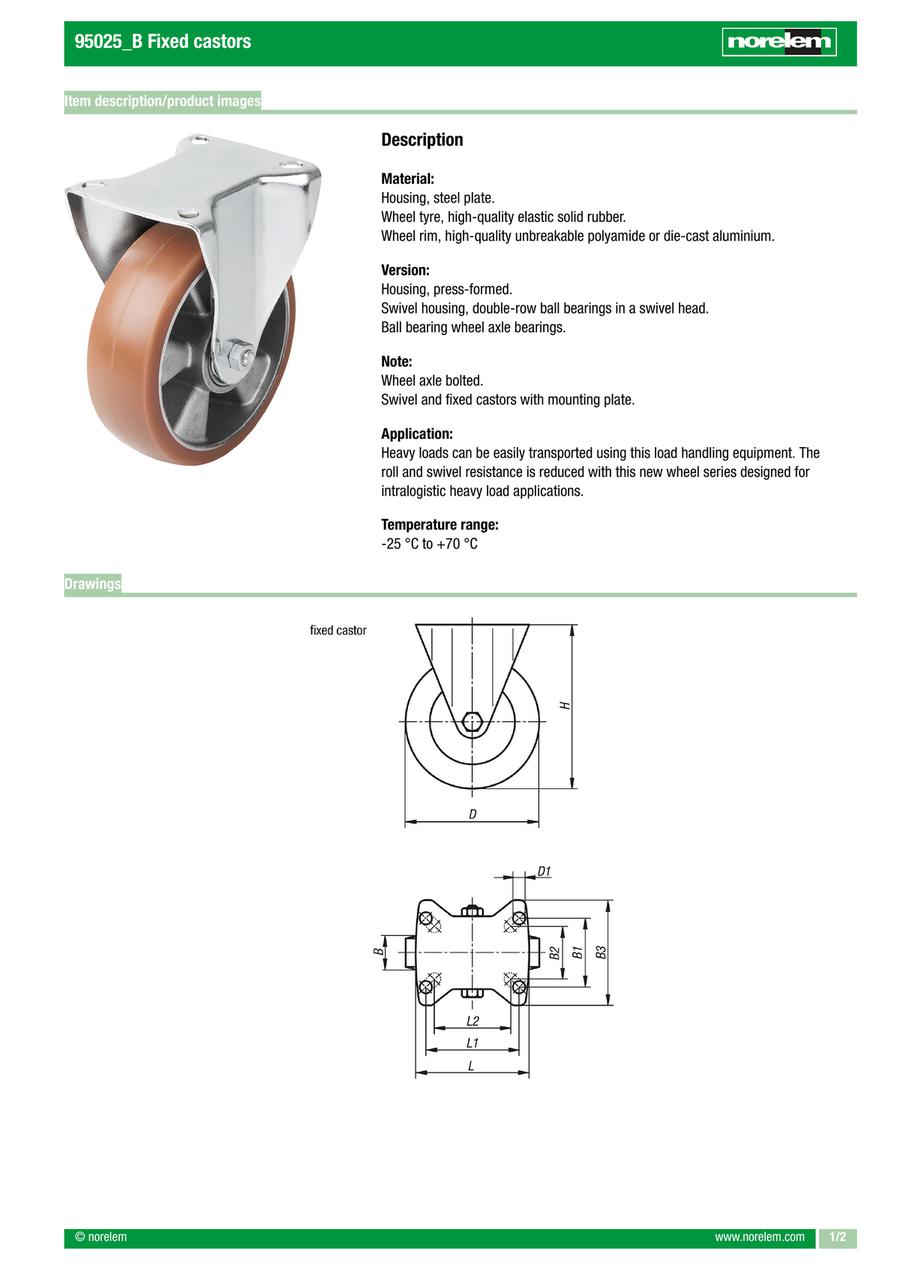

Fixed Castors, Rubber, with low roll resistance (95025)
· High dynamic loading
· Low roll resistance
· Thin tread.
· No floor damage.
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
Part Number
|
|---|
| 95025-101000401 |
| 95025-101250401 |
| 95025-101500501 |
| 95025-101600501 |
| 95025-102000501 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Mounting Height H (mm) | Wheel Dia. D (mm) | Wheel Width B (mm) | D1 (mm) | B1 (mm) | B2 (mm) | B3 (mm) | L (mm) | L1 (mm) | L2 (mm) | Permissible load (kg) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
158.64 € | 1 | 4 Days | 125 | 100 | 40 | 9 | 60 | 55 | 85 | 100 | 80 | 76 | 200 | ||
166.30 € | 1 | 4 Days | 150 | 125 | 40 | 9 | 60 | 55 | 85 | 100 | 80 | 76 | 200 | ||
220.83 € | 1 | 4 Days | 190 | 150 | 50 | 11 | 80 | 75 | 110 | 140 | 105 | - | 400 | ||
252.64 € | 1 | 4 Days | 195 | 160 | 50 | 11 | 80 | 75 | 110 | 140 | 105 | - | 400 | ||
309.82 € | 1 | 4 Days | 235 | 200 | 50 | 11 | 80 | 75 | 110 | 140 | 105 | - | 400 |
Loading...
Basic information
| Main material | Rubber | Component material | Steel | Wheel bearing | ball bearing |
|---|
Configure
Basic Attributes
-
Mounting Height H(mm)
-
Wheel Dia. D(mm)
-
Wheel Width B(mm)
-
D1(mm)
- 9
- 11
-
B1(mm)
-
B2(mm)
- 55
- 75
-
B3(mm)
- 85
- 110
-
L(mm)
- 100
- 140
-
L1(mm)
- 80
- 105
-
L2(mm)
- 76
-
Permissible load(kg)
Filter by standard shipping days
-
- All
- 4 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
