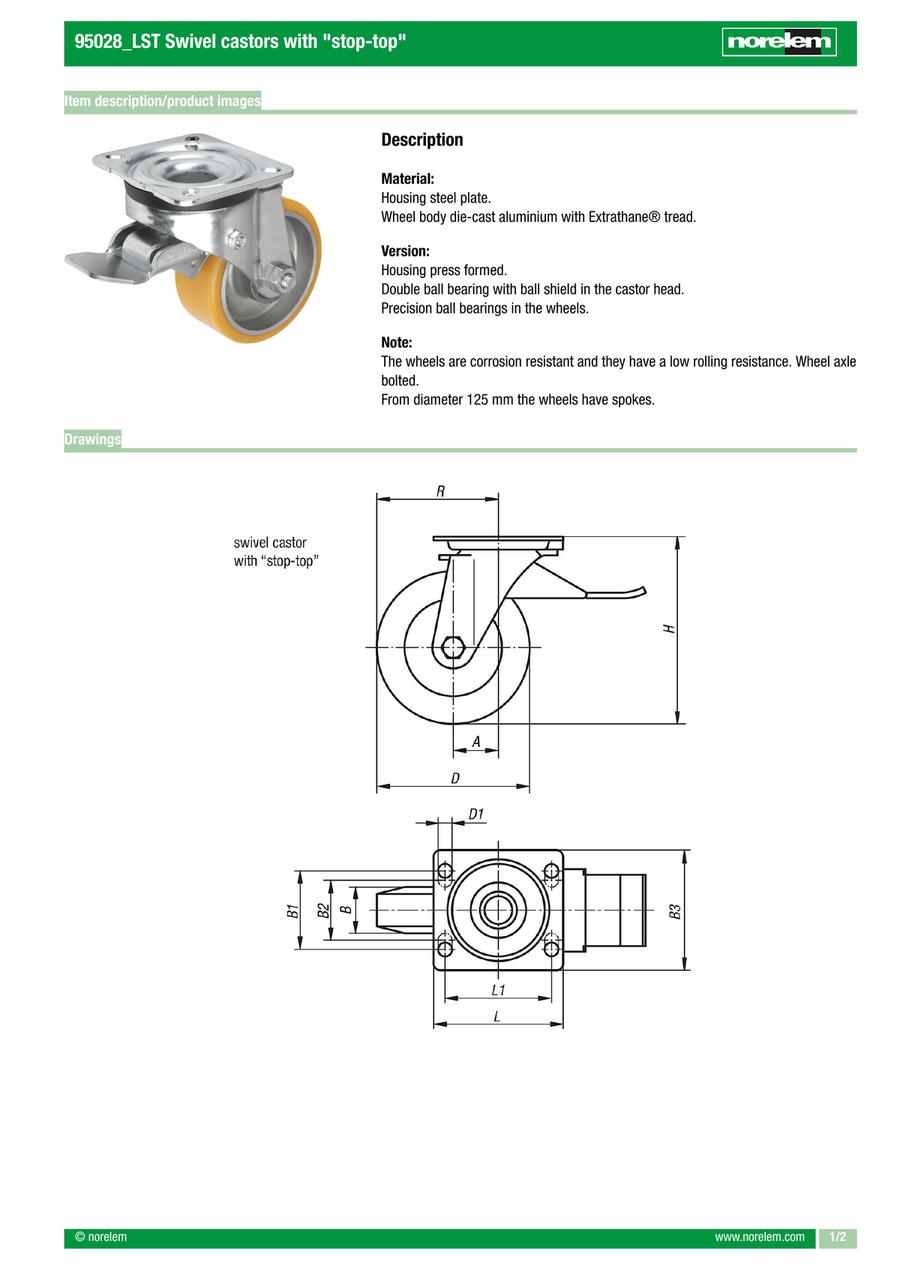

Swivel Castors with "stop-top" (95028)
· Wheels with precision ball bearing
· Steel plate housing
· Aluminium wheel rim
· Polyurethane tread, low rolling resistance
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
Part Number
|
|---|
| 95028-100402 |
| 95028-125402 |
| 95028-160502 |
| 95028-200502 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Mounting Height H (mm) | Wheel Dia. D (mm) | Wheel Width B (mm) | D1 (mm) | A (mm) | B1 (mm) | B2 (mm) | B3 (mm) | L (mm) | L1 (mm) | R (mm) | Permissible load (kg) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
129.57 € | 1 | 4 Days | 130 | 100 | 40 | 9 | 45 | 60 | - | 85 | 100 | 80 | 95 | 250 | ||
142.91 € | 1 | 4 Days | 155 | 125 | 40 | 9 | 48 | 60 | - | 85 | 100 | 80 | 110.5 | 250 | ||
232.89 € | 1 | 4 Days | 202 | 160 | 50 | 11 | 63 | 80 | 75 | 110 | 140 | 105 | 143 | 550 | ||
260.45 € | 1 | 4 Days | 245 | 200 | 50 | 11 | 70 | 80 | 75 | 110 | 140 | 105 | 170 | 800 |
Loading...
Basic information
| Main material | Polyurethane | Component material | Steel | Wheel bearing | ball bearing |
|---|
Configure
Basic Attributes
-
Mounting Height H(mm)
-
Wheel Dia. D(mm)
-
Wheel Width B(mm)
-
D1(mm)
- 9
- 11
-
A(mm)
-
B1(mm)
-
B2(mm)
- 75
-
B3(mm)
- 85
- 110
-
L(mm)
- 100
- 140
-
L1(mm)
- 80
- 105
-
R(mm)
-
Permissible load(kg)
Filter by standard shipping days
-
- All
- 4 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
