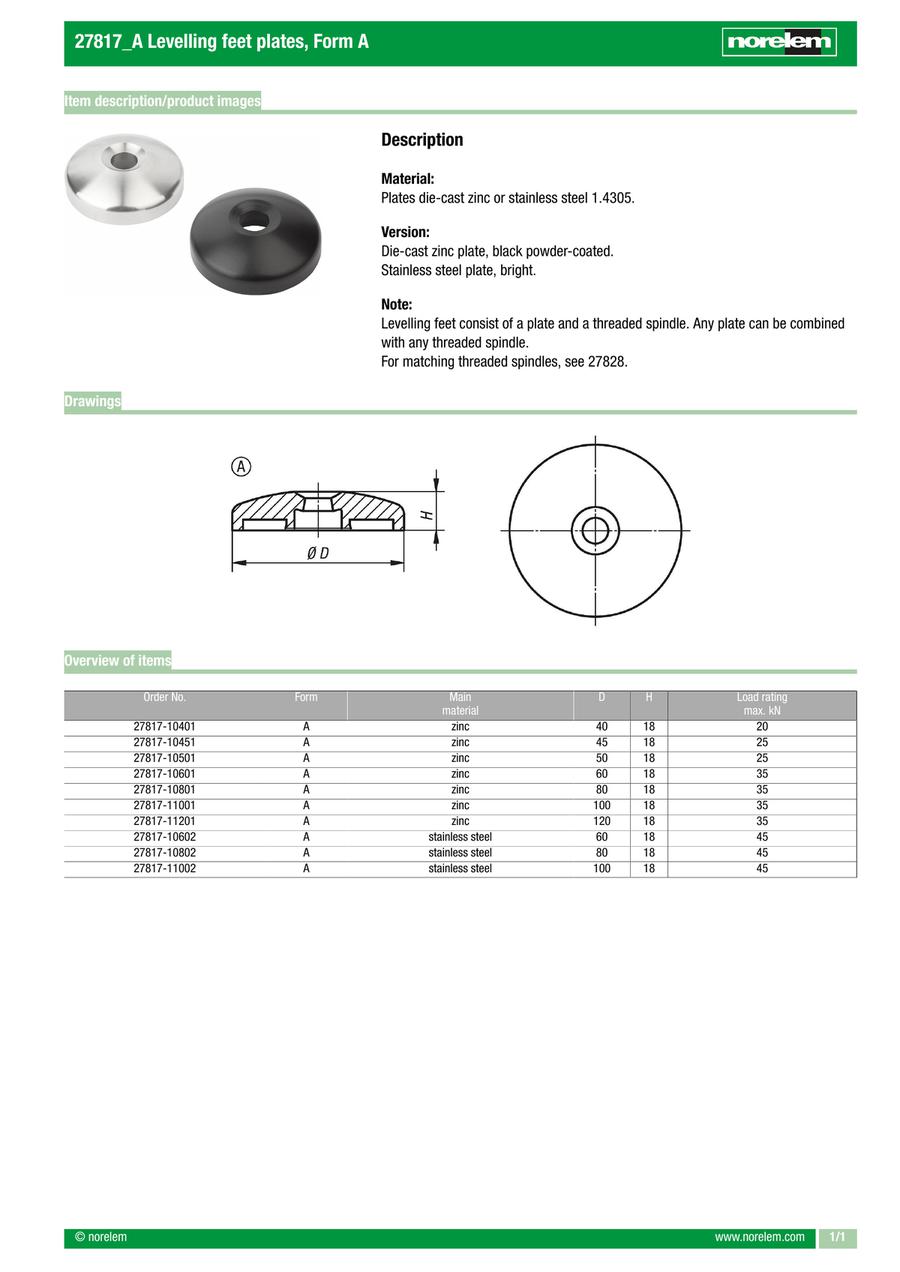

Levelling feet plates Form A (27817)
· Application sectors: machine and equipment construction, logistics and assembly
· Any plate can be combined with any threaded spindle
· The anti-slip-plate absorbs vibrations and prevents the swivel foot slipping
· Material: plate die-cast zinc or 1.4305 stainless steel
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
Part Number
|
|---|
| 27817-10401 |
| 27817-10451 |
| 27817-10501 |
| 27817-10601 |
| 27817-10602 |
| 27817-10801 |
| 27817-10802 |
| 27817-11001 |
| 27817-11002 |
| 27817-11201 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Main material | D=plate diameter (mm) | Load rating max. (kN) | |
|---|---|---|---|---|---|---|---|
7.89 € | 1 | 4 Days | Zinc | 40 | 20 | ||
8.76 € | 1 | 4 Days | Zinc | 45 | 25 | ||
9.19 € | 1 | 4 Days | Zinc | 50 | 25 | ||
13.34 € | 1 | 4 Days | Zinc | 60 | 35 | ||
29.60 € | 1 | 4 Days | Stainless steel | 60 | 45 | ||
15.84 € | 1 | 4 Days | Zinc | 80 | 35 | ||
41.23 € | 1 | 4 Days | Stainless steel | 80 | 45 | ||
20.45 € | 1 | 4 Days | Zinc | 100 | 35 | ||
63.31 € | 1 | 4 Days | Stainless steel | 100 | 45 | ||
26.58 € | 1 | 4 Days | Zinc | 120 | 35 |
Loading...
Basic information
| Form | A | H=Height(mm) | 18 |
|---|
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
