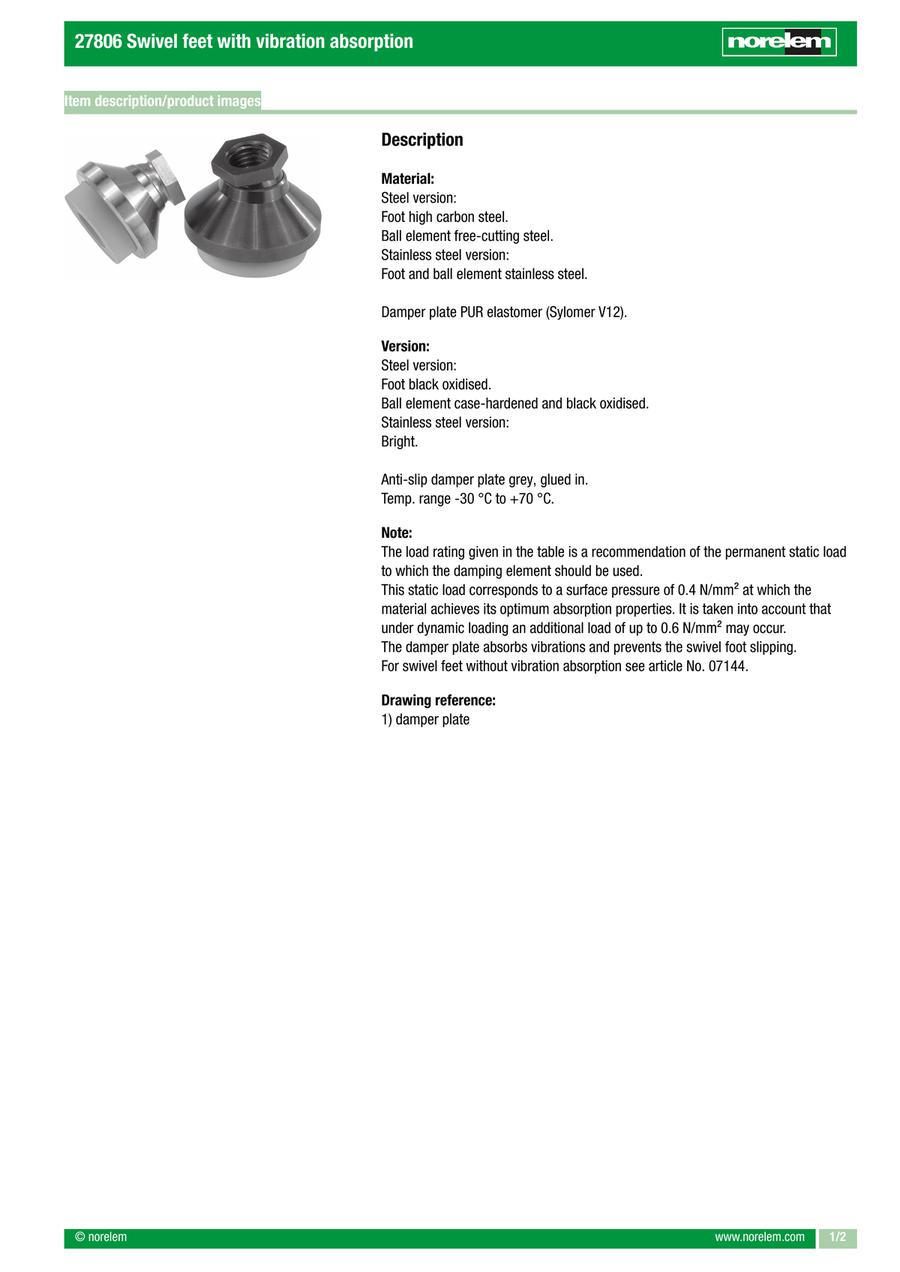

Swivel feet with vibration absorption (27806)
· Application sectors: machine and equipment construction, logistics and assembly
· Damper plate absorbs vibrations and prevents the swivel foot slipping
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
Part Number
|
|---|
| 27806-110 |
| 27806-112 |
| 27806-116 |
| 27806-120 |
| 27806-310 |
| 27806-312 |
| 27806-316 |
| 27806-320 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Body Material | D=plate diameter (mm) | Load rating max. (kN) | Main Body Height h (mm) | D1=Thread (M) (mm) | D3 (mm) | H1 (mm) | H2 (mm) | SW (mm) | T (mm) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
15.61 € | 1 | 4 Days | Steel | 32 | 0.212 | 30 | 10 | 30.5 | 22 | 5 | 17 | 10 | ||
17.47 € | 1 | 4 Days | Steel | 40 | 0.212 | 34 | 12 | 30.5 | 26 | 6 | 19 | 12 | ||
21.02 € | 1 | 4 Days | Steel | 50 | 0.435 | 40 | 16 | 40.5 | 32 | 7 | 24 | 14 | ||
27.81 € | 1 | 4 Days | Steel | 60 | 0.705 | 50 | 20 | 50 | 42 | 8 | 30 | 18 | ||
18.55 € | 1 | 4 Days | Stainless Steel | 32 | 0.212 | 30 | 10 | 30.5 | 22 | 5 | 17 | 10 | ||
20.76 € | 1 | 4 Days | Stainless Steel | 40 | 0.212 | 34 | 12 | 30.5 | 26 | 6 | 19 | 12 | ||
24.61 € | 1 | 4 Days | Stainless Steel | 50 | 0.435 | 40 | 16 | 40.5 | 32 | 7 | 24 | 14 | ||
32.06 € | 1 | 4 Days | Stainless Steel | 60 | 0.705 | 50 | 20 | 50 | 42 | 8 | 30 | 18 |
Loading...
Basic information
| Type | Level Adjusting Base | H3 (by 0 / 0.4 / 0.6 N/mm²)(mm) | 8 / 6.8 / 5.9 |
|---|
Configure
Basic Attributes
-
Body Material
- Stainless Steel
- Steel
-
D=plate diameter(mm)
-
Load rating max.(kN)
-
Main Body Height h(mm)
-
D1=Thread (M)(mm)
-
D3(mm)
-
H1(mm)
- 22
- 26
- 32
- 42
-
H2(mm)
-
SW(mm)
-
T(mm)
- 10
- 12
- 14
- 18
Filter by standard shipping days
-
- All
- 4 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
