Configure

Main material
- High carbon steel
- Stainless steel
B(mm)
- 5
- 6
- 7
- 9
- 11
D=internal diameter(mm)
- 4.5
- 5.5
- 6.6
- 9
- 11
- 13.5
- 17.5
- 22
- 26
- 33
D1(mm)
D2=Outside diameter(mm)
- 25
- 32
- 45
- 58
- 70
F(kN)
- 27.1
- 40
- 43.4
- 65
- 84
- 120
- 148
- 210
- 225
- 330
for screw
- M4
- M5
- M6
- M8
- M10
- M12
- M16
- M20
- M24
- M30
H max.(mm)
- 24
- 29
- 36
- 46
- 54
H min.(mm)
- 20
- 24
- 29
- 37
- 44
M(mm)
- 2
- 2.5
N(mm)
- 4
- 5
- 6
Est. shipping days
- All
- Within 4 working days

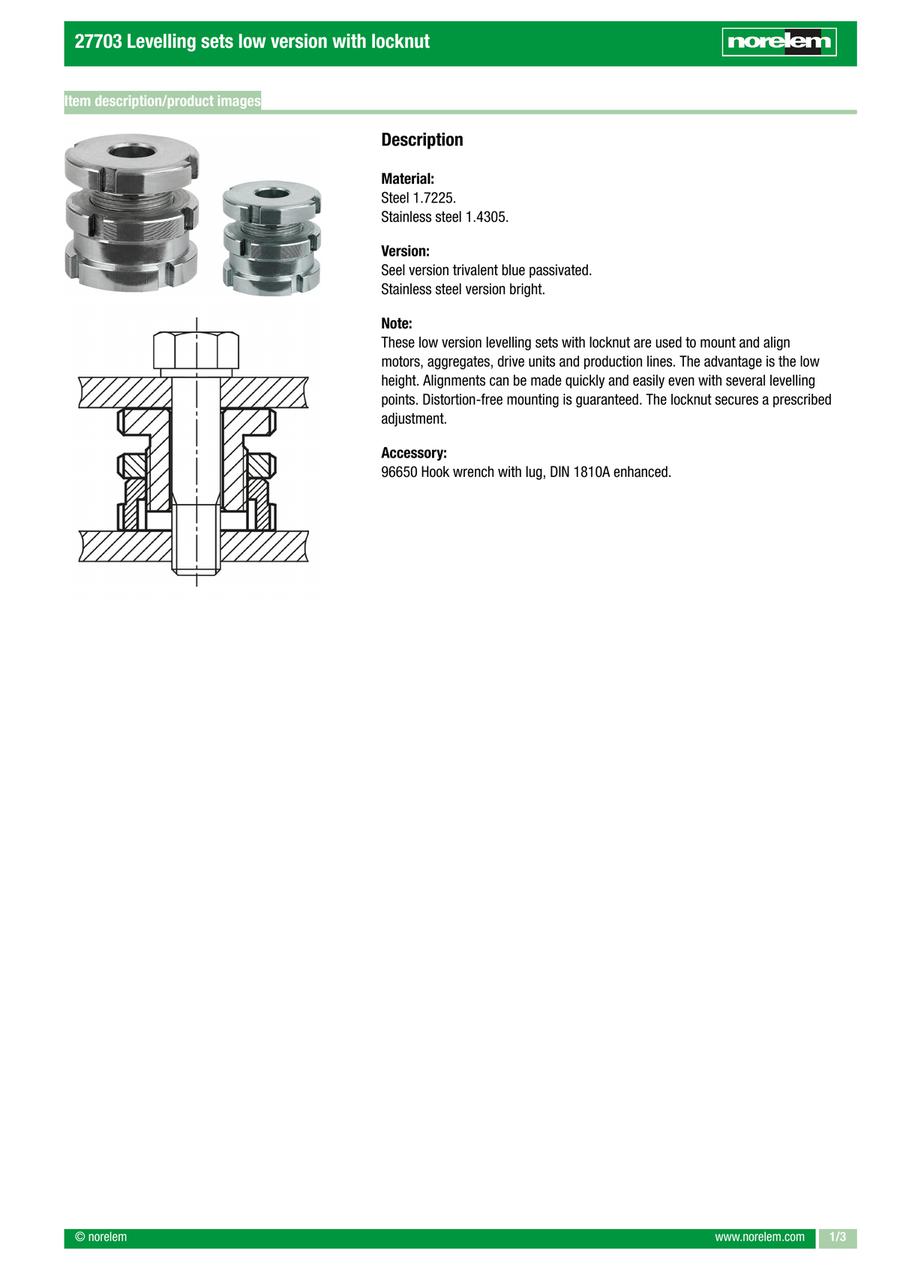

Levelling sets low version with locknut (27703)

Catalog

Part number:

Still undefined. 30 possible part numbers found.

Part number list
More Information
Catalog

Part number list

Number of items

Part number

Main material

(mm)

D=internal diameter

(mm)

D2=Outside diameter

(mm)

(kN)

for screw

H max.

(mm)

H min.

(mm)

Minimum order quantity

High carbon steel	5	4.5	M15x1	25	40	M4	24	20	2	4	1 pieces
Stainless steel	5	4.5	M15x1	25	27.1	M4	24	20	2	4	1 pieces
High carbon steel	5	5.5	M15x1	25	40	M5	24	20	2	4	1 pieces
Stainless steel	5	5.5	M15x1	25	27.1	M5	24	20	2	4	1 pieces
High carbon steel	5	6.6	M15x1	25	40	M6	24	20	2	4	1 pieces
Stainless steel	5	6.6	M15x1	25	27.1	M6	24	20	2	4	1 pieces
High carbon steel	6	6.6	M20x1	32	65	M6	29	24	2	4	1 pieces
Stainless steel	6	6.6	M20x1	32	43.4	M6	29	24	2	4	1 pieces
High carbon steel	6	9	M20x1	32	65	M8	29	24	2	4	1 pieces
Stainless steel	6	9	M20x1	32	43.4	M8	29	24	2	4	1 pieces
High carbon steel	6	11	M20x1	32	65	M10	29	24	2	4	1 pieces
Stainless steel	6	11	M20x1	32	43.4	M10	29	24	2	4	1 pieces
High carbon steel	7	11	M30x1.5	45	120	M10	36	29	2	5	1 pieces
Stainless steel	7	11	M30x1.5	45	84	M10	36	29	2	5	1 pieces
High carbon steel	7	13.5	M30x1.5	45	120	M12	36	29	2	5	1 pieces
Stainless steel	7	13.5	M30x1.5	45	84	M12	36	29	2	5	1 pieces
High carbon steel	7	17.5	M30x1.5	45	120	M16	36	29	2	5	1 pieces
Stainless steel	7	17.5	M30x1.5	45	84	M16	36	29	2	5	1 pieces
High carbon steel	9	17.5	M40x1.5	58	210	M16	46	37	2.5	6	1 pieces
Stainless steel	9	17.5	M40x1.5	58	148	M16	46	37	2.5	6	1 pieces
High carbon steel	9	22	M40x1.5	58	210	M20	46	37	2.5	6	1 pieces
Stainless steel	9	22	M40x1.5	58	148	M20	46	37	2.5	6	1 pieces
High carbon steel	9	26	M40x1.5	58	210	M24	46	37	2.5	6	1 pieces
Stainless steel	9	26	M40x1.5	58	148	M24	46	37	2.5	6	1 pieces
High carbon steel	11	22	M50x1.5	70	330	M20	54	44	2.5	6	1 pieces
Stainless steel	11	22	M50x1.5	70	225	M20	54	44	2.5	6	1 pieces
High carbon steel	11	26	M50x1.5	70	330	M24	54	44	2.5	6	1 pieces
Stainless steel	11	26	M50x1.5	70	225	M24	54	44	2.5	6	1 pieces
High carbon steel	11	33	M50x1.5	70	330	M30	54	44	2.5	6	1 pieces
Stainless steel	11	33	M50x1.5	70	225	M30	54	44	2.5	6	1 pieces

Unit price (excluding VAT)(Unit price including VAT)	Standard shipping days

54.00 € ( 64.26 € )	4 working days
74.53 € ( 88.69 € )	4 working days
54.00 € ( 64.26 € )	4 working days
74.53 € ( 88.69 € )	4 working days
54.00 € ( 64.26 € )	4 working days
74.53 € ( 88.69 € )	4 working days
59.00 € ( 70.21 € )	4 working days
82.90 € ( 98.65 € )	4 working days
60.71 € ( 72.24 € )	4 working days
82.90 € ( 98.65 € )	4 working days
60.71 € ( 72.24 € )	4 working days
82.90 € ( 98.65 € )	4 working days
62.33 € ( 74.17 € )	4 working days
89.31 € ( 106.28 € )	4 working days
62.33 € ( 74.17 € )	4 working days
89.31 € ( 106.28 € )	4 working days
62.33 € ( 74.17 € )	4 working days
89.31 € ( 106.28 € )	4 working days
79.67 € ( 94.81 € )	4 working days
121.45 € ( 144.53 € )	4 working days
79.67 € ( 94.81 € )	4 working days
121.45 € ( 144.53 € )	4 working days
79.67 € ( 94.81 € )	4 working days
121.45 € ( 144.53 € )	4 working days
111.79 € ( 133.03 € )	4 working days
173.18 € ( 206.08 € )	4 working days
111.79 € ( 133.03 € )	4 working days
173.18 € ( 206.08 € )	4 working days
111.79 € ( 133.03 € )	4 working days
173.18 € ( 206.08 € )	4 working days

More Information

Basic information

Basic information

· For mounting motors, aggregates, drive elements and production lines

· Low height

· Alignments can be made easily and precisely even with several mounting points

· Torsion-free mounting

· Locknut secures a prescribed adjustment
