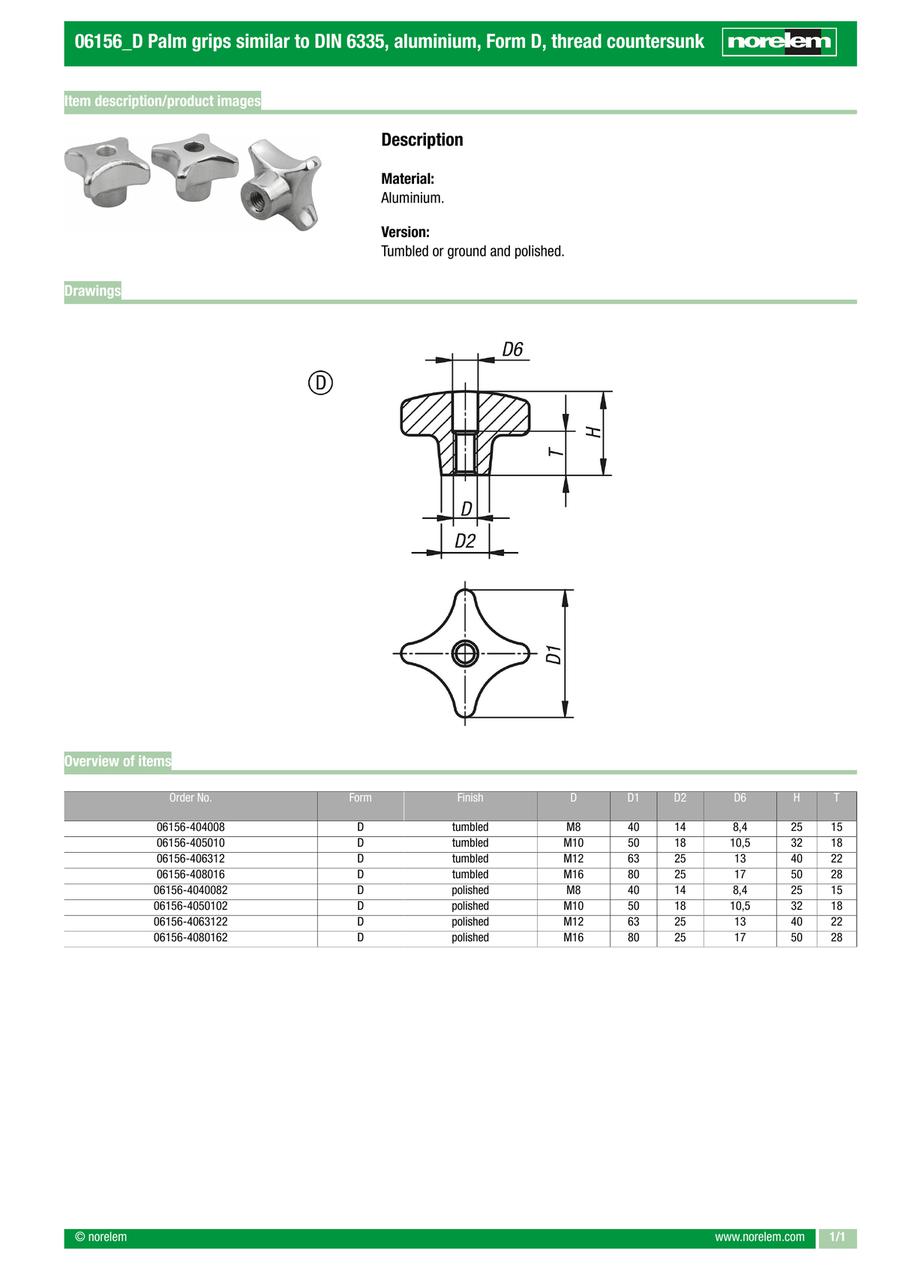

Palm grips similar to DIN 6335 aluminium, Form D, thread countersunk (06156)
· Application fields: machine, plant and fixture construction, toolmaking
· For manually adjusting assemblies, machines and aggregates
· Universally applicable
· Version: vibratory ground or polished
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
Part Number
|
|---|
| 06156-404008 |
| 06156-4040082 |
| 06156-405010 |
| 06156-4050102 |
| 06156-406312 |
| 06156-4063122 |
| 06156-408016 |
| 06156-4080162 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Mounting Section Diameter d(mm) and/or Diameter | Main Body Outer Diameter D (φ) | Surface finish body | D2 (mm) | D6 (mm) | H=Height (mm) | T=thread depth (mm) | |
|---|---|---|---|---|---|---|---|---|---|---|---|
6.49 € | 1 | 4 Days | M8 | 40 | tumbled | 14 | 8.4 | 25 | 15 | ||
10.98 € | 1 | 4 Days | M8 | 40 | polished | 14 | 8.4 | 25 | 15 | ||
7.60 € | 1 | 4 Days | M10 | 50 | tumbled | 18 | 10.5 | 32 | 18 | ||
12.45 € | 1 | 4 Days | M10 | 50 | polished | 18 | 10.5 | 32 | 18 | ||
10.35 € | 1 | 4 Days | M12 | 63 | tumbled | 25 | 13 | 40 | 22 | ||
15.95 € | 1 | 4 Days | M12 | 63 | polished | 25 | 13 | 40 | 22 | ||
15.30 € | 1 | 4 Days | M16 | 80 | tumbled | 25 | 17 | 50 | 28 | ||
21.51 € | 1 | 4 Days | M16 | 80 | polished | 25 | 17 | 50 | 28 |
Loading...
Basic information
| Main Body Material | Aluminum | Form | D |
|---|
Configure
Basic Attributes
-
Mounting Section Diameter d(mm) and/or Diameter
-
Main Body Outer Diameter D(φ)
-
Surface finish body
- polished
- tumbled
-
D2(mm)
-
D6(mm)
-
H=Height(mm)
-
T=thread depth(mm)
Filter by standard shipping days
-
- All
- 4 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
