NORELEM

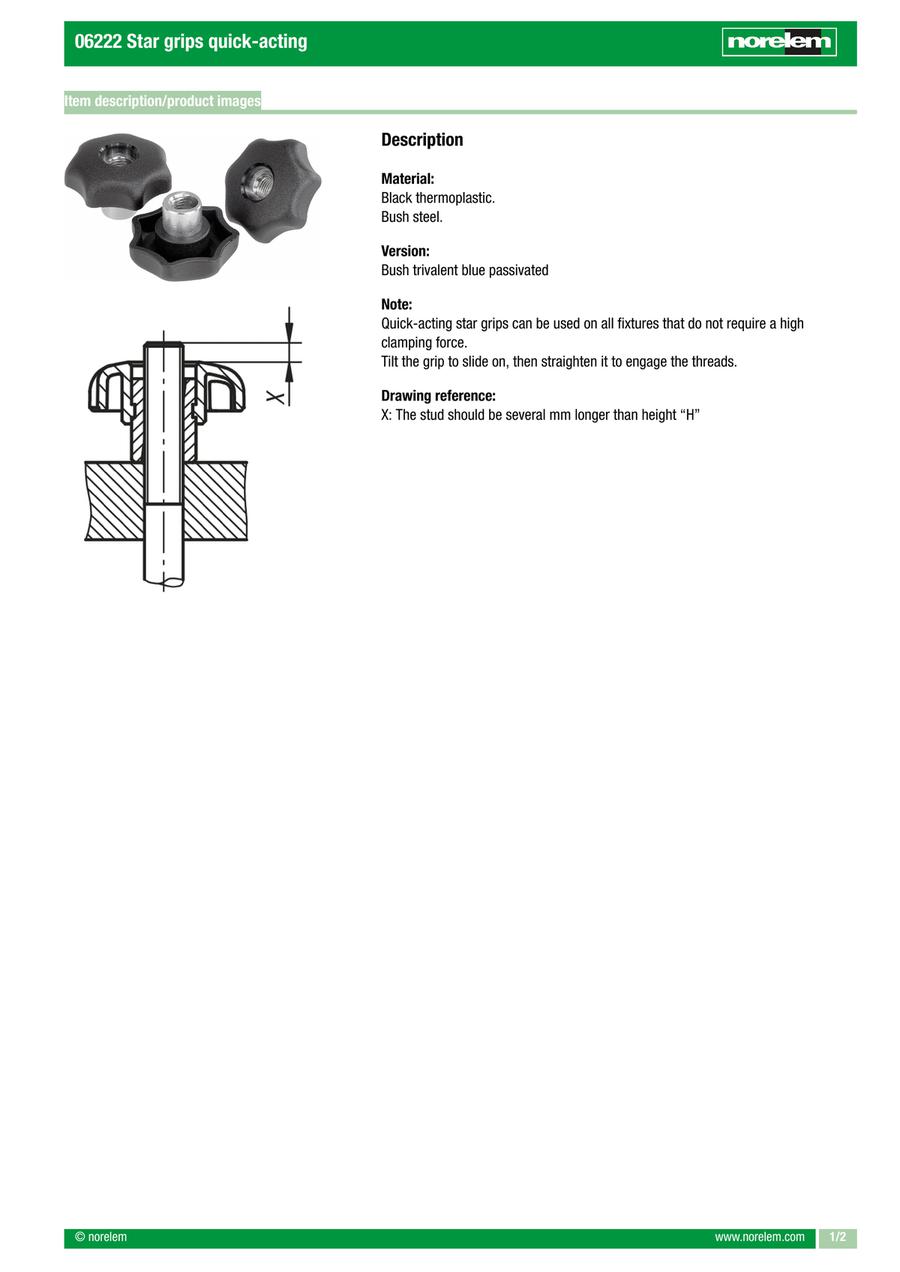

Star grips quick-acting (06222)

Star grips quick-acting (06222)

Part number:

Still undefined. 5 possible part numbers found.
Quantity:

Part number list

Number of items
  • 1
    • Part number
    06222-05
    06222-06
    06222-08
    06222-10
    06222-12

    D

    Outside diameter

    (φ)

    Main Body Height t

    (mm)

    H2

    D2

    (mm)

    D3

    (mm)

    		Minimum order quantity
    M5
    25
    16.6
    9
    10
    5.2
    1 pieces
    M6
    32
    20.6
    11
    13.5
    6.2
    1 pieces
    M8
    40
    24.5
    13
    13.5
    8.3
    1 pieces
    M10
    50
    31.2
    17
    19
    10.3
    1 pieces
    M12
    63
    39.3
    21
    19
    12.7
    1 pieces
    Unit price (excluding VAT)(Unit price including VAT)
    Standard shipping days
    6.54 €
    ( 7.78 € )
    4 working days
    6.58 €
    ( 7.83 € )
    4 working days
    6.68 €
    ( 7.95 € )
    4 working days
    7.22 €
    ( 8.59 € )
    4 working days
    9.73 €
    ( 11.58 € )
    4 working days
  • 1

    • More Information

    Basic information

    · Can be used as a clamping, retaining and fastening element

    · Application fields: machine, plant and fixture construction, toolmaking

    · For manually adjusting assemblies, machines and aggregates

    · Quick-clamping function: for fixtures that do not require a high clamping force

    · Different thread sizes
