Configure

D
- M4
- M5
- M6
- M8
Outside diameter(φ)
- 21
- 25
- 33
Main Body Height t(mm)
- 21
- 25
- 33
Steel code
- 1.4305
Component material
- Stainless steel
- Steel
Colour Cap
Size(mm)
- 1
- 2
- 3
D2(mm)
- 12
- 14
- 19
D3(mm)
- 19
- 23
- 31
H1(Nm)
- 10
- 12
- 15
T=thread depth(mm)
- 10
- 14
Est. shipping days
- All
- Within 4 working days

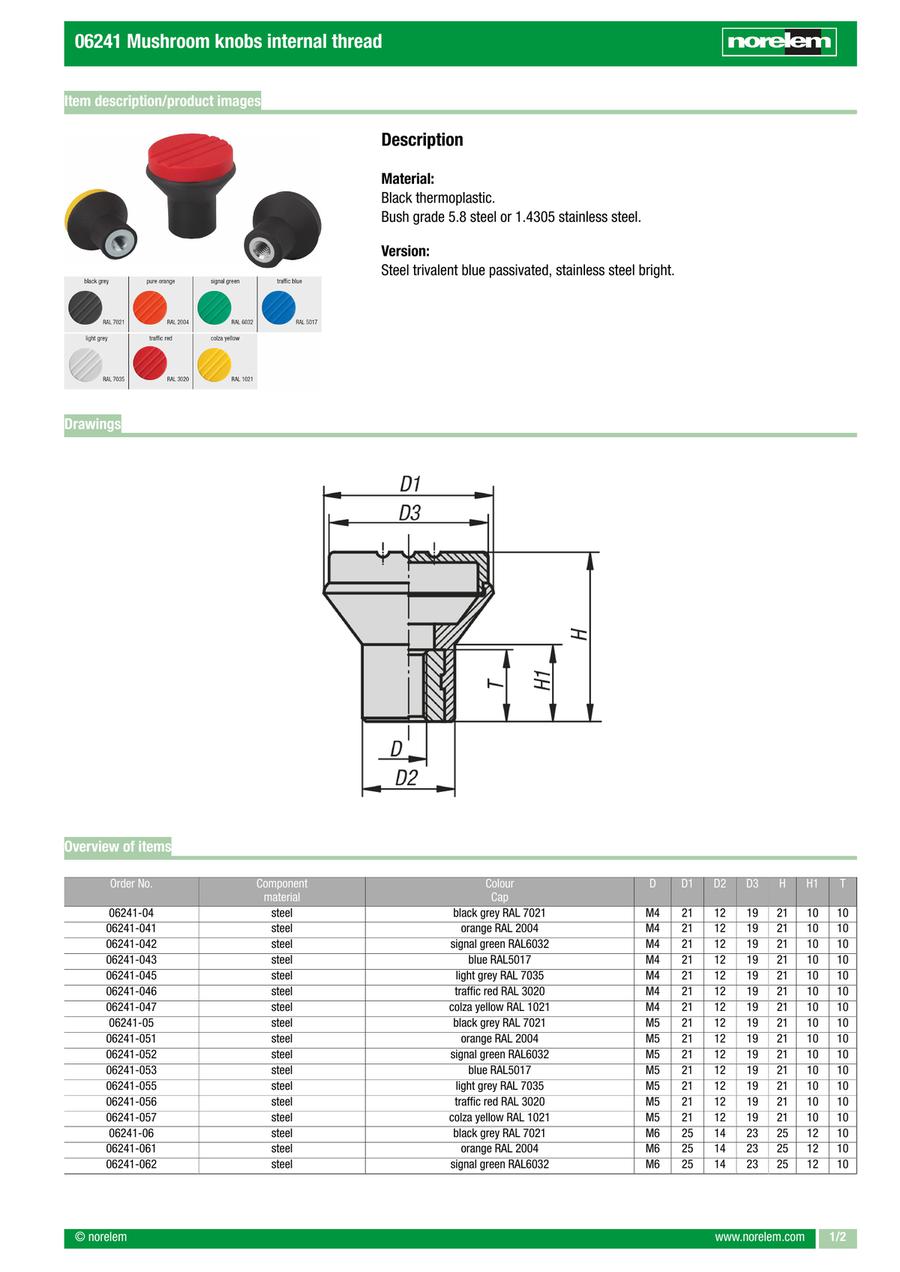

Mushroom knobs internal thread (06241)

Catalog

Part number:

Still undefined. 56 possible part numbers found.

Part number list
More Information
Catalog

Part number list

Number of items

Part number

Outside diameter

(φ)

Main Body Height t

(mm)

Steel code

Component material

Colour Cap

Size

(mm)

(Nm)

T=thread depth

(mm)

Minimum order quantity

M4	21	21	-	Stainless steel	Black grey RAL 7021	1	12	19	10	10	1 pieces
M5	21	21	-	Stainless steel	Black grey RAL 7021	1	12	19	10	10	1 pieces
M6	25	25	-	Stainless steel	Black grey RAL 7021	2	14	23	12	10	1 pieces
M8	33	33	-	Stainless steel	Black grey RAL 7021	3	19	31	15	14	1 pieces
M4	21	21	1.4305	Stainless steel	Orange RAL 2004	1	12	19	10	10	1 pieces
M4	21	21	1.4305	Stainless steel	Signal green RAL6032	1	12	19	10	10	1 pieces
M4	21	21	1.4305	Stainless steel	Blue RAL5017	1	12	19	10	10	1 pieces
M4	21	21	-	Stainless steel	Light grey RAL 7035	1	12	19	10	10	1 pieces
M4	21	21	-	Stainless steel	Traffic red RAL 3020	1	12	19	10	10	1 pieces
M4	21	21	-	Stainless steel	Colza yellow RAL 1021	1	12	19	10	10	1 pieces
M5	21	21	1.4305	Stainless steel	Orange RAL 2004	1	12	19	10	10	1 pieces
M5	21	21	1.4305	Stainless steel	Signal green RAL6032	1	12	19	10	10	1 pieces
M5	21	21	1.4305	Stainless steel	Blue RAL5017	1	12	19	10	10	1 pieces
M5	21	21	-	Stainless steel	Light grey RAL 7035	1	12	19	10	10	1 pieces
M5	21	21	-	Stainless steel	Traffic red RAL 3020	1	12	19	10	10	1 pieces
M5	21	21	-	Stainless steel	Colza yellow RAL 1021	1	12	19	10	10	1 pieces
M6	25	25	1.4305	Stainless steel	Orange RAL 2004	2	14	23	12	10	1 pieces
M6	25	25	1.4305	Stainless steel	Signal green RAL6032	2	14	23	12	10	1 pieces
M6	25	25	1.4305	Stainless steel	Blue RAL5017	2	14	23	12	10	1 pieces
M6	25	25	-	Stainless steel	Light grey RAL 7035	2	14	23	12	10	1 pieces
M6	25	25	-	Stainless steel	Traffic red RAL 3020	2	14	23	12	10	1 pieces
M6	25	25	-	Stainless steel	Colza yellow RAL 1021	2	14	23	12	10	1 pieces
M8	33	33	1.4305	Stainless steel	Orange RAL 2004	3	19	31	15	14	1 pieces
M8	33	33	1.4305	Stainless steel	Signal green RAL6032	3	19	31	15	14	1 pieces
M8	33	33	1.4305	Stainless steel	Blue RAL5017	3	19	31	15	14	1 pieces
M8	33	33	-	Stainless steel	Light grey RAL 7035	3	19	31	15	14	1 pieces
M8	33	33	-	Stainless steel	Traffic red RAL 3020	3	19	31	15	14	1 pieces
M8	33	33	-	Stainless steel	Colza yellow RAL 1021	3	19	31	15	14	1 pieces
M4	21	21	-	Steel	Black grey RAL 7021	1	12	19	10	10	1 pieces
M5	21	21	-	Steel	Black grey RAL 7021	1	12	19	10	10	1 pieces
M6	25	25	-	Steel	Black grey RAL 7021	2	14	23	12	10	1 pieces
M8	33	33	-	Steel	Black grey RAL 7021	3	19	31	15	14	1 pieces
M4	21	21	-	Steel	Orange RAL 2004	1	12	19	10	10	1 pieces
M4	21	21	-	Steel	Signal green RAL6032	1	12	19	10	10	1 pieces
M4	21	21	-	Steel	Blue RAL5017	1	12	19	10	10	1 pieces
M4	21	21	-	Steel	Light grey RAL 7035	1	12	19	10	10	1 pieces
M4	21	21	-	Steel	Traffic red RAL 3020	1	12	19	10	10	1 pieces
M4	21	21	-	Steel	Colza yellow RAL 1021	1	12	19	10	10	1 pieces
M5	21	21	-	Steel	Orange RAL 2004	1	12	19	10	10	1 pieces
M5	21	21	-	Steel	Signal green RAL6032	1	12	19	10	10	1 pieces
M5	21	21	-	Steel	Blue RAL5017	1	12	19	10	10	1 pieces
M5	21	21	-	Steel	Light grey RAL 7035	1	12	19	10	10	1 pieces
M5	21	21	-	Steel	Traffic red RAL 3020	1	12	19	10	10	1 pieces
M5	21	21	-	Steel	Colza yellow RAL 1021	1	12	19	10	10	1 pieces
M6	25	25	-	Steel	Orange RAL 2004	2	14	23	12	10	1 pieces
M6	25	25	-	Steel	Signal green RAL6032	2	14	23	12	10	1 pieces
M6	25	25	-	Steel	Blue RAL5017	2	14	23	12	10	1 pieces
M6	25	25	-	Steel	Light grey RAL 7035	2	14	23	12	10	1 pieces
M6	25	25	-	Steel	Traffic red RAL 3020	2	14	23	12	10	1 pieces
M6	25	25	-	Steel	Colza yellow RAL 1021	2	14	23	12	10	1 pieces
M8	33	33	-	Steel	Orange RAL 2004	3	19	31	15	14	1 pieces
M8	33	33	-	Steel	Signal green RAL6032	3	19	31	15	14	1 pieces
M8	33	33	-	Steel	Blue RAL5017	3	19	31	15	14	1 pieces
M8	33	33	-	Steel	Light grey RAL 7035	3	19	31	15	14	1 pieces
M8	33	33	-	Steel	Traffic red RAL 3020	3	19	31	15	14	1 pieces
M8	33	33	-	Steel	Colza yellow RAL 1021	3	19	31	15	14	1 pieces

Unit price (excluding VAT)(Unit price including VAT)	Standard shipping days

2.17 € ( 2.58 € )	4 working days
2.17 € ( 2.58 € )	4 working days
3.09 € ( 3.68 € )	4 working days
4.43 € ( 5.27 € )	4 working days
2.17 € ( 2.58 € )	4 working days
2.17 € ( 2.58 € )	4 working days
2.17 € ( 2.58 € )	4 working days
2.17 € ( 2.58 € )	4 working days
2.17 € ( 2.58 € )	4 working days
2.17 € ( 2.58 € )	4 working days
2.17 € ( 2.58 € )	4 working days
2.17 € ( 2.58 € )	4 working days
2.17 € ( 2.58 € )	4 working days
2.17 € ( 2.58 € )	4 working days
2.17 € ( 2.58 € )	4 working days
2.17 € ( 2.58 € )	4 working days
3.09 € ( 3.68 € )	4 working days
3.09 € ( 3.68 € )	4 working days
3.09 € ( 3.68 € )	4 working days
3.09 € ( 3.68 € )	4 working days
3.09 € ( 3.68 € )	4 working days
3.09 € ( 3.68 € )	4 working days
4.43 € ( 5.27 € )	4 working days
4.43 € ( 5.27 € )	4 working days
4.43 € ( 5.27 € )	4 working days
4.43 € ( 5.27 € )	4 working days
4.43 € ( 5.27 € )	4 working days
4.43 € ( 5.27 € )	4 working days
1.45 € ( 1.73 € )	4 working days
1.45 € ( 1.73 € )	4 working days
2.04 € ( 2.43 € )	4 working days
2.99 € ( 3.56 € )	4 working days
1.45 € ( 1.73 € )	4 working days
1.45 € ( 1.73 € )	4 working days
1.45 € ( 1.73 € )	4 working days
1.45 € ( 1.73 € )	4 working days
1.45 € ( 1.73 € )	4 working days
1.45 € ( 1.73 € )	4 working days
1.45 € ( 1.73 € )	4 working days
1.45 € ( 1.73 € )	4 working days
1.45 € ( 1.73 € )	4 working days
1.45 € ( 1.73 € )	4 working days
1.45 € ( 1.73 € )	4 working days
1.45 € ( 1.73 € )	4 working days
2.04 € ( 2.43 € )	4 working days
2.04 € ( 2.43 € )	4 working days
2.04 € ( 2.43 € )	4 working days
2.04 € ( 2.43 € )	4 working days
2.04 € ( 2.43 € )	4 working days
2.04 € ( 2.43 € )	4 working days
2.99 € ( 3.56 € )	4 working days
2.99 € ( 3.56 € )	4 working days
2.99 € ( 3.56 € )	4 working days
2.99 € ( 3.56 € )	4 working days
2.99 € ( 3.56 € )	4 working days
2.99 € ( 3.56 € )	4 working days

More Information

Basic information

Basic information

· Can be used as a clamping, retaining and fastening element

· Application fields: machine, plant and fixture construction, toolmaking

· For manually adjusting assemblies, machines and aggregates

· Various colours available
