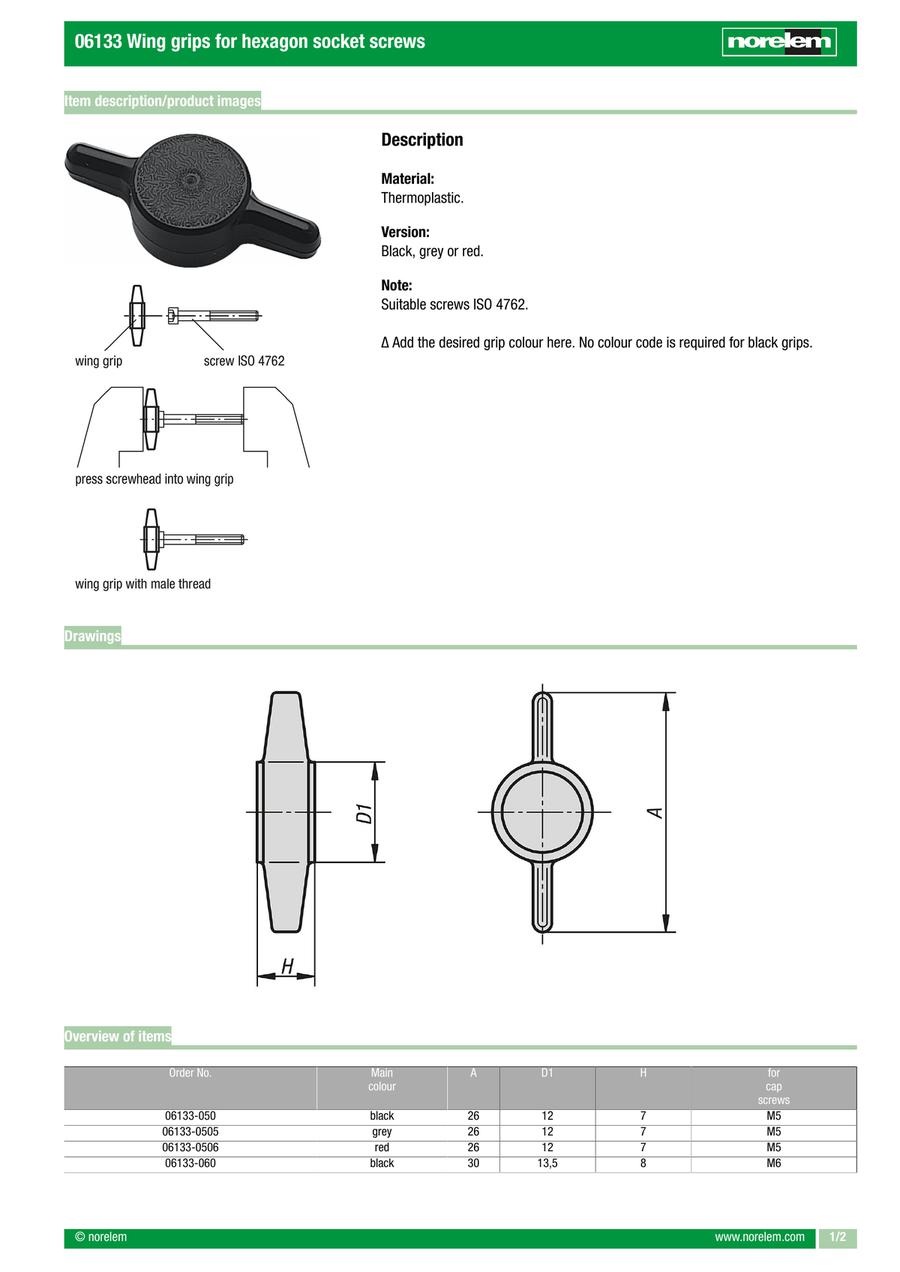

Wing grips for hexagon socket screws (06133)
· Application fields: machine, plant and fixture construction, toolmaking
· For manually adjusting assemblies, machines and aggregates
· Especially for use with ISO 4762 screws
· Colours: black, grey and red
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
Part Number
|
|---|
| 06133-050 |
| 06133-060 |
| 06133-080 |
| 06133-0505 |
| 06133-0506 |
| 06133-0605 |
| 06133-0606 |
| 06133-0805 |
| 06133-0806 |
| 06133-100 |
| 06133-1005 |
| 06133-1006 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Main Body Height t (mm) | Main colour | A=Handle length (mm) | D1 (mm) | for SK screw (mm) | |
|---|---|---|---|---|---|---|---|---|---|
1.30 € | 1 | 4 Days | 7 | Black | 26 | 12 | M5 | ||
1.34 € | 1 | 4 Days | 8 | Black | 30 | 13.5 | M6 | ||
1.77 € | 1 | 4 Days | 10 | Black | 38 | 17 | M8 | ||
1.30 € | 1 | 4 Days | 7 | Grey | 26 | 12 | M5 | ||
1.30 € | 1 | 4 Days | 7 | Red | 26 | 12 | M5 | ||
1.34 € | 1 | 4 Days | 8 | Grey | 30 | 13.5 | M6 | ||
1.34 € | 1 | 4 Days | 8 | Red | 30 | 13.5 | M6 | ||
1.77 € | 1 | 4 Days | 10 | Grey | 38 | 17 | M8 | ||
1.77 € | 1 | 4 Days | 10 | Red | 38 | 17 | M8 | ||
1.77 € | 1 | 4 Days | 12.5 | Black | 45 | 20 | M10 | ||
1.77 € | 1 | 4 Days | 12.5 | Grey | 45 | 20 | M10 | ||
1.77 € | 1 | 4 Days | 12.5 | Red | 45 | 20 | M10 |
Loading...
Basic information
| Main Body Type | Special Type | Main Body Material | Other | Main material | Thermoplastic |
|---|
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
