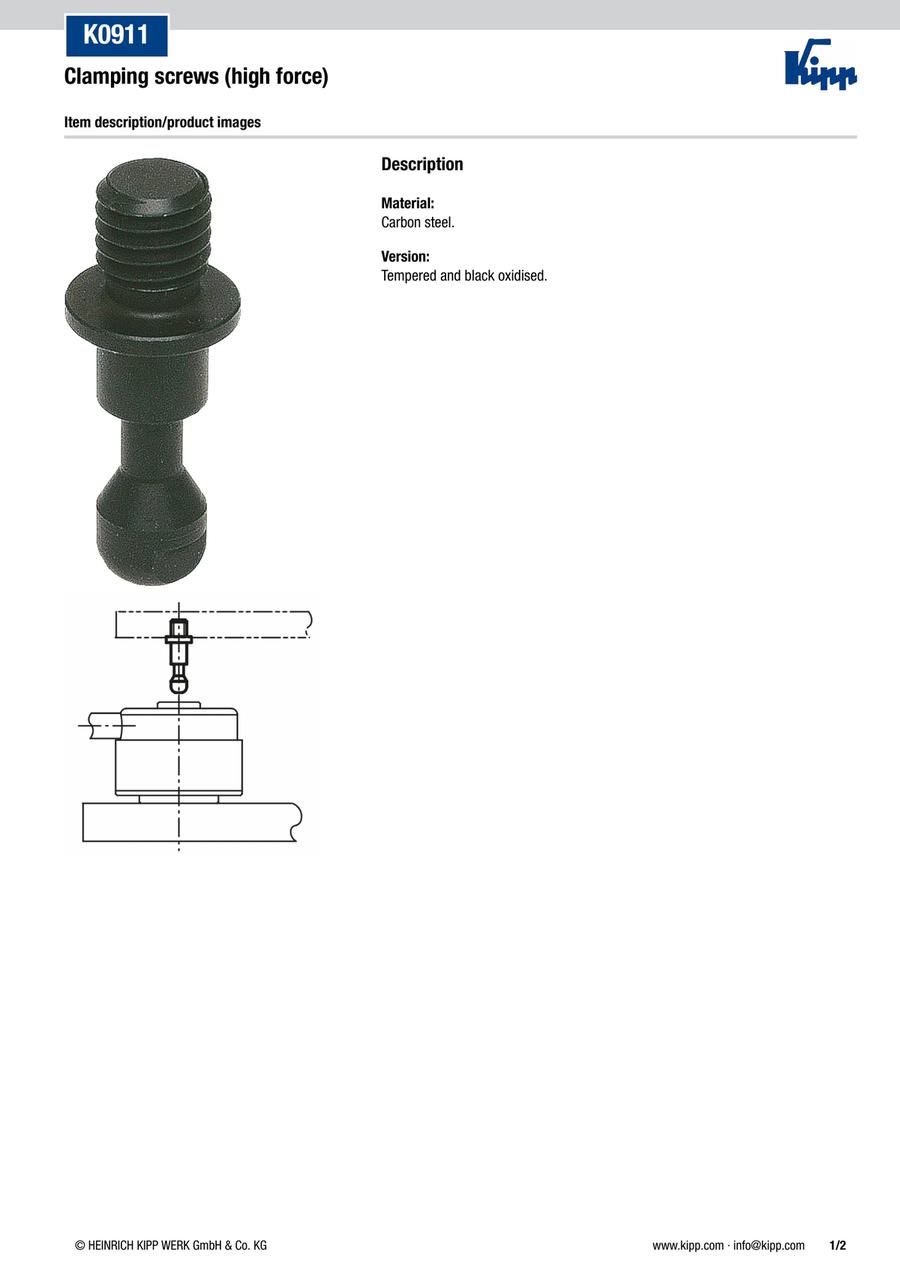

Clamping screws (high force) (K0911)
· Screwed in from below
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Part Number
|
|---|
| K0911.1412013 |
| K0911.1416017 |
| K0911.1516017 |
| K0911.1520021 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | D (mm) | E (mm) | K (mm) | A (mm) | B=Outside diameter (mm) | C (mm) | F (mm) | G (mm) | H (mm) | J (mm) | Suitable for | Weight (kg) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
29.62 € | 1 | 4 Days | 20 | 38 | 4 | 12 | M12 | 13 | 2 | 21.5 | 6.5 | 10 | 04400-506501 | 0.0400 | ||
29.62 € | 1 | 4 Days | 20 | 38 | 4 | 12 | M16 | 17 | 2 | 21.5 | 6.5 | 10 | 04400-506501 | 0.0517 | ||
33.99 € | 1 | 4 Days | 25 | 48 | 5 | 16 | M16 | 17 | 2.5 | 28 | 9.5 | 13 | 04400-638001 | 0.0900 | ||
33.99 € | 1 | 4 Days | 25 | 48 | 5 | 16 | M20 | 21 | 2.5 | 28 | 9.5 | 13 | 04400-638001 | 0.1164 |
Loading...
Basic information
| Item | Clamping Screw | Main material | High carbon steel | RoHS | true |
|---|
Configure
Basic Attributes
-
D(mm)
-
E(mm)
- 38
- 48
-
K(mm)
-
A(mm)
- 12
- 16
-
B=Outside diameter(mm)
- M12
- M16
- M20
-
C(mm)
-
F(mm)
-
G(mm)
-
H(mm)
-
J(mm)
-
Suitable for
- 04400-638001
- 04400-506501
-
Weight(kg)
-
Type
-
Filter by CAD data type
- 2D
- 3D
Filter by standard shipping days
-
- All
- 4 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
