    KIPP

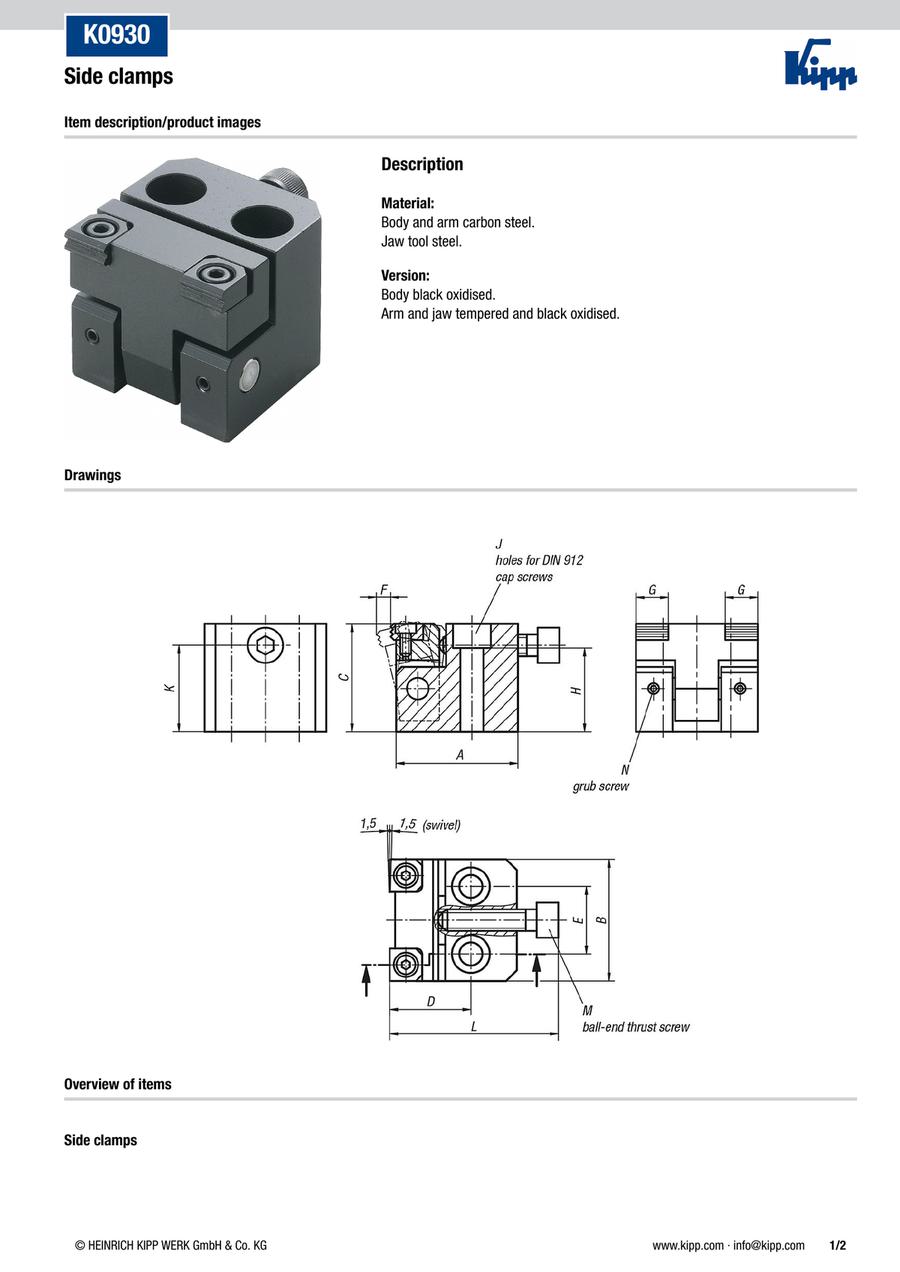

    Side clamps (K0930)

    Side clamps (K0930)

    Part number:

    Still undefined. 3 possible part numbers found.
    Quantity:

    Part number list

    Number of items
  • 1
    • Part number
    K0930.080400
    K0930.100500
    K0930.120600

    B=Width

    (mm)

    A=Length

    (mm)

    D

    (mm)

    E

    (mm)

    K

    (mm)

    L

    (mm)

    Tightening torque

    (Nm)

    C=Height

    (mm)

    F

    (mm)

    F=Retaining force

    (N)

    G

    (mm)

    H

    (mm)

    J

    (mm)

    M

    (mm)

    N

    (mm)

    Weight

    (kg)

    		Minimum order quantity
    45
    45
    30
    25
    32
    62.5
    25
    40
    5.3
    15000
    12
    31
    M8
    M8x35
    M4x4
    0.5352
    1 pieces
    55
    55
    40
    30
    40
    74
    50
    50
    7.1
    27000
    16
    39
    M10
    M10x40
    M4x4
    0.9861
    1 pieces
    65
    65
    45
    35
    48
    91
    90
    60
    8
    38000
    20
    47
    M12
    M12x50
    M5x5
    1.7090
    1 pieces
    Unit price (excluding VAT)(Unit price including VAT)
    Standard shipping days
    328.19 €
    ( 390.55 € )
    4 working days
    371.45 €
    ( 442.03 € )
    4 working days
    445.05 €
    ( 529.61 € )
    4 working days
  • 1

    • More Information

    Basic information

    · Workpiece clamping with positive down force

    · Clamping jaws hardened

    · Threaded pins prevent backwards slippage during the clamping process

    · Double clamping point
