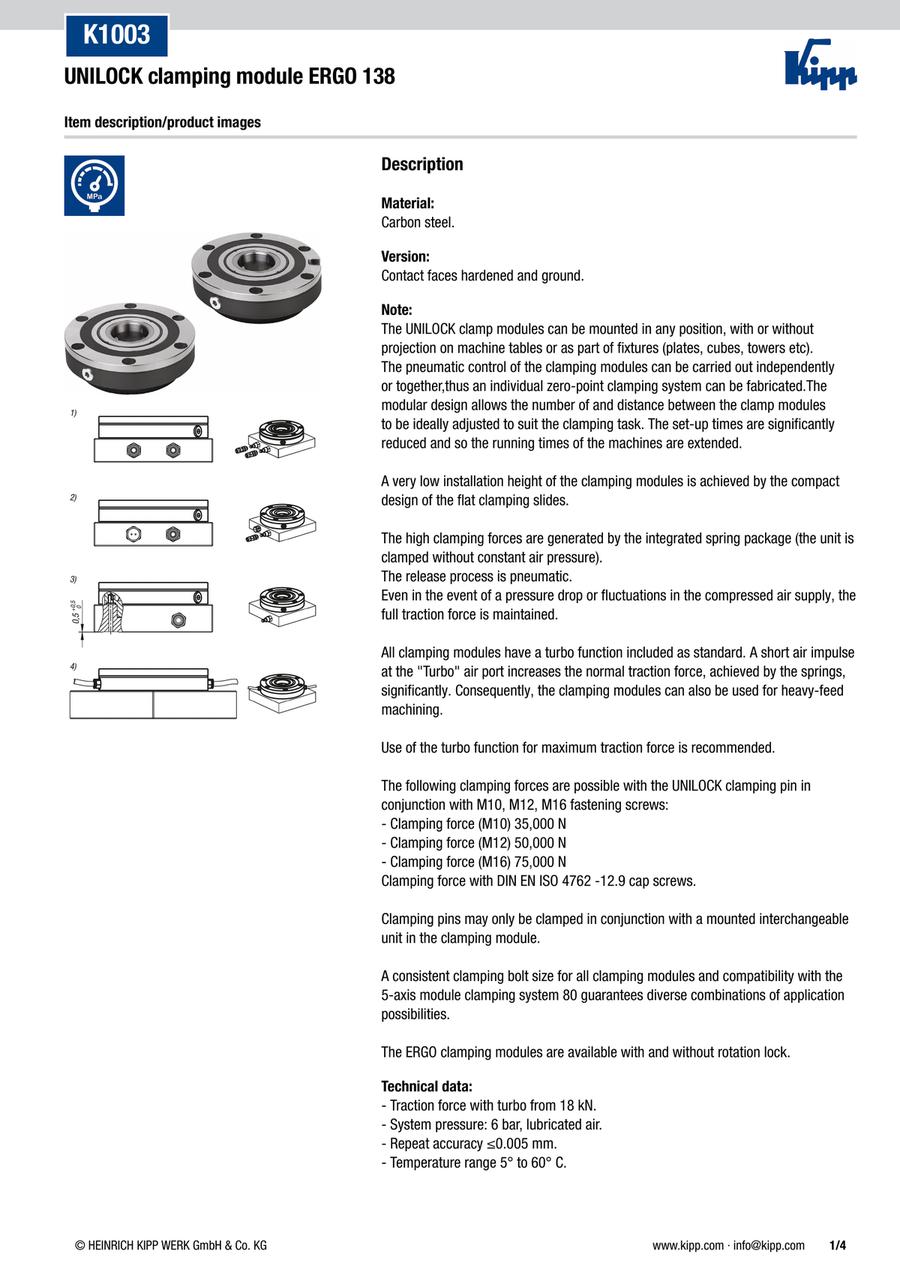

UNILOCK clamping module ERGO 138 (K1003)
· Zero point clamping system
· Base element for system construction
· Positive locking
· Extremely high repeat accuracy
· Base element for system construction
· Positive locking
· Extremely high repeat accuracy
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Part Number
|
|---|
| K1003.138280 |
| K1003.138281 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Form | Form definition | Weight (kg) | |
|---|---|---|---|---|---|---|---|
907.35 € | 1 | 4 Days | A | without rotation lock | 3.56 | ||
1,056.85 € | 1 | 4 Days | B | with rotation lock | 3.52 |
Loading...
Basic information
| Main material | High carbon steel | Surface finish body | hardened and ground | Version 1 | UNILOCK |
|---|---|---|---|---|---|
| Version 2 | ERGO 138 | Item | Clamping Module | Operating pressure(MPa) | 6 |
| Retraction force with turbo(kN) | 18 |
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
