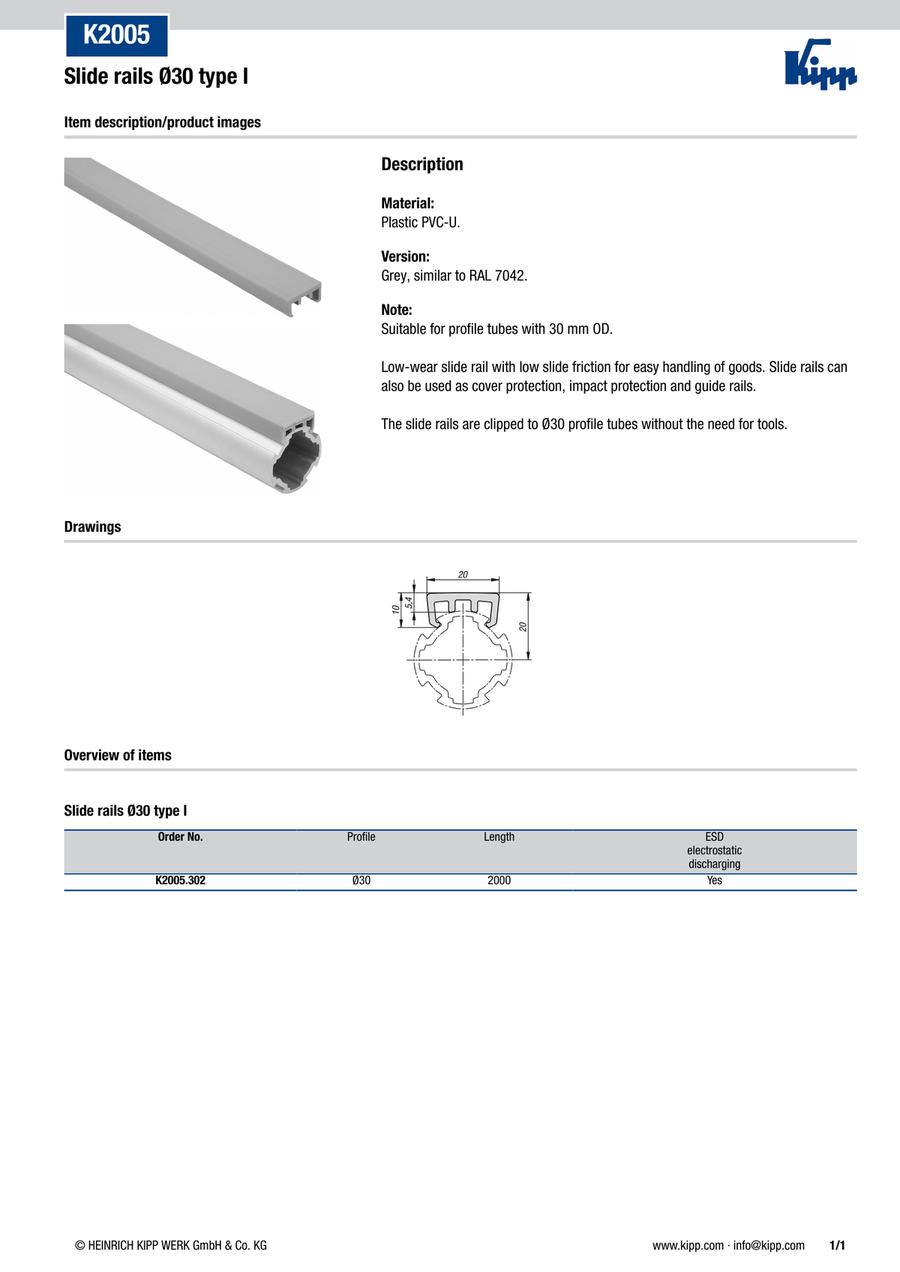

Slide rails Ø30 type I (K2005)
· Lightweight version for weight-optimised structures
· Simply clipped onto Ø30 profile tubes without tools
· Low wear slide rails
· Low glide friction
· Also suitable as cover protection, impact protection and guide rails
· Simply clipped onto Ø30 profile tubes without tools
· Low wear slide rails
· Low glide friction
· Also suitable as cover protection, impact protection and guide rails
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
K2005.302
Basic information
| Main material | plastic | L=Length(mm) | 2000 | Profile | Ø30 |
|---|---|---|---|---|---|
| Version 2 | Type I | Item | Slide Rail | ESD electrostatic discharging | yes |
| Main colour | grey | Weight(kg) | 0.1500 | RoHS | true |
| PL Edelstahl | false |
This page is Slide rails Ø30 type I (K2005), part number K2005.302.
You can find the detail information about specifications and dimensions on part number K2005.302.
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
