MAEDLER

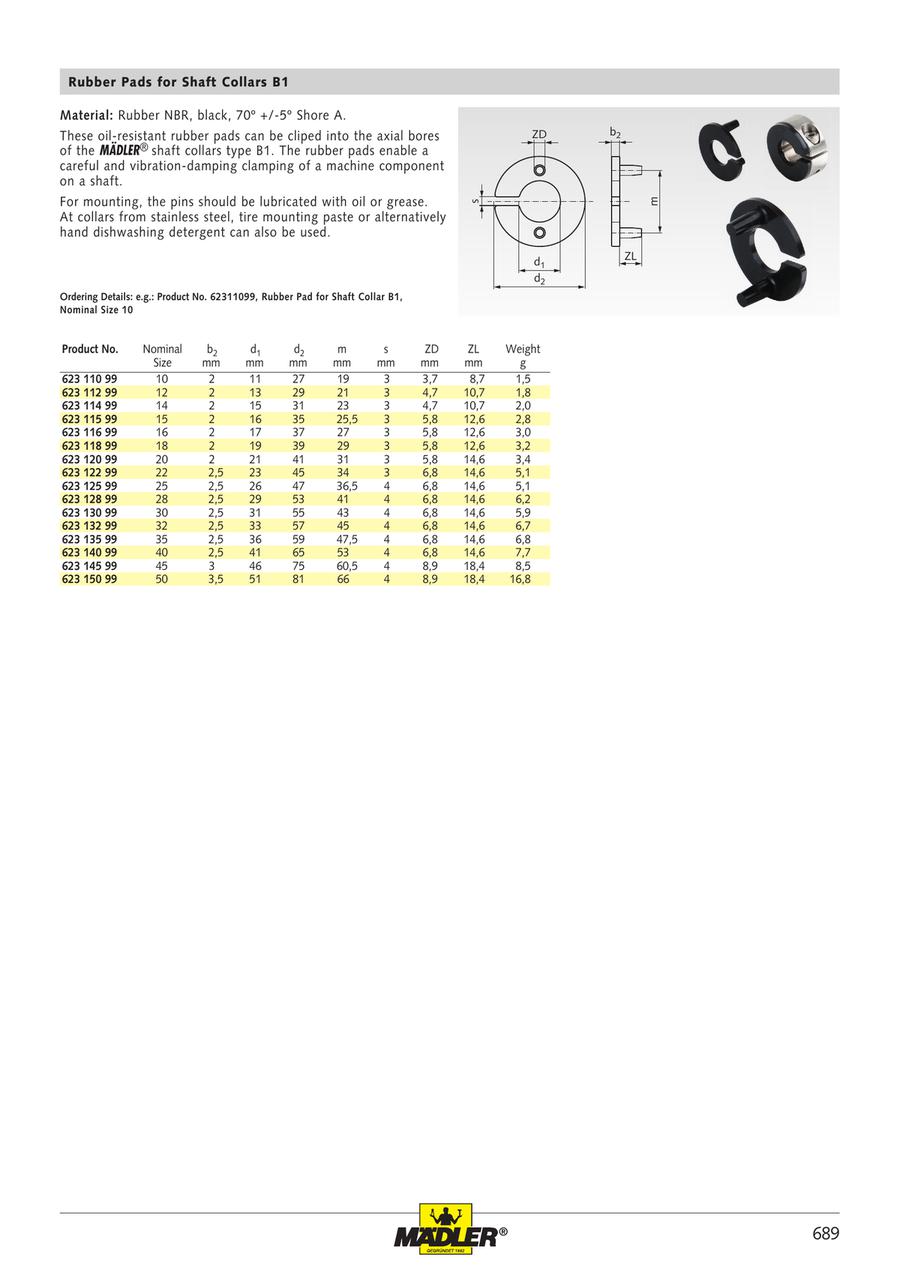

Rubber Pads for Shaft Collars B1

Rubber Pads for Shaft Collars B1

Part number:

Still undefined. 16 possible part numbers found.
Quantity:

Part number list

Number of items
  • 1
    • Part number
    62311099
    62311299
    62311499
    62311599
    62311699
    62311899
    62312099
    62312299
    62312599
    62312899
    62313099
    62313299
    62313599
    62314099
    62314599
    62315099

    Nominal size

    b2

    (mm)

    d1

    (mm)

    d2

    (mm)

    m

    (mm)

    s

    (mm)

    ZD

    (mm)

    ZL

    (mm)

    Weight

    (g)

    		Minimum order quantity
    10
    2
    11
    27
    19
    3
    3.7
    8.7
    1.5
    1 pieces
    12
    2
    13
    29
    21
    3
    4.7
    10.7
    1.8
    1 pieces
    14
    2
    15
    31
    23
    3
    4.7
    10.7
    2
    1 pieces
    15
    2
    16
    35
    25.5
    3
    5.8
    12.6
    2.8
    1 pieces
    16
    2
    17
    37
    27
    3
    5.8
    12.6
    3
    1 pieces
    18
    2
    19
    39
    29
    3
    5.8
    12.6
    3.2
    1 pieces
    20
    2
    21
    41
    31
    3
    5.8
    14.6
    3.4
    1 pieces
    22
    2.5
    23
    45
    34
    3
    6.8
    14.6
    5.1
    1 pieces
    25
    2.5
    26
    47
    36.5
    4
    6.8
    14.6
    5.1
    1 pieces
    28
    2.5
    29
    53
    41
    4
    6.8
    14.6
    6.2
    1 pieces
    30
    2.5
    31
    55
    43
    4
    6.8
    14.6
    5.9
    1 pieces
    32
    2.5
    33
    57
    45
    4
    6.8
    14.6
    6.7
    1 pieces
    35
    2.5
    36
    59
    47.5
    4
    6.8
    14.6
    6.8
    1 pieces
    40
    2.5
    41
    65
    53
    4
    6.8
    14.6
    7.7
    1 pieces
    45
    3
    46
    75
    60.5
    4
    8.9
    18.4
    8.5
    1 pieces
    50
    3.5
    51
    81
    66
    4
    8.9
    18.4
    16.8
    1 pieces
    Unit price (excluding VAT)(Unit price including VAT)
    Standard shipping days
    0.68 €
    ( 0.81 € )
    4 working days
    0.68 €
    ( 0.81 € )
    4 working days
    0.85 €
    ( 1.01 € )
    4 working days
    0.85 €
    ( 1.01 € )
    4 working days
    0.95 €
    ( 1.13 € )
    4 working days
    1.15 €
    ( 1.37 € )
    4 working days
    1.15 €
    ( 1.37 € )
    4 working days
    2.11 €
    ( 2.51 € )
    4 working days
    2.19 €
    ( 2.61 € )
    4 working days
    2.39 €
    ( 2.84 € )
    4 working days
    2.39 €
    ( 2.84 € )
    4 working days
    2.39 €
    ( 2.84 € )
    4 working days
    2.48 €
    ( 2.95 € )
    4 working days
    2.69 €
    ( 3.20 € )
    4 working days
    2.94 €
    ( 3.50 € )
    4 working days
    3.36 €
    ( 4.00 € )
    4 working days
  • 1

    • More Information

    Basic information

    Material: Rubber NBR, black, 70º +/-5º Shore A.
    These oil-resistant rubber pads can be cliped into the axial bores of the MÄDLER® shaft collars type B1. The rubber pads enable a careful and vibration-damping clamping of a machine component on a shaft.
    For mounting, the pins should be lubricated with oil or grease. At collars from stainless steel, tire mounting paste or alternatively hand dishwashing detergent can also be used.
