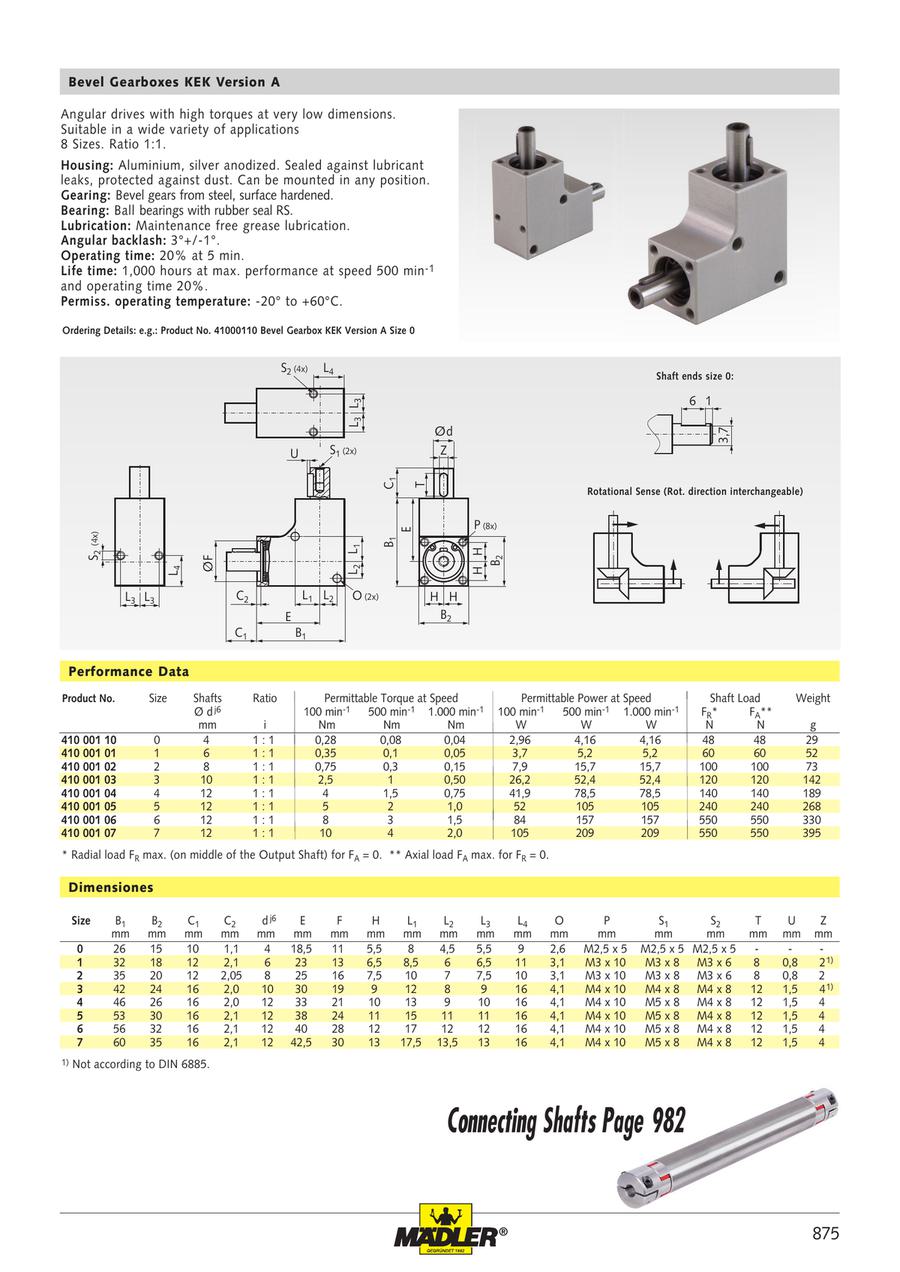

Bevel Gearboxes KEK Version A
- Volume Discount
Suitable in a wide variety of applications
8 Sizes. Ratio 1:1.
Housing: Aluminium, silver anodized. Sealed against lubricant leaks, protected against dust. Can be mounted in any position.
Gearing: Bevel gears from steel, surface hardened.
Bearing: Ball bearings with rubber seal RS.
Lubrication: Maintenance free grease lubrication.
Angular backlash: 3°+/-1°.
Operating time: 20% at 5 min.
Life time: 1,000 hours at max. performance at speed 500 min-1 and operating time 20%.
Permissable operating temperature: -20° to +60°C.
* Not according to DIN 6885.
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
Part Number
|
|---|
| 41000101 |
| 41000102 |
| 41000103 |
| 41000104 |
| 41000105 |
| 41000106 |
| 41000107 |
| 41000110 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Size | Shaft diameter d (mm) | Torque at 100min-1 (Nm) | Drive power at 100min-1 (W) | B1 (mm) | B2 (mm) | C1 (mm) | E (mm) | Width of key Z (mm) | Weight (g) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
123.04 € | 1 | Available | 4 Days | 1 | 6 | 0.35 | 3.7 | 32 | 18 | 12 | 23 | 2* | 52 | |
131.11 € | 1 | Available | 4 Days | 2 | 8 | 0.75 | 7.9 | 35 | 20 | 12 | 25 | 2 | 73 | |
134.16 € | 1 | Available | 4 Days | 3 | 10 | 2.5 | 26.2 | 42 | 24 | 16 | 30 | 4* | 142 | |
138.27 € | 1 | Available | 4 Days | 4 | 12 | 4 | 41.9 | 46 | 26 | 16 | 33 | 4 | 149 | |
143.80 € | 1 | Available | 4 Days | 5 | 12 | 5 | 52 | 53 | 30 | 16 | 38 | 4 | 268 | |
146.87 € | 1 | Available | 4 Days | 6 | 12 | 8 | 84 | 56 | 32 | 16 | 40 | 4 | 330 | |
154.22 € | 1 | Available | 4 Days | 7 | 12 | 10 | 105 | 60 | 35 | 16 | 42.5 | 4 | 395 | |
118.02 € | 1 | Available | 4 Days | 0 | 4 | 0.28 | 2.96 | 26 | 15 | 10 | 18.5 | - | 29 |
Loading...
Basic information
| Type | Bevel gear | Ratio | 1 : 1 |
|---|
Configure
Basic Attributes
-
Size
-
Shaft diameter d(mm)
- 4
- 6
- 8
- 10
- 12
-
Torque at 100min-1(Nm)
- 0.28
- 0.35
- 0.75
- 2.5
- 4
- 5
- 8
- 10
-
Drive power at 100min-1(W)
- 2.96
- 3.7
- 7.9
- 26.2
- 41.9
- 52
- 84
- 105
-
B1(mm)
- 26
- 32
- 35
- 42
- 46
- 53
- 56
- 60
-
B2(mm)
- 15
- 18
- 20
- 24
- 26
- 30
- 32
- 35
-
C1(mm)
- 10
- 12
- 16
-
E(mm)
- 18.5
- 23
- 25
- 30
- 33
- 38
- 40
- 42.5
-
Width of key Z(mm)
- 2
- 2*
- 4
- 4*
- -
Filter by standard shipping days
-
- All
- 4 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
