MAEDLER

Locking Assemblies COM-A, Stainless

Locking Assemblies COM-A, Stainless

Part number:

Still undefined. 24 possible part numbers found.
Quantity:

Part number list

Number of items
  • 1
    • Part number
    61599514
    61599515
    61599516
    61599517
    61599518
    61599519
    61599520
    61599522
    61599524
    61599525
    61599528
    61599530
    61599532
    61599535
    61599538
    61599540
    61599545
    61599550
    61599555
    61599560
    61599565
    61599570
    61599575
    61599580

    Inner diameter d

    (mm)

    Outer diameter D

    (mm)

    Length L

    (mm)

    L2

    (mm)

    Transmissible torque T

    (Nm)

    Admissible axial force Fax

    (kN)

    Shaft surface pressure PW

    (N/mm2)

    Hub surface pressure PN

    (N/mm2)

    Bolts (No. x Size)

    Tightening torque fastening screws TA

    (Nm)

    Weight

    (kg)

    		Minimum order quantity
    14
    42
    20
    26
    95
    14
    154
    51
    8 x M6
    8
    0.18
    1 pieces
    15
    42
    20
    26
    95
    14
    148
    53
    8 x M6
    8
    0.18
    1 pieces
    16
    44
    20
    26
    100
    14
    135
    53
    8 x M6
    8
    0.18
    1 pieces
    17
    44
    20
    26
    105
    14
    125
    49
    8 x M6
    8
    0.18
    1 pieces
    18
    47
    20
    26
    110
    13
    102
    43
    8 x M6
    8
    0.18
    1 pieces
    19
    47
    20
    26
    130
    15
    119
    50
    8 x M6
    8
    0.18
    1 pieces
    20
    47
    20
    26
    160
    16
    124
    52
    8 x M6
    8
    0.21
    1 pieces
    22
    47
    20
    26
    180
    16
    107
    48
    8 x M6
    8
    0.2
    1 pieces
    24
    50
    20
    26
    215
    17
    114
    54
    8 x M6
    8
    0.22
    1 pieces
    25
    50
    20
    26
    230
    17
    108
    54
    8 x M6
    8
    0.22
    1 pieces
    28
    55
    20
    26
    300
    19
    110
    55
    10 x M6
    8
    0.27
    1 pieces
    30
    55
    20
    26
    330
    19
    97
    52
    10 x M6
    8
    0.25
    1 pieces
    32
    60
    20
    26
    420
    23
    112
    60
    12 x M6
    8
    0.3
    1 pieces
    35
    60
    20
    26
    520
    23
    104
    60
    12 x M6
    8
    0.29
    1 pieces
    38
    65
    20
    26
    650
    26
    107
    62
    14 x M6
    8
    0.33
    1 pieces
    40
    65
    20
    26
    700
    26
    101
    61
    14 x M6
    8
    0.32
    1 pieces
    45
    75
    24
    32
    750
    37
    105
    62
    12 x M8
    18
    0.53
    1 pieces
    50
    80
    24
    32
    1000
    36
    95
    57
    12 x M8
    18
    0.56
    1 pieces
    55
    85
    24
    32
    1400
    43
    106
    68
    14 x M8
    18
    0.65
    1 pieces
    60
    90
    24
    32
    1500
    45
    93
    61
    14 x M8
    18
    0.66
    1 pieces
    65
    95
    24
    32
    1800
    48
    98
    66
    16 x M8
    18
    0.72
    1 pieces
    70
    110
    28
    38
    2200
    62
    109
    68
    14 x M10
    35
    1.27
    1 pieces
    75
    115
    28
    38
    2400
    68
    93
    60
    14 x M10
    35
    1.33
    1 pieces
    80
    120
    28
    38
    2600
    68
    93
    62
    14 x M10
    35
    1.35
    1 pieces
    Unit price (excluding VAT)(Unit price including VAT)
    Standard shipping days
    51.84 €
    ( 61.69 € )
    4 working days
    51.84 €
    ( 61.69 € )
    4 working days
    54.24 €
    ( 64.55 € )
    4 working days
    54.24 €
    ( 64.55 € )
    4 working days
    55.88 €
    ( 66.50 € )
    4 working days
    55.88 €
    ( 66.50 € )
    4 working days
    55.88 €
    ( 66.50 € )
    4 working days
    55.88 €
    ( 66.50 € )
    4 working days
    59.22 €
    ( 70.47 € )
    4 working days
    59.22 €
    ( 70.47 € )
    4 working days
    70.25 €
    ( 83.60 € )
    4 working days
    70.25 €
    ( 83.60 € )
    4 working days
    73.60 €
    ( 87.58 € )
    4 working days
    73.60 €
    ( 87.58 € )
    4 working days
    81.61 €
    ( 97.12 € )
    4 working days
    81.61 €
    ( 97.12 € )
    4 working days
    109.39 €
    ( 130.17 € )
    4 working days
    118.07 €
    ( 140.50 € )
    4 working days
    130.44 €
    ( 155.22 € )
    4 working days
    139.17 €
    ( 165.61 € )
    4 working days
    151.74 €
    ( 180.57 € )
    4 working days
    225.42 €
    ( 268.25 € )
    4 working days
    241.80 €
    ( 287.74 € )
    4 working days
    266.90 €
    ( 317.61 € )
    4 working days
  • 1

    • More Information

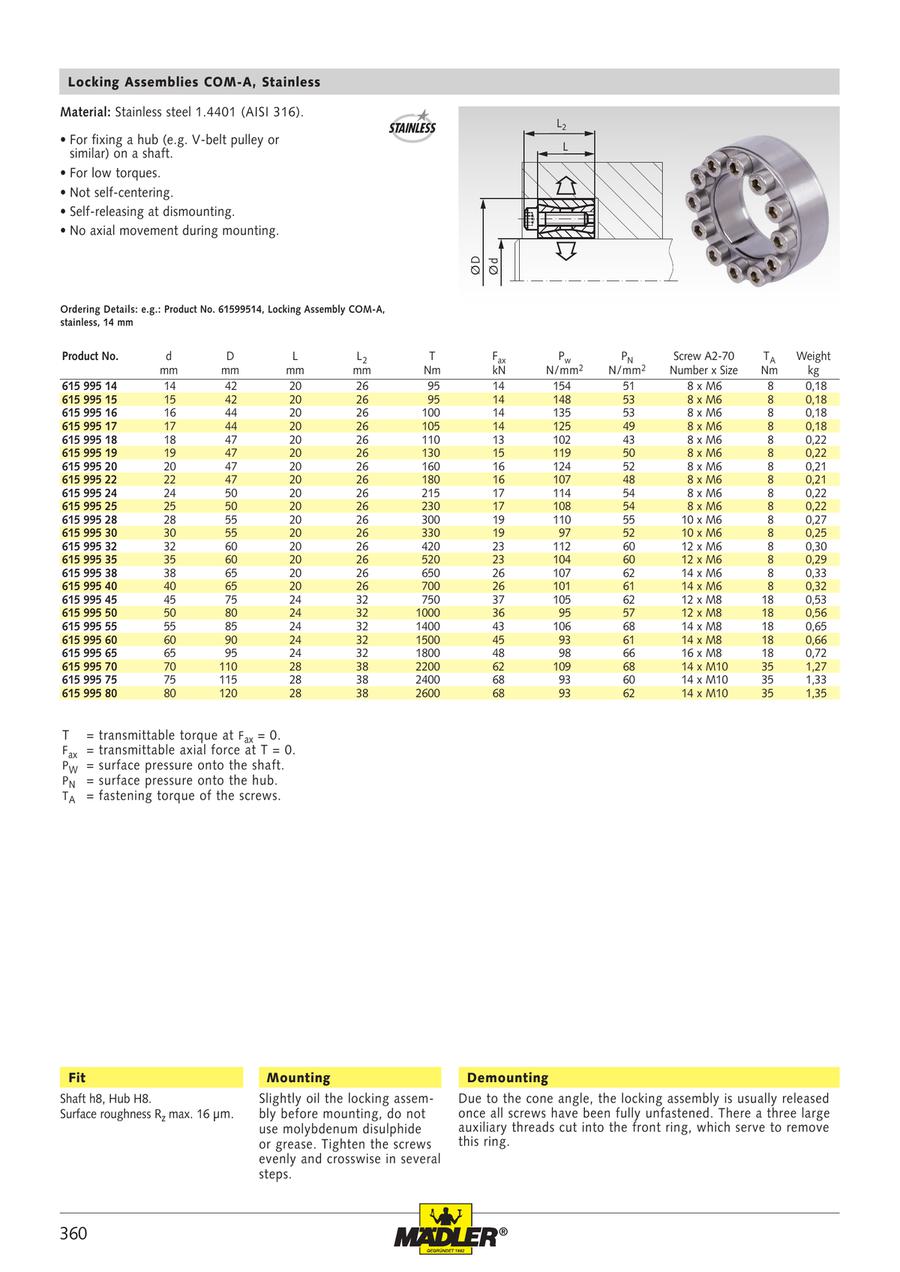

    Basic information

    Material: Stainless steel 1.4401 (AISI 316).
    • For fixing a hub (e.g. V-belt pulley or similar) on a shaft.
    • For low torques.
    • Not self-centering.
    • Self-releasing at dismounting.
    • No axial movement during mounting.
