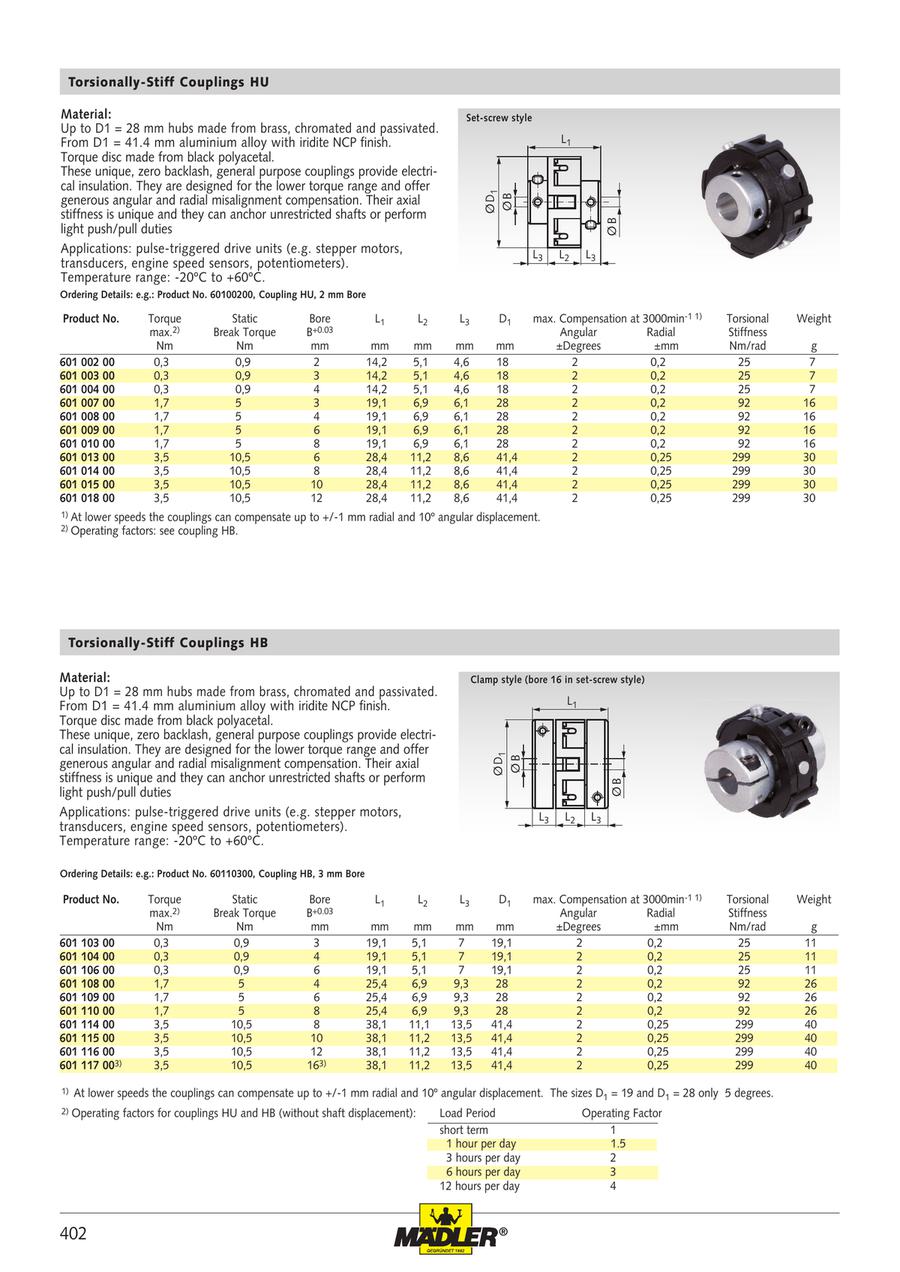

Torsionally-Stiff Couplings HU
- Volume Discount
Up to D1 = 28 mm hubs made from brass, chromated and passivated.
From D1 = 41.4 mm aluminium alloy with iridite NCP finish.
Torque disc made from black polyacetal.
These unique, zero backlash, general purpose couplings provide electrical insulation. They are designed for the lower torque range and offer generous angular and radial misalignment compensation. Their axial stiffness is unique and they can anchor unrestricted shafts or perform light push/pull duties.
Applications: pulse-triggered drive units (e.g. stepper motors, transducers, engine speed sensors, potentiometers).
Temperature range: -20ºC to +60ºC.
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
Part Number
|
|---|
| 60100200 |
| 60100300 |
| 60100400 |
| 60100700 |
| 60100800 |
| 60100900 |
| 60101000 |
| 60101300 |
| 60101400 |
| 60101500 |
| 60101800 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Allowable Torque Range (N•m) | Allowable Torque (Nm) | Material | Surface | Stat. breaking torque (Nm) | Bore diameter (mm) | Total length L1 (mm) | L2 (mm) | L3 (mm) | Outer diameter D1 (mm) | Max. misalignment radial at 3000 min-1 Max (mm) | Torsional stiffness (Nm/rad) | Weight (g) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
24.54 € | 1 | Available | 4 Days | 0.05 to 1.00 | 0.3 | Plastic / Brass | Chromated and passivated | 0.9 | 2 | 14.2 | 5.1 | 4.6 | 18 | 0.2 | 25 | 7 | |
24.53 € | 1 | Available | 4 Days | 0.05 to 1.00 | 0.3 | Plastic / Brass | Chromated and passivated | 0.9 | 3 | 14.2 | 5.1 | 4.6 | 18 | 0.2 | 25 | 7 | |
24.53 € | 1 | Available | 4 Days | 0.05 to 1.00 | 0.3 | Plastic / Brass | Chromated and passivated | 0.9 | 4 | 14.2 | 5.1 | 4.6 | 18 | 0.2 | 25 | 7 | |
26.77 € | 1 | Available | 4 Days | 1.01 to 3.00 | 1.7 | Plastic / Brass | Chromated and passivated | 5 | 3 | 19.1 | 6.9 | 6.1 | 28 | 0.2 | 92 | 16 | |
26.76 € | 1 | Available | 4 Days | 1.01 to 3.00 | 1.7 | Plastic / Brass | Chromated and passivated | 5 | 4 | 19.1 | 6.9 | 6.1 | 28 | 0.2 | 92 | 16 | |
25.33 € | 1 | Available | 4 Days | 1.01 to 3.00 | 1.7 | Plastic / Brass | Chromated and passivated | 5 | 6 | 19.1 | 6.9 | 6.1 | 28 | 0.2 | 92 | 16 | |
26.76 € | 1 | Available | 4 Days | 1.01 to 3.00 | 1.7 | Plastic / Brass | Chromated and passivated | 5 | 8 | 19.1 | 6.9 | 6.1 | 28 | 0.2 | 92 | 16 | |
46.45 € | 1 | Available | 4 Days | 3.01 to 5.00 | 3.5 | Plastic / Aluminum | Iridite NCP finish | 10.5 | 6 | 28.4 | 11.2 | 8.6 | 41.4 | 0.25 | 299 | 30 | |
44.04 € | 1 | Available | 4 Days | 3.01 to 5.00 | 3.5 | Plastic / Aluminum | Iridite NCP finish | 10.5 | 8 | 28.4 | 11.2 | 8.6 | 41.4 | 0.25 | 299 | 30 | |
46.45 € | 1 | Available | 4 Days | 3.01 to 5.00 | 3.5 | Plastic / Aluminum | Iridite NCP finish | 10.5 | 10 | 28.4 | 11.2 | 8.6 | 41.4 | 0.25 | 299 | 30 | |
46.45 € | 1 | Available | 4 Days | 3.01 to 5.00 | 3.5 | Plastic / Aluminum | Iridite NCP finish | 10.5 | 12 | 28.4 | 11.2 | 8.6 | 41.4 | 0.25 | 299 | 30 |
Loading...
Basic information
| Max. Rotational Speed Range(r/min) | 2001 to 4,000 | Category | Coupling Main Body | Max. Rotational Speed(r/min) | 3000 |
|---|---|---|---|---|---|
| Operating Temperature Range(°C) | ::-20 ~ 60 | Stainless | Yes | Coupling type | Torsionally stiff, angular flexibility |
| With keyway | No | Electrically insulating | Yes | Max. misalignment angular at 3000 min-1 Max(°) | 2 |
| Max. misalignment axial(mm) | 0 | Temperature min(°C) | -20 | Temperature max(°C) | 60 |
Configure
Basic Attributes
-
Allowable Torque Range(N•m)
-
Allowable Torque(Nm)
-
Material
- Plastic / Aluminum
- Plastic / Brass
-
Surface
- Chromated and passivated
- Iridite NCP finish
-
Stat. breaking torque(Nm)
-
Bore diameter(mm)
- 2
- 3
- 4
- 6
- 8
- 10
- 12
-
Total length L1(mm)
-
L2(mm)
-
L3(mm)
-
Outer diameter D1(mm)
-
Max. misalignment radial at 3000 min-1 Max(mm)
- 0.2
- 0.25
-
Torsional stiffness(Nm/rad)
Filter by standard shipping days
-
- All
- 4 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
