MAEDLER

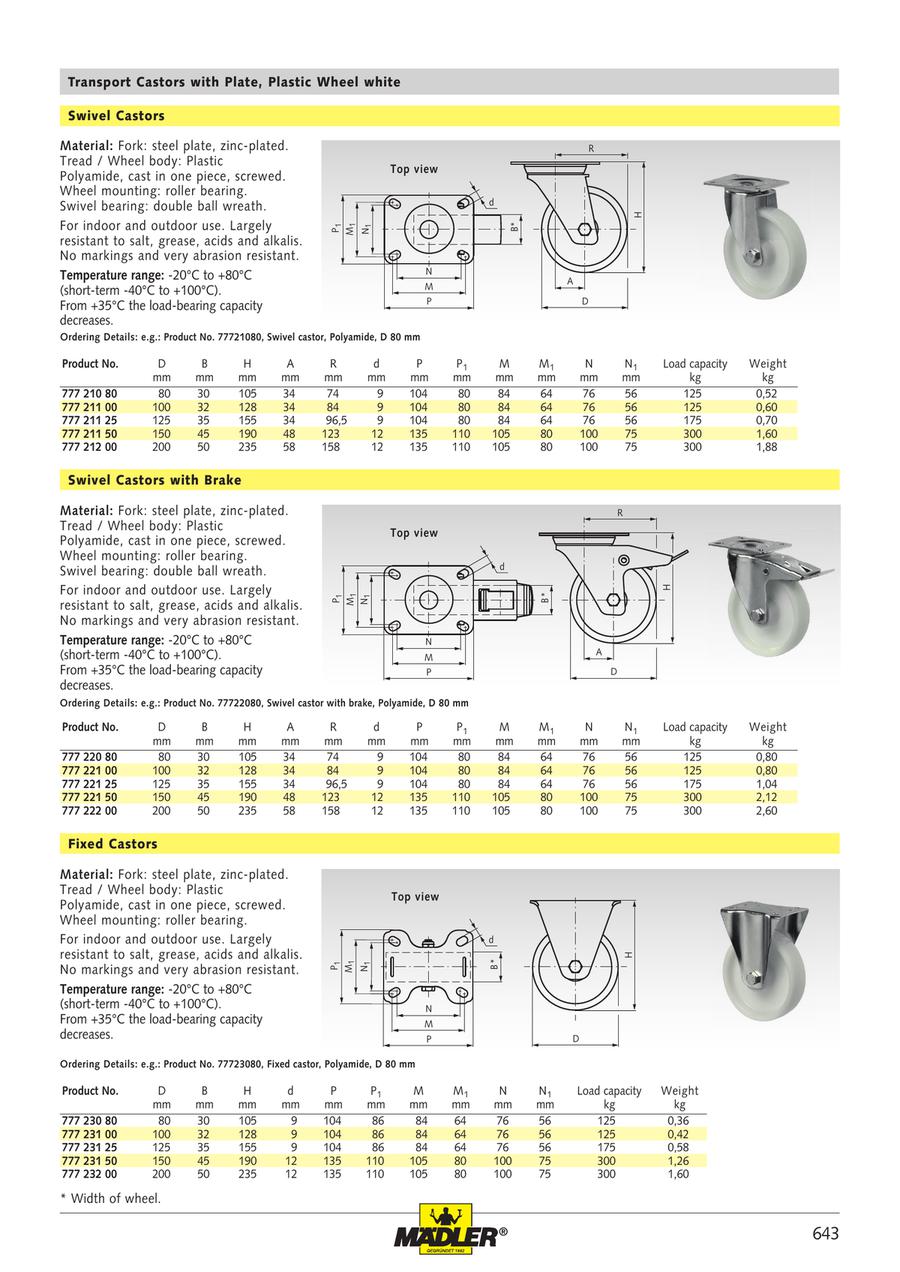

Transport Castors with Plate, Plastic Wheel White - Swivel Castors

Transport Castors with Plate, Plastic Wheel White - Swivel Castors

Part number:

Still undefined. 5 possible part numbers found.
Quantity:

Part number list

Number of items
  • 1
    • Part number
    77721080
    77721100
    77721125
    77721150
    77721200

    Roller diameter D

    (mm)

    Roller width B

    (mm)

    Total height H

    (mm)

    Center distance from middle axis to support surface A

    (mm)

    R

    (mm)

    Long hole width d

    (mm)

    Length of mounting surface P

    (mm)

    Width of mounting surface P1

    (mm)

    Hole distance between long holes (P max.) M

    (mm)

    Hole distance between long holes (P1 max.) M1

    (mm)

    Hole distance between long holes (P min.) N

    (mm)

    Hole distance between long holes (P1 min.) N1

    (mm)

    Load capacity

    (kg)

    Suitable Fixed Castor (Part-No.)

    Weight

    (kg)

    		Minimum order quantity
    80
    30
    105
    34
    74
    9
    104
    80
    84
    64
    76
    56
    125
    77723080
    0.52
    1 pieces
    100
    32
    128
    34
    84
    9
    104
    80
    84
    64
    76
    56
    125
    77723100
    0.6
    1 pieces
    125
    35
    155
    34
    96.5
    9
    104
    80
    84
    64
    76
    56
    175
    77723125
    0.7
    1 pieces
    150
    45
    190
    48
    123
    12
    135
    110
    105
    80
    100
    75
    300
    77723150
    1.6
    1 pieces
    200
    50
    235
    58
    158
    12
    135
    110
    105
    80
    100
    75
    300
    77723200
    1.88
    1 pieces
    Unit price (excluding VAT)(Unit price including VAT)
    Standard shipping days
    11.81 €
    ( 14.05 € )
    4 working days
    14.04 €
    ( 16.71 € )
    4 working days
    17.10 €
    ( 20.35 € )
    4 working days
    35.26 €
    ( 41.96 € )
    4 working days
    42.28 €
    ( 50.31 € )
    4 working days
  • 1

    • More Information

    Basic information

    Material: Fork: steel plate, zinc-plated.
    Tread / Wheel body: Plastic Polyamide, cast in one piece, screwed.
    Wheel mounting: roller bearing.
    Swivel bearing: double ball wreath.

    For indoor and outdoor use. Largely resistant to salt, grease, acids and alkalis. No markings and very abrasion resistant.

    Temperature range: -20°C to +80°C (short-term -40°C to +100°C).
    From +35°C the load-bearing capacity decreases.
