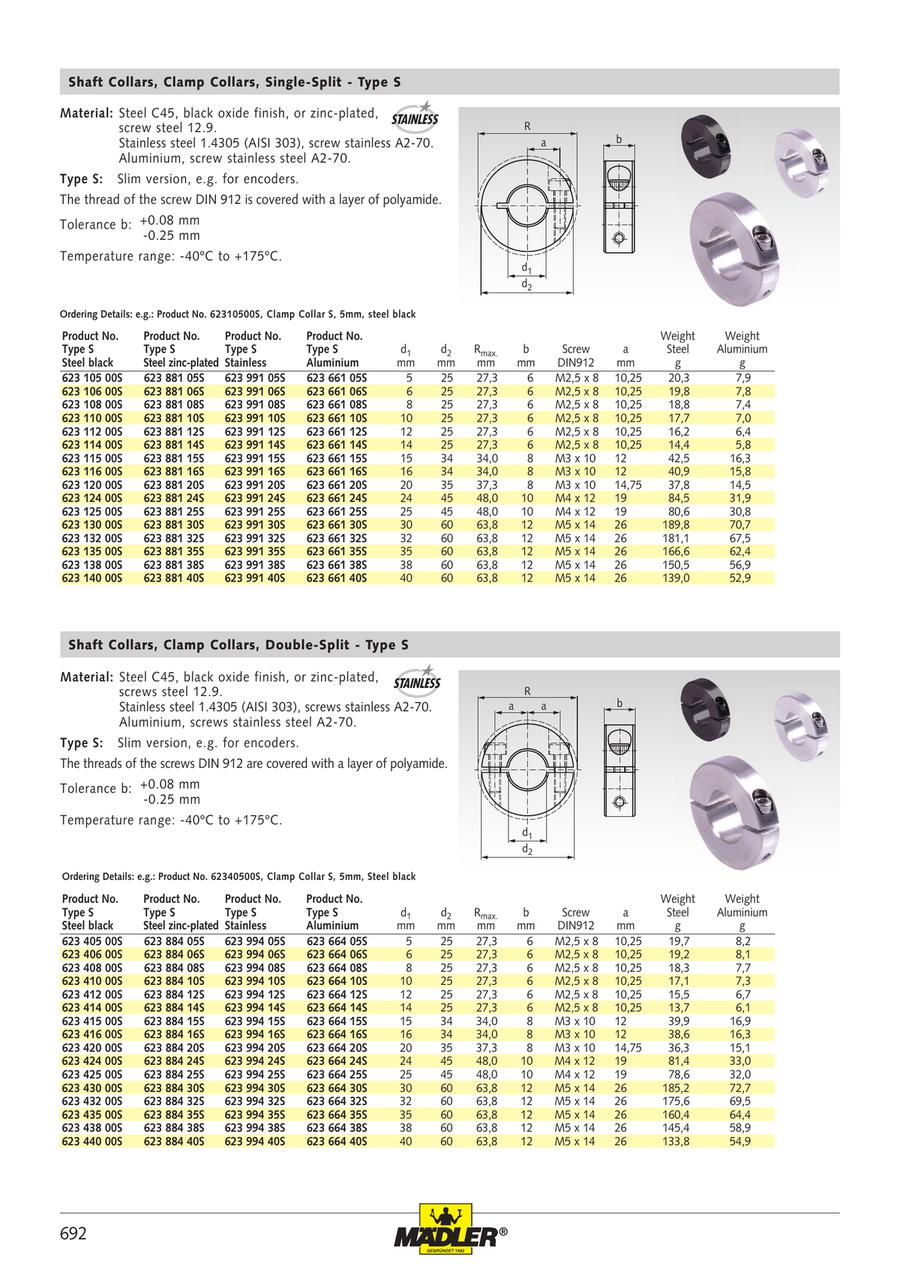

Shaft Collars, Clamp Collars, Single-Split - Type S, Stainless Steel

Shaft Collars, Clamp Collars, Single-Split - Type S, Stainless Steel

Part number:

Still undefined. 16 possible part numbers found.
Quantity:

Part number list

Number of items
  • 1
    • Part number
    62399105S
    62399106S
    62399108S
    62399110S
    62399112S
    62399114S
    62399115S
    62399116S
    62399120S
    62399124S
    62399125S
    62399130S
    62399132S
    62399135S
    62399138S
    62399140S

    O.D.

    (mm)

    Width

    (mm)

    Material

    Bore diameter d1

    (mm)

    Max. outer diameter over screw head Rmax.

    (mm)

    Screw DIN 912 (Thread size x length)

    a

    (mm)

    Weight

    (g)

    		Minimum order quantity
    25
    6
    Stainless steel (1.4305)
    5
    27.3
    M 2.5 x 8
    10.25
    20.3
    1 pieces
    25
    6
    Stainless steel (1.4305)
    6
    27.3
    M 2.5 x 8
    10.25
    19.8
    1 pieces
    25
    6
    Stainless steel (1.4305)
    8
    27.3
    M 2.5 x 8
    10.25
    18.8
    1 pieces
    25
    6
    Stainless steel (1.4305)
    10
    27.3
    M 2.5 x 8
    10.25
    17.7
    1 pieces
    25
    6
    Stainless steel (1.4305)
    12
    27.3
    M 2.5 x 8
    10.25
    16.2
    1 pieces
    25
    6
    Stainless steel (1.4305)
    14
    27.3
    M 2.5 x 8
    10.25
    14.4
    1 pieces
    34
    8
    Stainless steel (1.4305)
    15
    34
    M 3 x 10
    12
    42.5
    1 pieces
    34
    8
    Stainless steel (1.4305)
    16
    34
    M 3 x 10
    12
    40.9
    1 pieces
    35
    8
    Stainless steel (1.4305)
    20
    37.3
    M 3 x 10
    14.75
    37.8
    1 pieces
    45
    10
    Stainless steel (1.4305)
    24
    48
    M 4 x 12
    19
    84.5
    1 pieces
    45
    10
    Stainless steel (1.4305)
    25
    48
    M 4 x 12
    19
    80.6
    1 pieces
    60
    12
    Stainless steel (1.4305)
    30
    63.8
    M 5 x 14
    26
    189.8
    1 pieces
    60
    12
    Stainless steel (1.4305)
    32
    63.8
    M 5 x 14
    26
    181.1
    1 pieces
    60
    12
    Stainless steel (1.4305)
    35
    63.8
    M 5 x 14
    26
    166.6
    1 pieces
    60
    12
    Stainless Steel (303)
    38
    63.8
    M 5 x 14
    26
    150.5
    1 pieces
    60
    12
    Stainless steel (1.4305)
    40
    63.8
    M 5 x 14
    26
    139
    1 pieces
    Unit price (excluding VAT)(Unit price including VAT)
    Standard shipping days
    6.12 €
    ( 7.28 € )
    4 working days
    6.12 €
    ( 7.28 € )
    4 working days
    6.12 €
    ( 7.28 € )
    4 working days
    7.17 €
    ( 8.53 € )
    4 working days
    7.17 €
    ( 8.53 € )
    4 working days
    7.17 €
    ( 8.53 € )
    4 working days
    9.21 €
    ( 10.96 € )
    4 working days
    9.21 €
    ( 10.96 € )
    4 working days
    10.06 €
    ( 11.97 € )
    4 working days
    13.10 €
    ( 15.59 € )
    4 working days
    14.16 €
    ( 16.85 € )
    4 working days
    21.15 €
    ( 25.17 € )
    4 working days
    21.15 €
    ( 25.17 € )
    4 working days
    21.22 €
    ( 25.25 € )
    4 working days
    21.47 €
    ( 25.55 € )
    4 working days
    21.47 €
    ( 25.55 € )
    4 working days
  • 1

    • More Information

    Basic information

    Material: Stainless steel 1.4305 (AISI 303), screw stainless A2-70.
    Type S: Slim version, e.g. for encoders.
    The thread of the screw DIN 912 is covered with a layer of polyamide.
    Tolerance b: +0.08 mm / -0.25 mm
    Temperature range: -40ºC to +175ºC.
