Configure
- I.D.(mm)
- 8
- 10
- 12
- 15
- 16
- 20
- 25
- 30
- 35
- 38
- 40
- 45
- 50
- 60
- O.D.(mm)
- 18
- 24
- 28
- 34
- 40
- 45
- 54
- 57
- 60
- 73
- 78
- 88
- Width(mm)
- 9
- 11
- 13
- 15
- 19
- Max. outer diameter over screw head Rmax.(mm)
- 22.4
- 26
- 31.8
- 39.4
- 46.4
- 50.8
- 58.6
- 61.6
- 65
- 79.4
- 84.2
- 94
- Keyway width bN(mm)
- 2
- 3
- 4
- 5
- 6
- 8
- 10
- 12
- 14
- 18
- Depth of keyway t2(mm)
- 1
- 1.4
- 1.8
- 2.3
- 2.8
- 3.3
- 3.8
- 4.4
- Est. shipping days
- All
- Within 4 working days

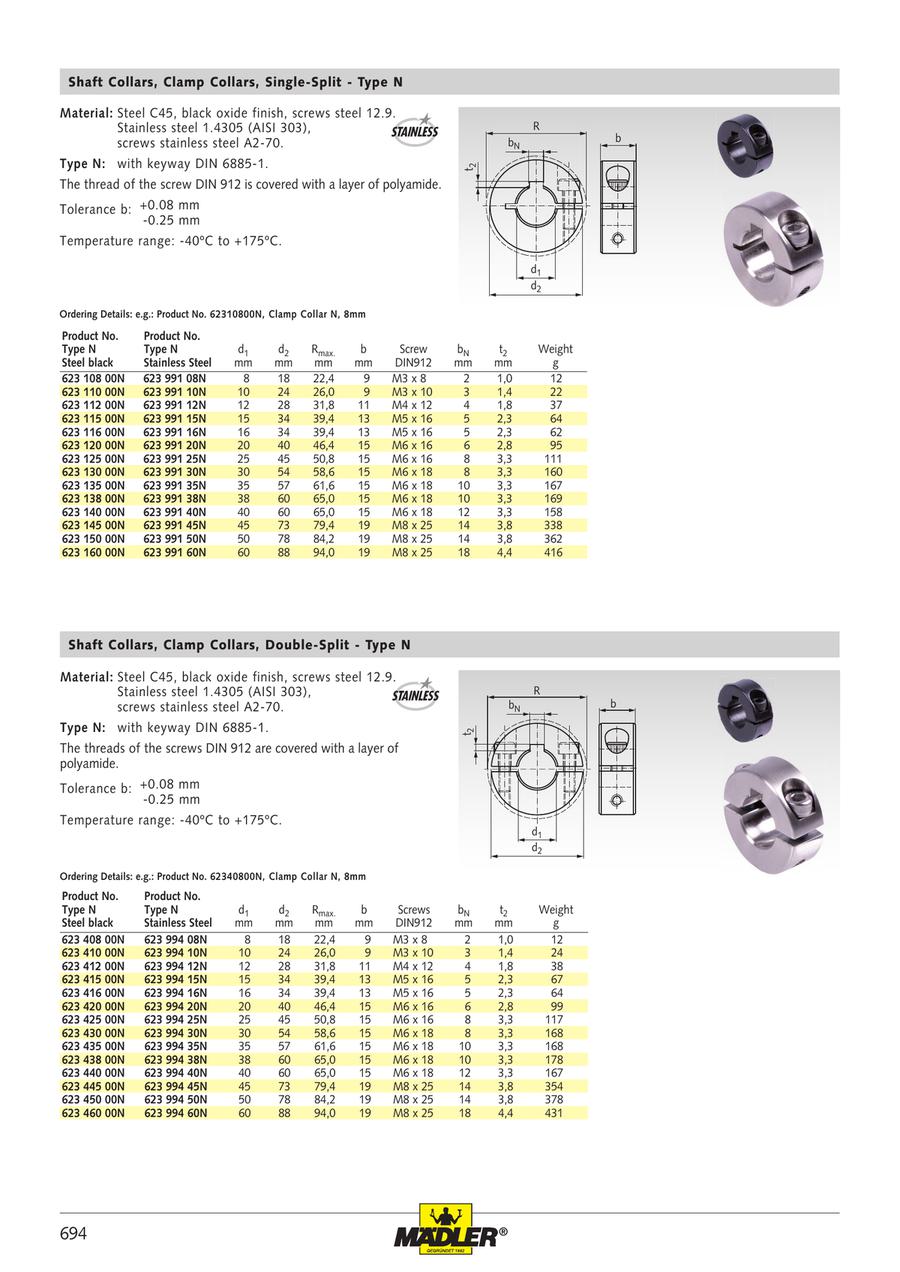

Shaft Collars, Clamp Collars, Single-Split - Type N, Steel, Black Oxide Fnish
Part number:
possible part numbers found.Part number list
Number of items
| Part number |
|---|
Unit price (excluding VAT)(Unit price including VAT) | Standard shipping days |
|---|
7.20 € ( 8.57 € ) | 4 working days |
7.55 € ( 8.98 € ) | 4 working days |
7.64 € ( 9.09 € ) | 4 working days |
7.90 € ( 9.40 € ) | 4 working days |
7.90 € ( 9.40 € ) | 4 working days |
9.06 € ( 10.78 € ) | 4 working days |
9.86 € ( 11.73 € ) | 4 working days |
10.99 € ( 13.08 € ) | 4 working days |
11.58 € ( 13.78 € ) | 4 working days |
12.84 € ( 15.28 € ) | 4 working days |
12.84 € ( 15.28 € ) | 4 working days |
18.39 € ( 21.88 € ) | 4 working days |
20.26 € ( 24.11 € ) | 4 working days |
23.38 € ( 27.82 € ) | 4 working days |
More Information
Basic information
Material: Steel C45, black oxide finish, screws steel 12.9.
Type N: With keyway DIN 6885-1.
The thread of the screw DIN 912 is covered with a layer of polyamide.
Tolerance b: +0.08 mm / -0.25 mm
Temperature range: -40ºC to +175ºC.
