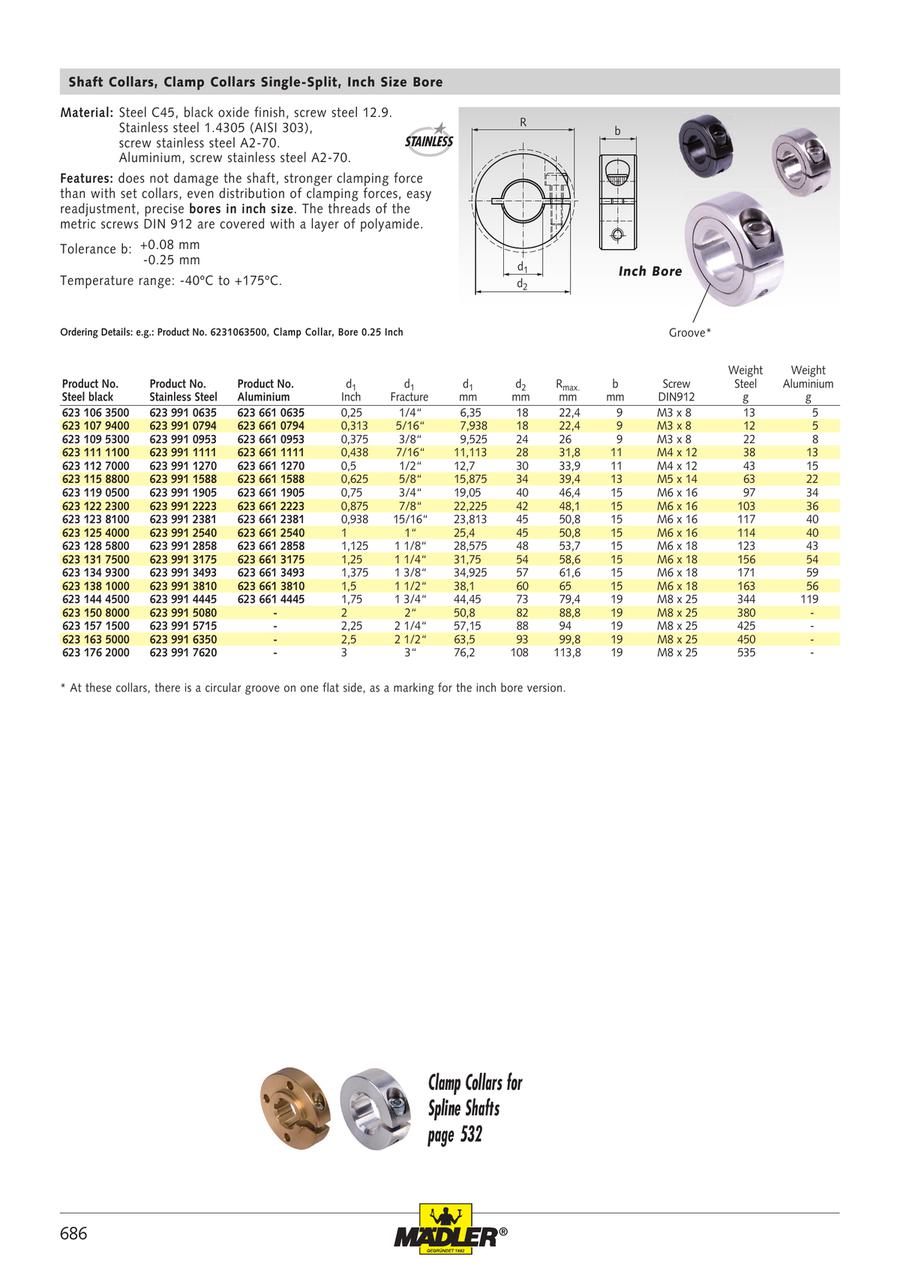

Shaft Collars, Clamp Collars Single-Split, Inch Size Bore, Stainless Steel

Shaft Collars, Clamp Collars Single-Split, Inch Size Bore, Stainless Steel

Part number:

Still undefined. 19 possible part numbers found.
Quantity:

Part number list

Number of items
  • 1
    • Part number
    6239910635
    6239910794
    6239910953
    6239911111
    6239911270
    6239911588
    6239911905
    6239912223
    6239912381
    6239912540
    6239912858
    6239913175
    6239913493
    6239913810
    6239914445
    6239915080
    6239915715
    6239916350
    6239917620

    I.D.

    (mm)

    O.D.

    (mm)

    Width

    (mm)

    Inner diameter [inch] d1 [Inch]

    Inner diameter [fraction] d1

    Max. outer diameter over screw head R

    (mm)

    Bolts DIN 912

    Weight

    (g)

    		Minimum order quantity
    6.35
    18
    9
    0.25
    1/4
    22.4
    M 3 x 8
    13
    1 pieces
    7.938
    18
    9
    0.313
    5/16
    22.4
    M 3 x 8
    12
    1 pieces
    9.525
    24
    9
    0.375
    3/8
    26
    M 3 x 8
    22
    1 pieces
    11.113
    28
    11
    0.438
    7/16
    31.8
    M 4 x 12
    38
    1 pieces
    12.7
    30
    11
    0.5
    1/2
    33.9
    M 4 x 12
    43
    1 pieces
    15.875
    34
    13
    0.625
    5/8
    39.4
    M 5 x 14
    63
    1 pieces
    19.05
    40
    15
    0.75
    3/4
    46.4
    M 6 x 16
    97
    1 pieces
    22.225
    42
    15
    0.875
    7/8
    48.1
    M 6 x 16
    103
    1 pieces
    23.813
    45
    15
    0.938
    15/16
    50.8
    M 6 x 16
    117
    1 pieces
    25.4
    45
    15
    1
    1
    50.8
    M 6 x 16
    114
    1 pieces
    28.575
    48
    15
    1.125
    1 1/8
    53.7
    M 6 x 18
    123
    1 pieces
    31.75
    54
    15
    1.25
    1 1/4
    58.6
    M 6 x 18
    156
    1 pieces
    34.925
    57
    15
    1.375
    1 3/8
    61.6
    M 6 x 18
    171
    1 pieces
    38.1
    60
    15
    1.5
    1 1/2
    65
    M 6 x 18
    163
    1 pieces
    44.45
    73
    19
    1.75
    1 3/4
    79.4
    M 8 x 25
    344
    1 pieces
    50.8
    82
    19
    2
    2
    88.8
    M 8 x 25
    380
    1 pieces
    57.15
    88
    19
    2.25
    2 1/4
    94
    M 8 x 25
    425
    1 pieces
    63.5
    93
    19
    2.5
    2 1/2
    99.8
    M 8 x 25
    450
    1 pieces
    76.2
    108
    19
    3
    3
    113.8
    M 8 x 25
    535
    1 pieces
    Unit price (excluding VAT)(Unit price including VAT)
    Standard shipping days
    9.91 €
    ( 11.79 € )
    4 working days
    8.99 €
    ( 10.70 € )
    4 working days
    10.88 €
    ( 12.95 € )
    4 working days
    11.14 €
    ( 13.26 € )
    4 working days
    13.43 €
    ( 15.98 € )
    4 working days
    14.77 €
    ( 17.58 € )
    4 working days
    18.33 €
    ( 21.81 € )
    4 working days
    21.06 €
    ( 25.06 € )
    4 working days
    21.06 €
    ( 25.06 € )
    4 working days
    21.59 €
    ( 25.69 € )
    4 working days
    21.59 €
    ( 25.69 € )
    4 working days
    25.58 €
    ( 30.44 € )
    4 working days
    29.39 €
    ( 34.97 € )
    4 working days
    40.70 €
    ( 48.43 € )
    4 working days
    57.44 €
    ( 68.35 € )
    4 working days
    79.37 €
    ( 94.45 € )
    4 working days
    83.32 €
    ( 99.15 € )
    4 working days
    87.49 €
    ( 104.11 € )
    4 working days
    101.29 €
    ( 120.54 € )
    4 working days
  • 1

    • More Information

    Basic information

    Material: Stainless steel 1.4305 (AISI 303), screw stainless steel A2-70.

    Features: Does not damage the shaft, stronger clamping force than with set collars, even distribution of clamping forces, easy readjustment, precise bores in inch size.
    The threads of the metric screws DIN 912 are covered with a layer of polyamide.

    Tolerance b: +0.08 mm / -0.25 mm
    Temperature range: -40ºC to +175ºC.
