Configure
- dh9(mm)
- 5
- 8
- dh6(mm)
- 10
- 12
- 15
- 18
- D(mm)
- 12
- 18
- 22
- 25
- 30
- 33
- E1(mm)
- 38.8
- 56.8
- 70
- 82
- 95
- 108
- E2(mm)
- 19.4
- 28.4
- 35
- 41
- 47.5
- 54
- E3(mm)
- 32
- 45
- 55
- 65
- 75
- 85
- HGes(mm)
- 18.8
- 28.2
- 37.5
- 46.8
- 56.2
- 65.7
- HM(mm)
- 10
- 15
- 20
- 25
- 30
- 35
- LE(mm)
- 50
- 70
- 90
- 105
- 120
- 135
- LW(mm)
- 15
- 20
- 30
- 35
- 40
- 45
- r(mm)
- 6
- 9
- 11
- 12.5
- 15
- 16
- s(mm)
- 4.8
- 5.8
- 7
- 9
- 11
- T(mm)
- 4
- 5
- 6
- 7
- 8
- 9
- Module
- 1
- 1.5
- 2
- 2.5
- 3
- 3.5
- Max. torque MD(Ncm)
- 8.3
- 29
- 73
- 145
- 250
- 440
- Est. shipping days
- All
- Within 4 working days

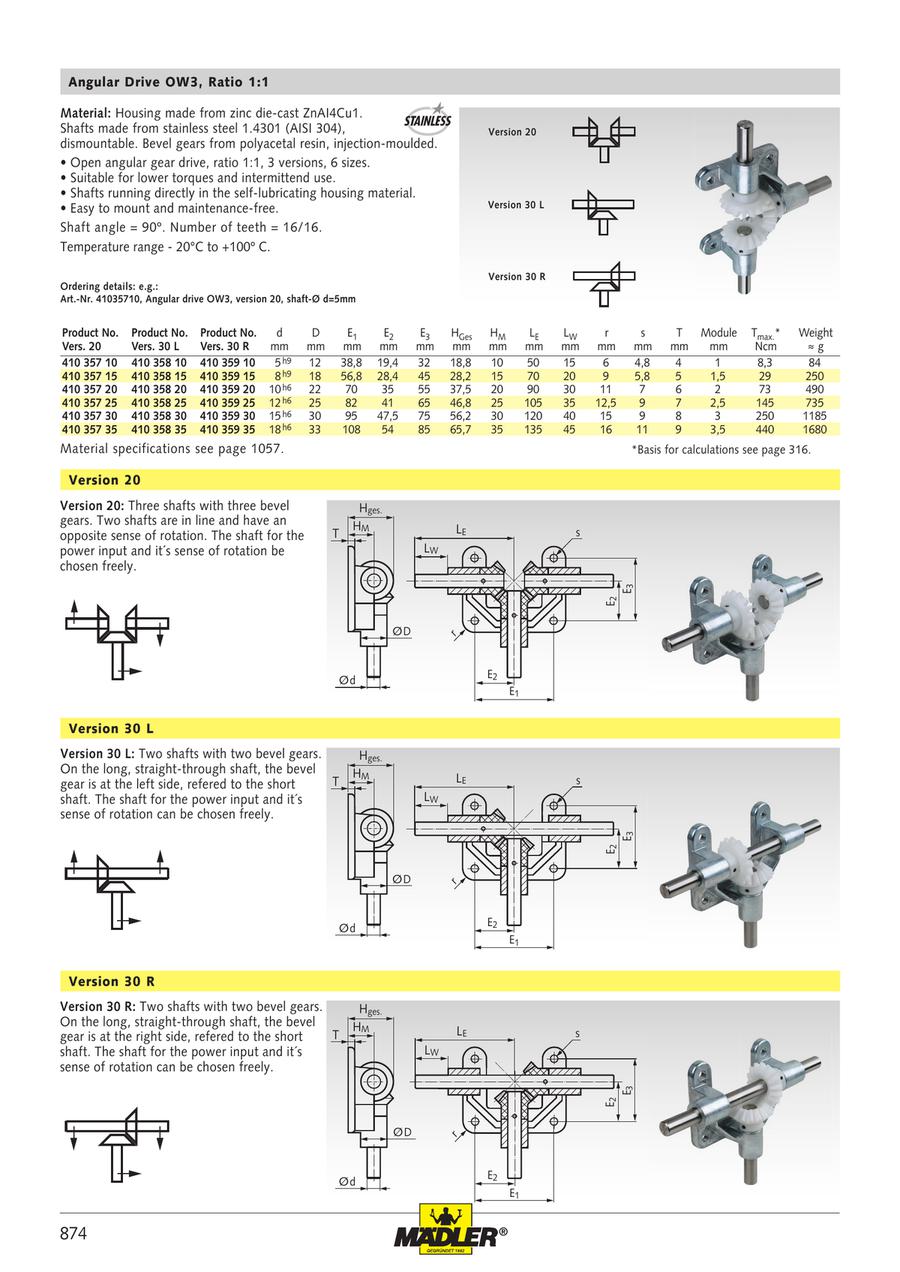

Angular Drive OW3, Ratio 1:1, Version 20
Part number:
possible part numbers found.Part number list
Number of items
Unit price (excluding VAT)(Unit price including VAT) | Standard shipping days |
|---|
45.56 € ( 54.22 € ) | 4 working days |
52.96 € ( 63.02 € ) | 4 working days |
60.35 € ( 71.82 € ) | 4 working days |
67.74 € ( 80.61 € ) | 4 working days |
76.34 € ( 90.84 € ) | 4 working days |
86.68 € ( 103.15 € ) | 4 working days |
More Information
Basic information
Material: Housing made from zinc die-cast ZnAI4Cu1.
Shafts made from stainless steel 1.4301 (AISI 304), dismountable. Bevel gears from polyacetal resin, injection-moulded.
• Open angular gear drive, ratio 1:1, 3 versions, 6 sizes.
• Suitable for lower torques and intermittend use.
• Shafts running directly in the self-lubricating housing material.
• Easy to mount and maintenance-free.
Shaft angle = 90º. Number of teeth = 16/16.
Temperature range - 20°C to +100º C.
Version 20: Three shafts with three bevel gears.
Two shafts are in line and have an opposite sense of rotation. The shaft for the power input and it's sense of rotation be chosen freely.
