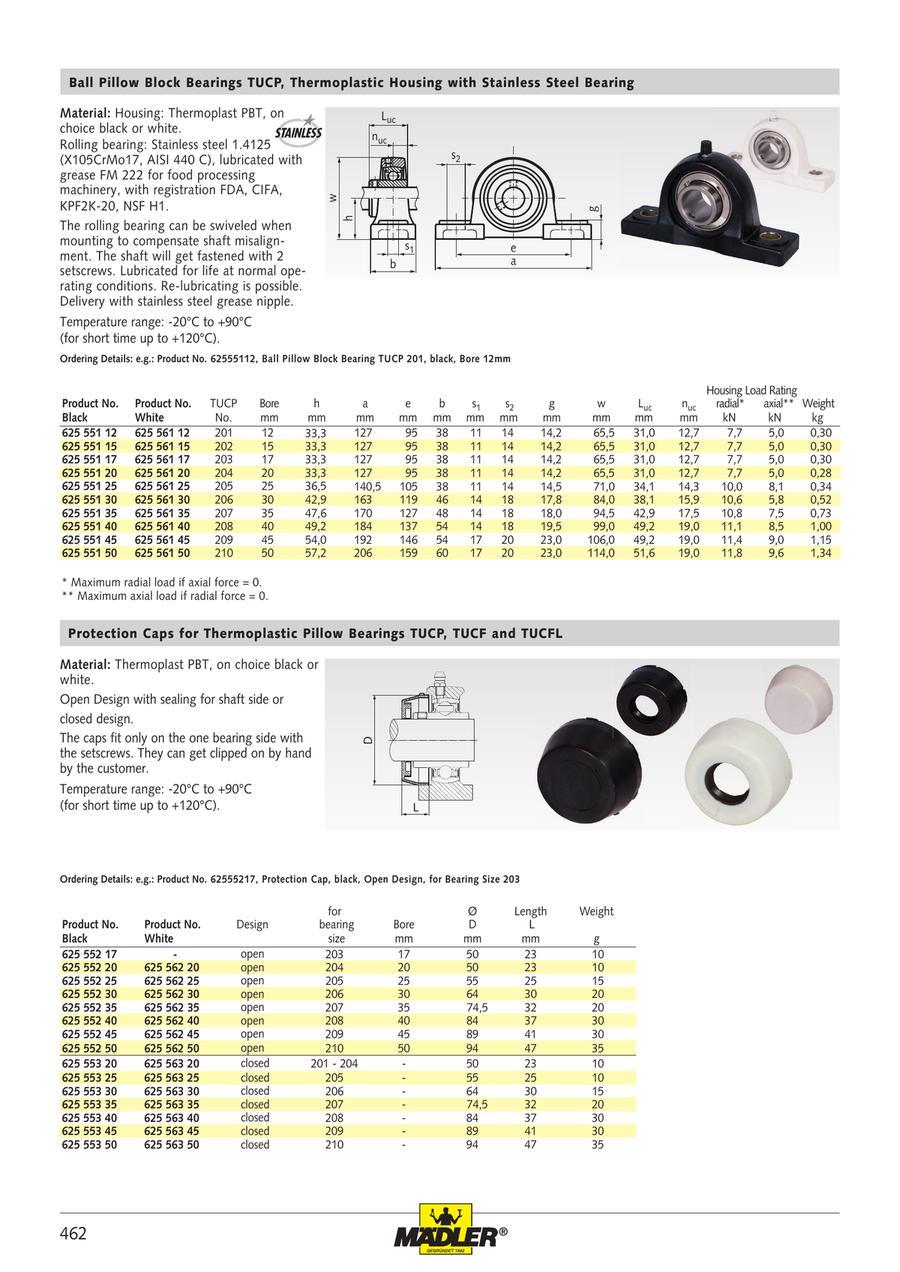

Protection Caps for Thermoplastic Pillow Bearings TUCP, TUCF and TUCFL, White

Protection Caps for Thermoplastic Pillow Bearings TUCP, TUCF and TUCFL, White

Part number:

Still undefined. 14 possible part numbers found.
Quantity:

Part number list

Number of items
  • 1
    • Part number
    62556220
    62556225
    62556230
    62556235
    62556240
    62556245
    62556250
    62556320
    62556325
    62556330
    62556335
    62556340
    62556345
    62556350

    For bearing size (No.)

    Bore

    (mm)

    Length L

    (mm)

    Outer diameter D

    (mm)

    Version

    Weight

    (g)

    		Minimum order quantity
    204
    20
    23
    50
    Open
    10
    1 pieces
    205
    25
    25
    55
    Open
    15
    1 pieces
    206
    30
    30
    64
    Open
    20
    1 pieces
    207
    35
    32
    74.5
    Open
    20
    1 pieces
    208
    40
    37
    84
    Open
    30
    1 pieces
    209
    45
    41
    89
    Open
    30
    1 pieces
    210
    50
    47
    94
    Open
    35
    1 pieces
    201 - 204
    -
    23
    50
    Closed
    10
    1 pieces
    205
    -
    25
    55
    Closed
    15
    1 pieces
    206
    -
    30
    64
    Closed
    20
    1 pieces
    207
    -
    32
    74.5
    Closed
    20
    1 pieces
    208
    -
    37
    84
    Closed
    30
    1 pieces
    209
    -
    41
    89
    Closed
    30
    1 pieces
    210
    -
    47
    94
    Closed
    35
    1 pieces
    Unit price (excluding VAT)(Unit price including VAT)
    Standard shipping days
    2.71 €
    ( 3.22 € )
    4 working days
    3.11 €
    ( 3.70 € )
    4 working days
    4.02 €
    ( 4.78 € )
    4 working days
    4.32 €
    ( 5.14 € )
    4 working days
    4.60 €
    ( 5.47 € )
    4 working days
    4.89 €
    ( 5.82 € )
    4 working days
    5.35 €
    ( 6.37 € )
    4 working days
    1.47 €
    ( 1.75 € )
    4 working days
    1.92 €
    ( 2.28 € )
    4 working days
    2.03 €
    ( 2.42 € )
    4 working days
    2.11 €
    ( 2.51 € )
    4 working days
    2.48 €
    ( 2.95 € )
    4 working days
    2.55 €
    ( 3.03 € )
    4 working days
    2.84 €
    ( 3.38 € )
    4 working days
  • 1

    • More Information

    Basic information

    Material: Thermoplast PBT, white.
    Open Design with sealing for shaft side or closed design.
    The caps fit only on the one bearing side with the setscrews. They can get clipped on by hand by the customer.
    Temperature range: -20°C to +90°C (for short time up to +120°C).
