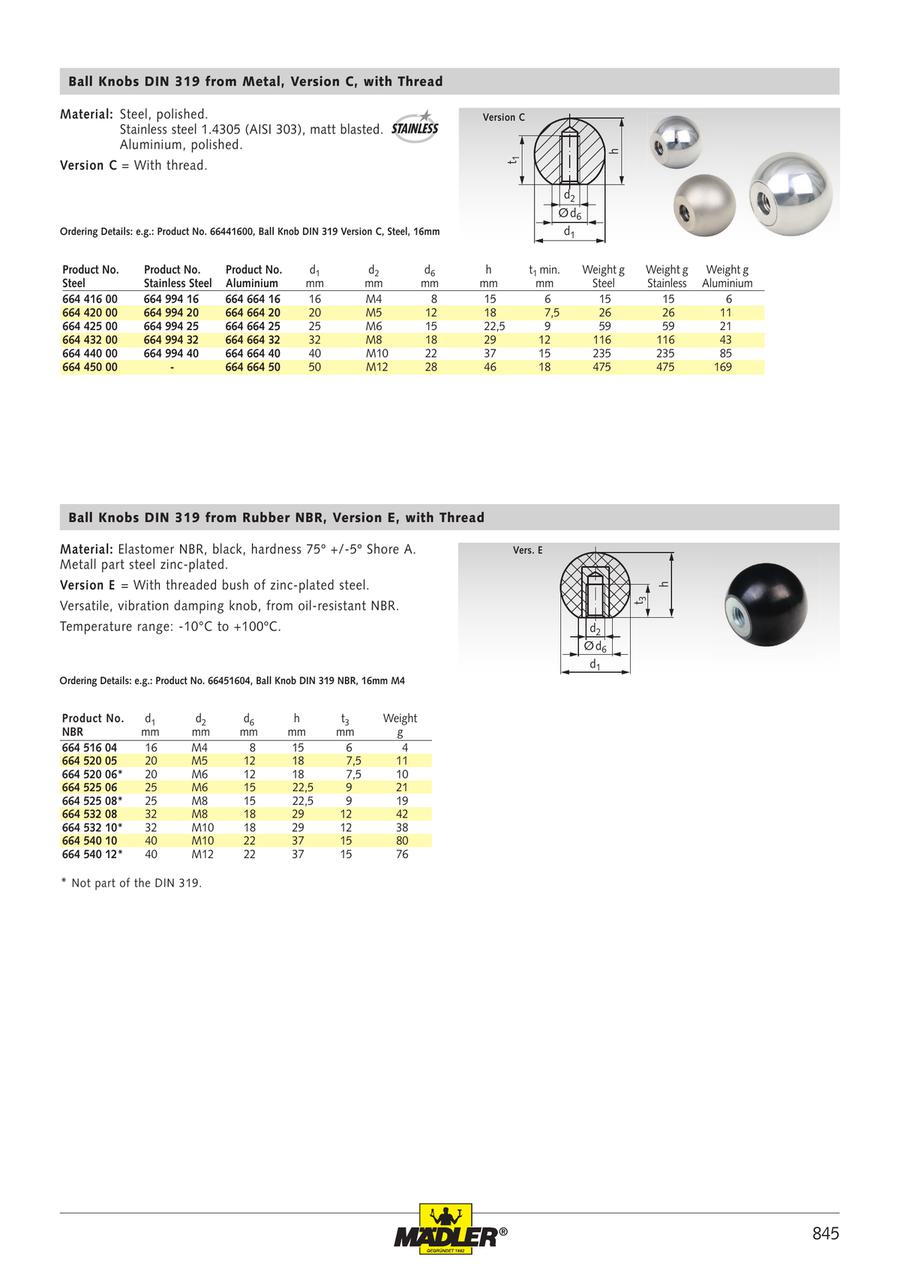

Ball Knobs DIN 319 from Rubber NBR, Version E, with Thread
- Volume Discount
Metall part steel zinc-plated.
Version E = With threaded bush of zinc-plated steel.
Versatile, vibration damping knob, from oil-resistant NBR.
Temperature range: -10°C to +100ºC.
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
Part Number
|
|---|
| 66451604 |
| 66452005 |
| 66452006 |
| 66452506 |
| 66452508 |
| 66453208 |
| 66453210 |
| 66454010 |
| 66454012 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Ball knob diameter d1 (mm) | Inner thread size d2 (mm) | Diameter of support surface d6 (mm) | Height h (mm) | Thread depth t3 (mm) | Weight (g) | |
|---|---|---|---|---|---|---|---|---|---|---|
2.27 € | 1 | Available | 4 Days | 16 | M 4 | 8 | 15 | 6 | 4 | |
2.35 € | 1 | Available | 4 Days | 20 | M 5 | 12 | 18 | 7.5 | 11 | |
2.38 € | 1 | Available | 4 Days | 20 | M 6 | 12 | 18 | 7.5 | 10 | |
2.90 € | 1 | Available | 4 Days | 25 | M 6 | 15 | 22.5 | 9 | 21 | |
3.00 € | 1 | Available | 4 Days | 25 | M 8 | 15 | 22.5 | 9 | 19 | |
4.64 € | 1 | Available | 4 Days | 32 | M8 | 18 | 29 | 12 | 42 | |
4.82 € | 1 | Available | 4 Days | 32 | M 10 | 18 | 29 | 12 | 38 | |
6.87 € | 1 | Available | 4 Days | 40 | M 10 | 22 | 37 | 15 | 80 | |
7.06 € | 1 | Available | 4 Days | 40 | M 12 | 22 | 37 | 15 | 76 |
Loading...
Basic information
| Material | NBR / Steel | Surface | Zinc-plated |
|---|
Configure
Basic Attributes
-
Ball knob diameter d1(mm)
- 16
- 20
- 25
- 32
- 40
-
Inner thread size d2(mm)
- M 4
- M 5
- M 6
- M8
- M 8
- M 10
- M 12
-
Diameter of support surface d6(mm)
- 8
- 12
- 15
- 18
- 22
-
Height h(mm)
- 15
- 18
- 22.5
- 29
- 37
-
Thread depth t3(mm)
- 6
- 7.5
- 9
- 12
- 15
Filter by standard shipping days
-
- All
- 4 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
