Precision Levelling Adjusters - Ball Head Precision Adjuster MN 686.9, Standard

Configure

Thread Nominal M(mm)
Type
Optional screw
- M 6
- M 8
- M 10
- M 12
- M 16
- M 20
- M 24
- M 30
- M 36
Height (screwed-in) h(mm)
- 40
- 49
- 61
- 79
- 94
- 105
Max. height h₁(mm)
- 50
- 63
- 79
- 102
- 123
- 144
Adjustable range Δh(mm)
- 10
- 14
- 18
- 23
- 29
- 39
Outer diameter D_m(mm)
- 25
- 32
- 45
- 58
- 70
- 80
Inner diameter d_D(mm)
- 6.6
- 9
- 11
- 13.5
- 17.5
- 22
- 26
- 33
- 39
Max. load (incl. preload) F_tot.(kN)
- 40
- 65
- 120
- 210
- 330
- 495
Load (excl. preload) F_add.(kN)
- 30.7
- 37
- 37.9
- 45.5
- 48
- 53
- 55.7
- 80.4
- 90
- 92.9
- 101
- 136
- 157
- 210
- 218
- 322
Est. shipping days
- All
- Within 4 working days

Precision Levelling Adjusters - Ball Head Precision Adjuster MN 686.9, Standard

Catalog

Part number:

Still undefined. 16 possible part numbers found.

Part number list
More Information
Catalog

Part number list

Number of items

Part number

68690500
68691000
68691500
68692000
68692500
68693000
68693500
68694000
68694500
68695000
68695500
68696000
68696500
68697000
68697500
68698000

Thread Nominal M

(mm)

Type

Optional screw

Height (screwed-in) h

(mm)

Max. height h₁

(mm)

Adjustable range Δh

(mm)

Outer diameter D_m

(mm)

Inner diameter d_D

(mm)

Max. load (incl. preload) F_tot.

(kN)

Load (excl. preload) F_add.

(kN)

Weight

(g)

Minimum order quantity

M 15 x 1.0	MN 686.9 15-6.6	M 6	40	50	10	25	6.6	40	30.7	98	1 pieces
M 20 x 1.0	MN 686.9 20-6.6	M 6	49	63	14	32	6.6	65	55.7	215	1 pieces
M 20 x 1.0	MN 686.9 20-9.0	M 8	49	63	14	32	9	65	48	205	1 pieces
M 20 x 1.0	MN 686.9 20-11.0	M 10	49	63	14	32	11	65	37.9	193	1 pieces
M 30 x 1.5	MN 686.9 30-11.0	M 10	61	79	18	45	11	120	92.9	523	1 pieces
M 30 x 1.5	MN 686.9 30-13.5	M 12	61	79	18	45	13.5	120	80.4	502	1 pieces
M 30 x 1.5	MN 686.9 30-17.5	M 16	61	79	18	45	17.5	120	45.5	462	1 pieces
M 40 x 1.5	MN 686.9 40-17.5	M 16	79	102	23	58	17.5	210	136	1106	1 pieces
M 40 x 1.5	MN 686.9 40-22.0	M 20	79	102	23	58	22	210	90	1027	1 pieces
M 40 x 1.5	MN 686.9 40-26.0	M 24	79	102	23	58	26	210	37	959	1 pieces
M 50 x 1.5	MN 686.9 50-22.0	M 20	94	123	29	70	22	330	210	1978	1 pieces
M 50 x 1.5	MN 686.9 50-26.0	M 24	94	123	29	70	26	330	157	1882	1 pieces
M 50 x 1.5	MN 686.9 50-33.0	M 30	94	123	29	70	33	330	53	1666	1 pieces
M 60 x 2.0	MN 686.9 60-26.0	M 24	105	144	39	80	26	495	322	2747	1 pieces
M 60 x 2.0	MN 686.9 60-33.0	M 30	105	144	39	80	33	495	218	2508	1 pieces
M 60 x 2.0	MN 686.9 60-39.0	M 36	105	144	39	80	39	495	101	2280	1 pieces

Unit price (excluding VAT)(Unit price including VAT)	Standard shipping days

79.79 € ( 94.95 € )	4 working days
83.89 € ( 99.83 € )	4 working days
84.01 € ( 99.97 € )	4 working days
84.01 € ( 99.97 € )	4 working days
98.06 € ( 116.69 € )	4 working days
98.16 € ( 116.81 € )	4 working days
98.17 € ( 116.82 € )	4 working days
111.06 € ( 132.16 € )	4 working days
111.06 € ( 132.16 € )	4 working days
111.01 € ( 132.10 € )	4 working days
159.25 € ( 189.51 € )	4 working days
159.21 € ( 189.46 € )	4 working days
159.21 € ( 189.46 € )	4 working days
214.22 € ( 254.92 € )	4 working days
214.20 € ( 254.90 € )	4 working days
214.23 € ( 254.93 € )	4 working days

More Information

Basic information

Basic information

Material:
Standard version: 42CrMo4V, No. 1.7225, zinc-plated and blue passivated.
• For non-parallel surfaces up to 4° slope.
• Larger overall height with more adjustment travel.
• With lock nut.

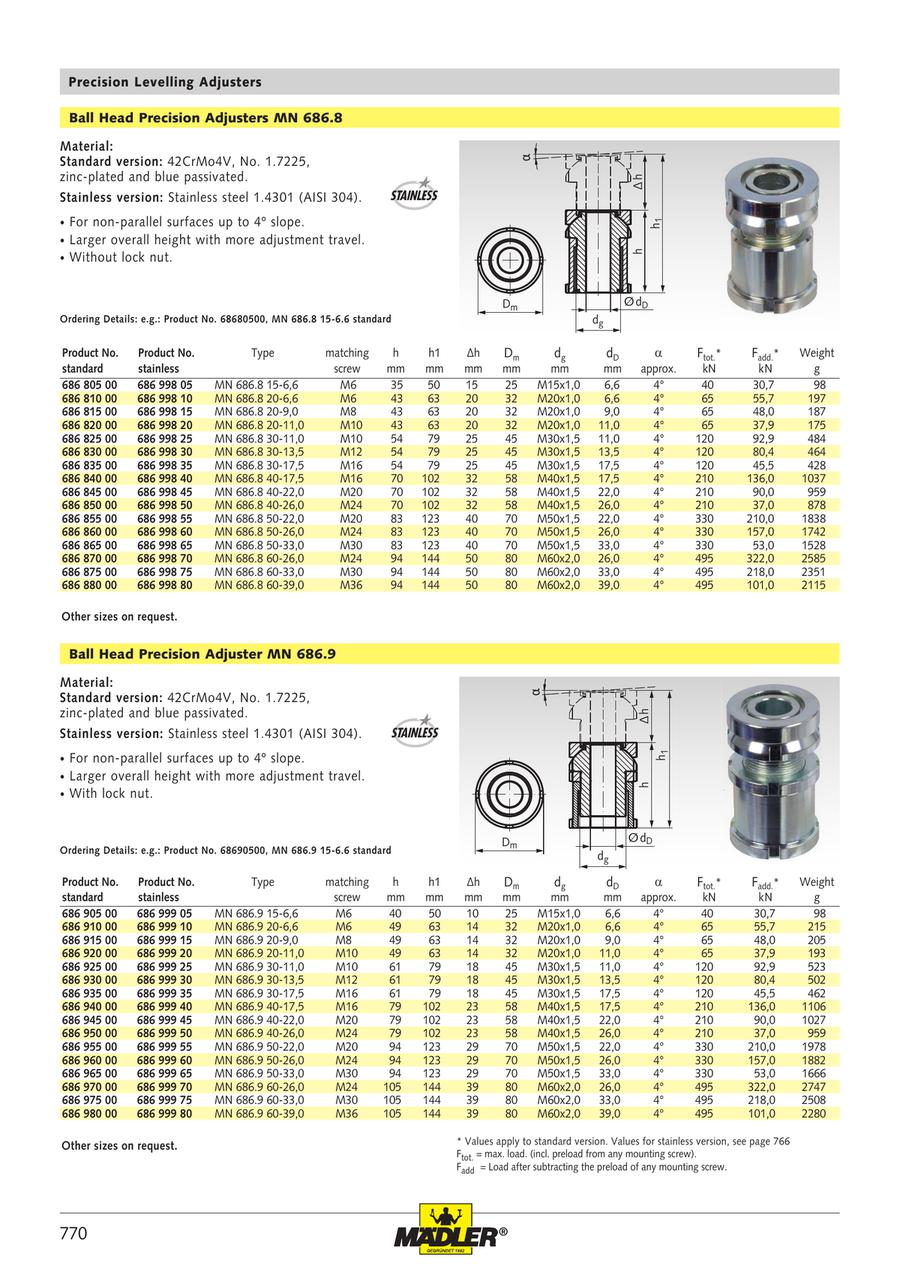

Catalog
