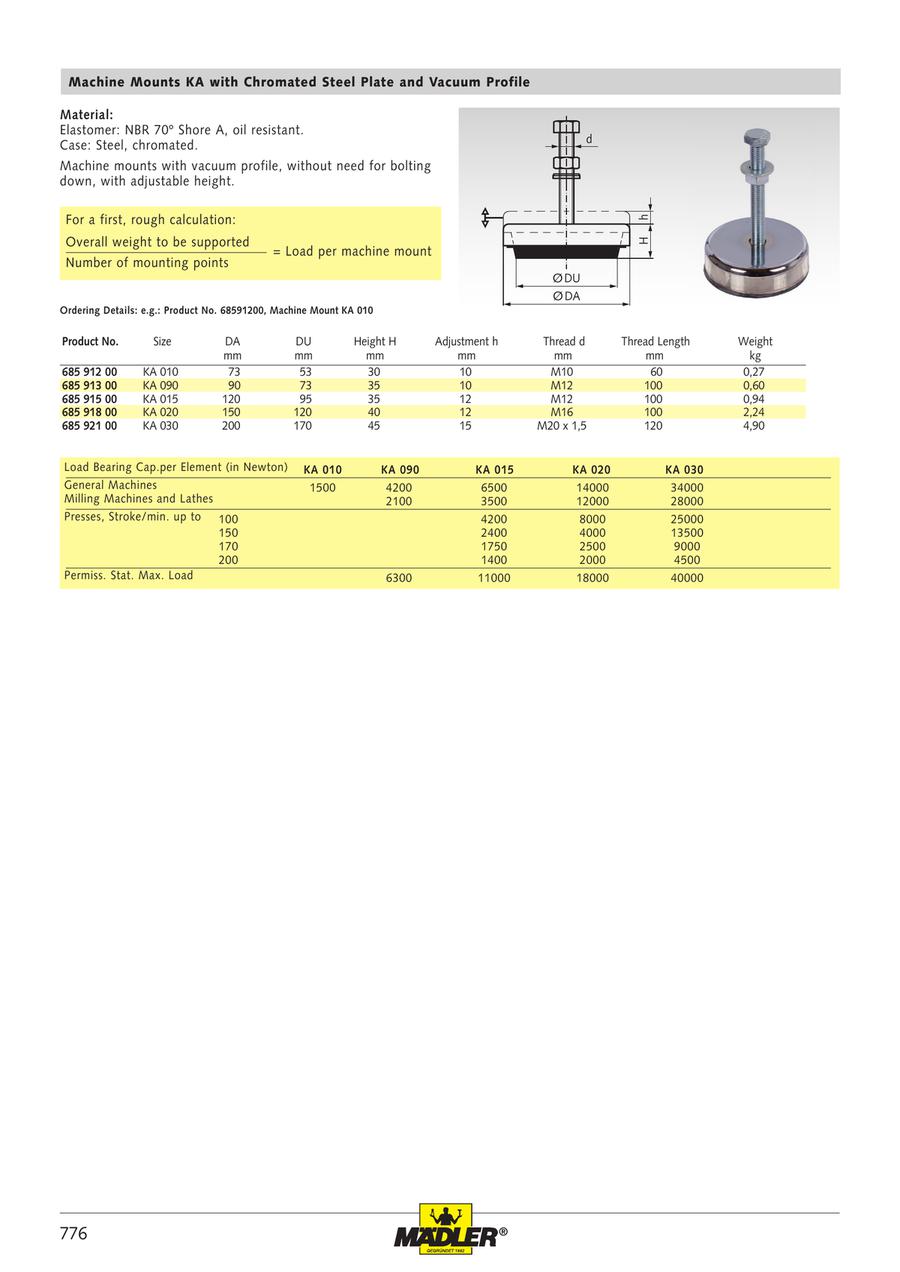

Machine Mounts KA with Chromated Steel Plate and Vacuum Profile

Machine Mounts KA with Chromated Steel Plate and Vacuum Profile

Part number:

Still undefined. 5 possible part numbers found.
Quantity:

Part number list

Number of items
  • 1
    • Part number
    68591200
    68591300
    68591500
    68591800
    68592100

    Size

    Outer diameter DA

    (mm)

    DU

    (mm)

    Height H

    (mm)

    Levelling h

    (mm)

    Thread size d

    (mm)

    Thread length

    (mm)

    Weight

    (kg)

    		Minimum order quantity
    KA_010
    73
    53
    30
    10
    M 10
    60
    0.27
    1 pieces
    KA_090
    90
    73
    35
    10
    M 12
    100
    0.6
    1 pieces
    KA_015
    120
    95
    35
    12
    M 12
    100
    0.94
    1 pieces
    KA_020
    150
    120
    40
    12
    M 16
    100
    2.24
    1 pieces
    KA_030
    200
    170
    45
    15
    M 20 x 1.5
    120
    4.9
    1 pieces
    Unit price (excluding VAT)(Unit price including VAT)
    Standard shipping days
    24.64 €
    ( 29.32 € )
    4 working days
    37.44 €
    ( 44.55 € )
    4 working days
    46.78 €
    ( 55.67 € )
    4 working days
    71.60 €
    ( 85.20 € )
    4 working days
    78.57 €
    ( 93.50 € )
    4 working days
  • 1

    • More Information

    Basic information

    Material:
    Elastomer: NBR 70° Shore A, oil resistant.
    Case: Steel, chromated.
    Machine mounts with vacuum profile, without need for bolting down, with adjustable height.
