MAEDLER

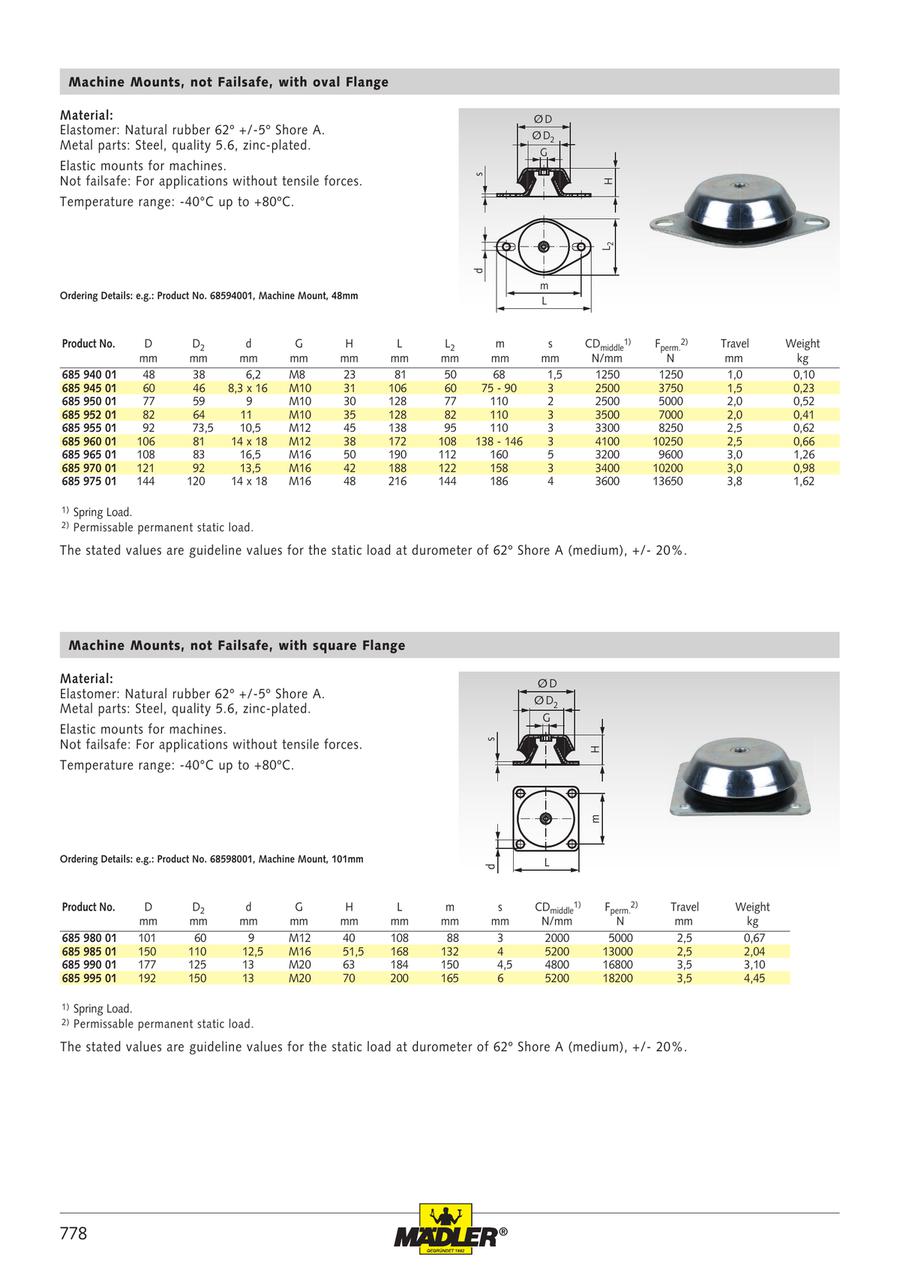

Machine Mounts, Not Failsafe, with Square Flange

Machine Mounts, Not Failsafe, with Square Flange

Part number:

Still undefined. 4 possible part numbers found.
Quantity:

Part number list

Number of items
  • 1
    • Part number
    68598001
    68598501
    68599001
    68599501

    Outer diameter D

    (mm)

    D2

    (mm)

    d

    (mm)

    Inner thread size G

    (mm)

    Height H

    (mm)

    Length L

    (mm)

    m

    (mm)

    s

    (mm)

    Spring rate (medium) for pressure load CD

    (N/mm)

    Pressure load Fperm.

    (N)

    Spring range+/-20% at Fperm.

    (mm)

    Weight

    (kg)

    		Minimum order quantity
    101
    60
    9
    M 12
    40
    108
    88
    3
    2000
    5000
    2.5
    0.67
    1 pieces
    150
    110
    12.5
    M 16
    51.5
    168
    132
    4
    5200
    13000
    2.5
    2.04
    1 pieces
    177
    125
    13
    M 20
    63
    184
    150
    4.5
    4800
    16800
    3.5
    3.1
    1 pieces
    192
    150
    13
    M 20
    70
    200
    165
    6
    5200
    18200
    3.5
    4.45
    1 pieces
    Unit price (excluding VAT)(Unit price including VAT)
    Standard shipping days
    22.19 €
    ( 26.41 € )
    4 working days
    45.31 €
    ( 53.92 € )
    4 working days
    66.56 €
    ( 79.21 € )
    4 working days
    95.05 €
    ( 113.11 € )
    4 working days
  • 1

    • More Information

    Basic information

    Material:
    Elastomer: Natural rubber 62° +/-5° Shore A.
    Metal parts: Steel, quality 5.6, zinc-plated.
    Elastic mounts for machines.
    Not failsafe: For applications without tensile forces.
    Temperature range: -40°C up to +80°C.
