Heavy-Duty Rod Ends BR with Spherical Bearing DIN ISO 12240-4 Series K, Stainless Steel, External Thread

Part number:

Still undefined. 10 possible part numbers found.
Quantity:

Part number list

Number of items

Allowable Tilt Angle α

(deg)

Thread type

Bore dH7

(mm)

B-0.1

(mm)

C1

(mm)

Outer diameter d2

(mm)

Center distance to mounting surface h

(mm)

l1

(mm)

Thread size G

(mm)

Thread pitch

(mm)

Load rating dyn. C

(kN)

Static Load rating Co

(kN)

Calculation factor Y

Calculation factor Yo

Max. speed nmax.

(min-1)

Weight

(g)

Minimum order quantity
8.5
Right
8
12
9
24
42
25
M 8
1.25
2.8
0.7
1.8
1.89
1300
36
1 pieces
8
Right
10
14
10.5
28
48
29
M 10
1.5
3.1
1
1.9
1.81
1225
60
1 pieces
7.5
Right
12
16
12
32
54
33
M 12
1.75
3.5
1.3
1.74
1.82
1125
87
1 pieces
8
Right
16
21
15
42
66
40
M 16
2
4.3
1.6
2.24
2.35
975
190
1 pieces
7
Right
20
25
18
50
78
47
M 20 x 1.5
1.5
5.4
2.3
2.46
2.58
825
338
1 pieces
8.5
Left
8
12
9
24
42
25
M 8
1.25
2.8
0.7
1.8
1.89
1300
36
1 pieces
8
Left
10
14
10.5
28
48
29
M 10
1.5
3.1
1
1.9
1.81
1225
60
1 pieces
7.5
Left
12
16
12
32
54
33
M 12
1.75
3.5
1.3
1.74
1.82
1125
87
1 pieces
8
Left
16
21
15
42
66
40
M 16
2
4.3
1.6
2.24
2.35
975
190
1 pieces
7
Left
20
25
18
50
78
47
M 20 x 1.5
1.5
5.4
2.3
2.46
2.58
825
338
1 pieces
Unit price (excluding VAT)(Unit price including VAT)
Standard shipping days
82.89 €
( 98.64 € )
4 working days
90.83 €
( 108.09 € )
4 working days
106.20 €
( 126.38 € )
4 working days
127.75 €
( 152.02 € )
4 working days
167.49 €
( 199.31 € )
4 working days
82.89 €
( 98.64 € )
4 working days
90.83 €
( 108.09 € )
4 working days
106.20 €
( 126.38 € )
4 working days
127.75 €
( 152.02 € )
4 working days
167.49 €
( 199.31 € )
4 working days

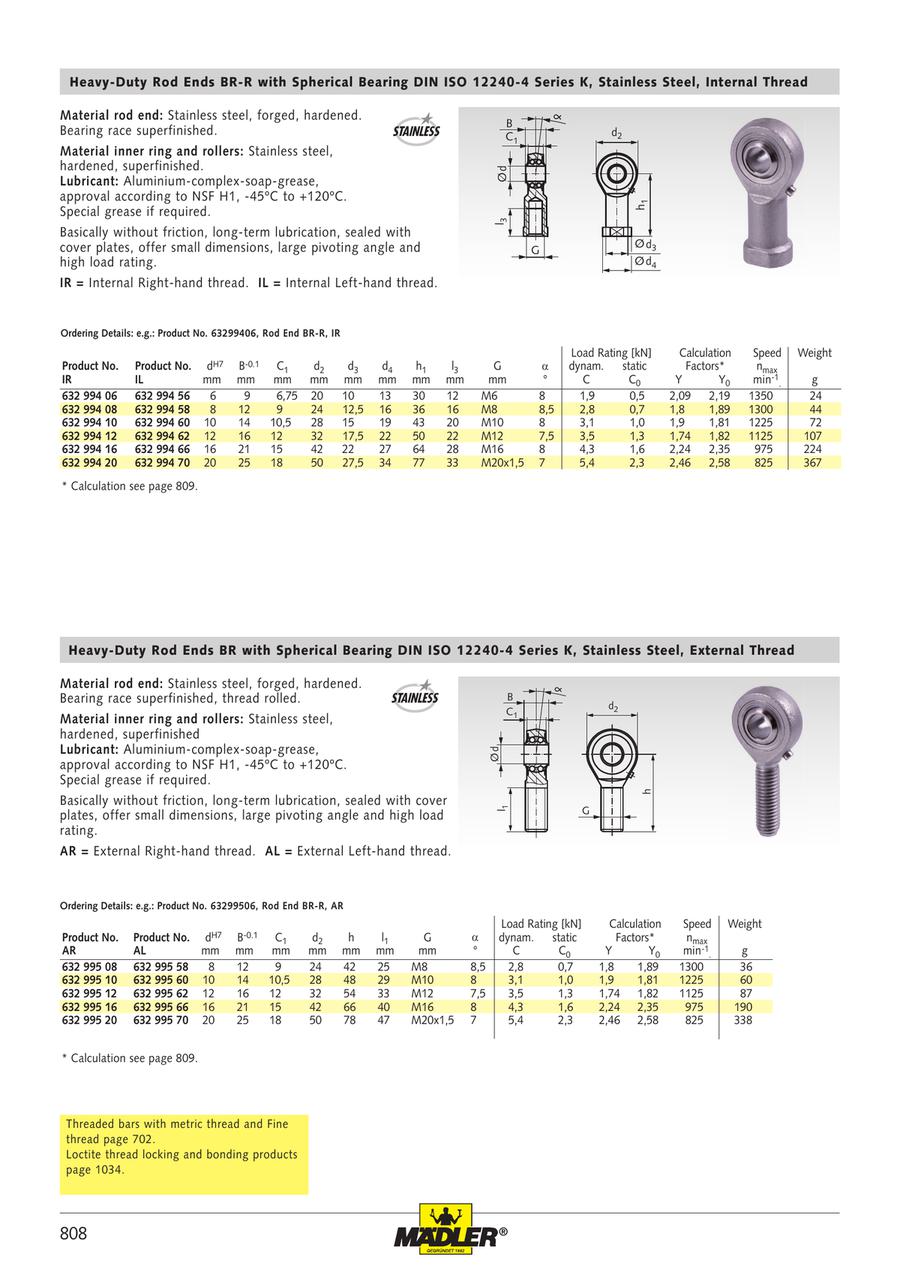

More Information

Basic information

Material rod end: Stainless steel, forged, hardened. Bearing race superfinished, thread rolled.
Material inner ring and rollers: Stainless steel, hardened, superfinished.
Lubricant: Aluminium-complex-soap-grease, approval according to NSF H1, -45ºC to +120ºC.
Special grease if required.
Basically without friction, long-term lubrication, sealed with cover plates, offer small dimensions, large pivoting angle and high load rating.
AR = External Right-hand thread. AL = External Left-hand thread.
