MAEDLER

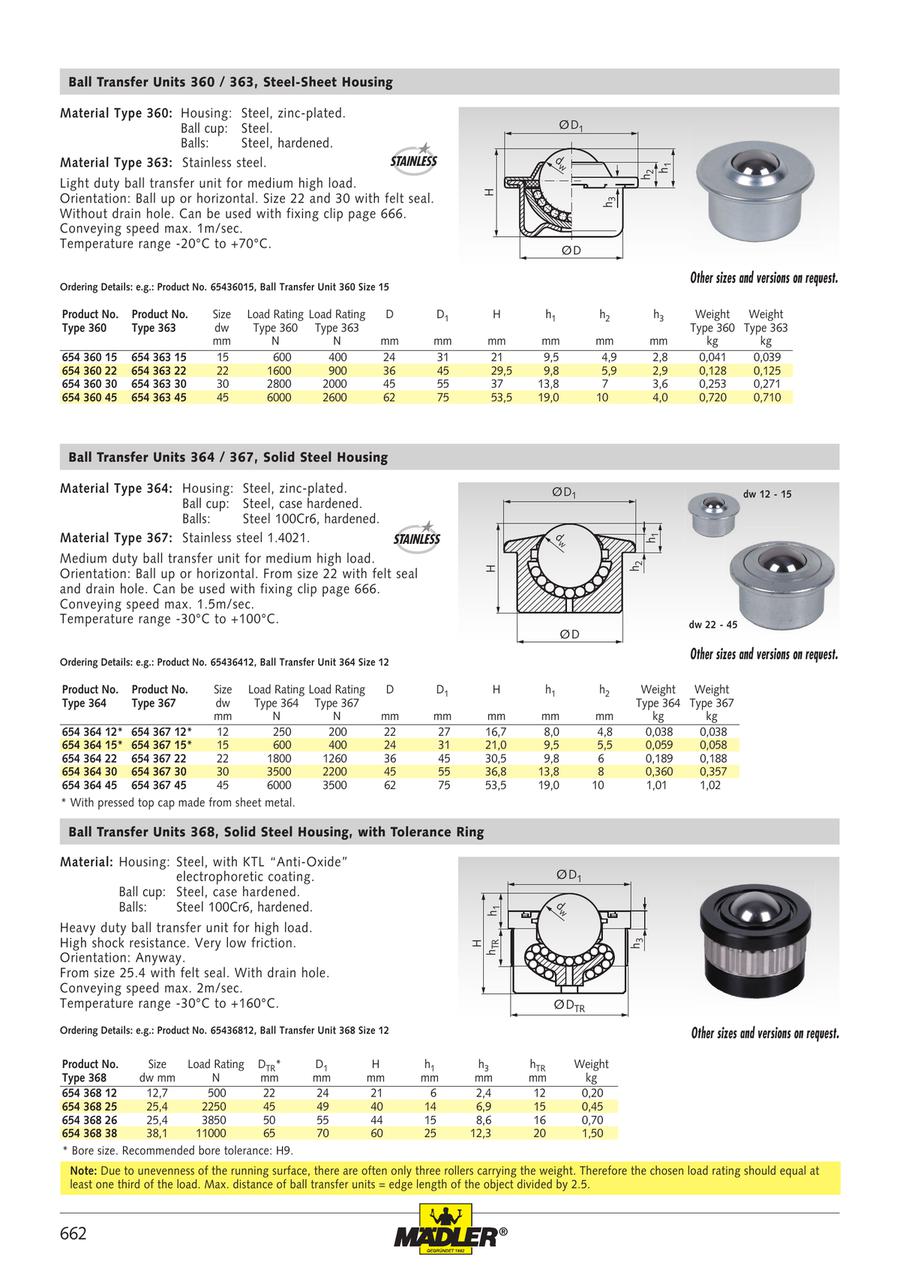

Ball Transfer Units 360, Steel-Sheet Housing

Ball Transfer Units 360, Steel-Sheet Housing

Part number:

Still undefined. 4 possible part numbers found.
Quantity:

Part number list

Number of items
  • 1
    • Part number
    65436015
    65436022
    65436030
    65436045

    Size dw

    (mm)

    Load rating

    (N)

    Outer diameter mounting surface D

    (mm)

    Outer diameter support surface D1

    (mm)

    Total height H

    (mm)

    Overhang with ball h1

    (mm)

    Overhang without ball h2

    (mm)

    Thickness of support surface h3

    (mm)

    Weight

    (kg)

    		Minimum order quantity
    15
    600
    24
    31
    21
    9.5
    4.9
    2.8
    0.041
    1 pieces
    22
    1600
    36
    45
    29.5
    9.8
    5.9
    2.9
    0.128
    1 pieces
    30
    2800
    45
    55
    37
    13.8
    7
    3.6
    0.253
    1 pieces
    45
    6000
    62
    75
    53.5
    19
    10
    4
    0.72
    1 pieces
    Unit price (excluding VAT)(Unit price including VAT)
    Standard shipping days
    8.10 €
    ( 9.64 € )
    4 working days
    14.85 €
    ( 17.67 € )
    4 working days
    19.33 €
    ( 23.00 € )
    4 working days
    74.71 €
    ( 88.90 € )
    4 working days
  • 1

    • More Information

    Basic information

    Material Type 360: Housing: Steel, zinc-plated.
    Ball cup: Steel.
    Balls: Steel, hardened.
    Light duty ball transfer unit for medium high load. Orientation: Ball up or horizontal. Size 22 and 30 with felt seal. Without drain hole. Can be used with fixing clip.
    Conveying speed max. 1m/sec.
    Temperature range -20°C to +70°C.
