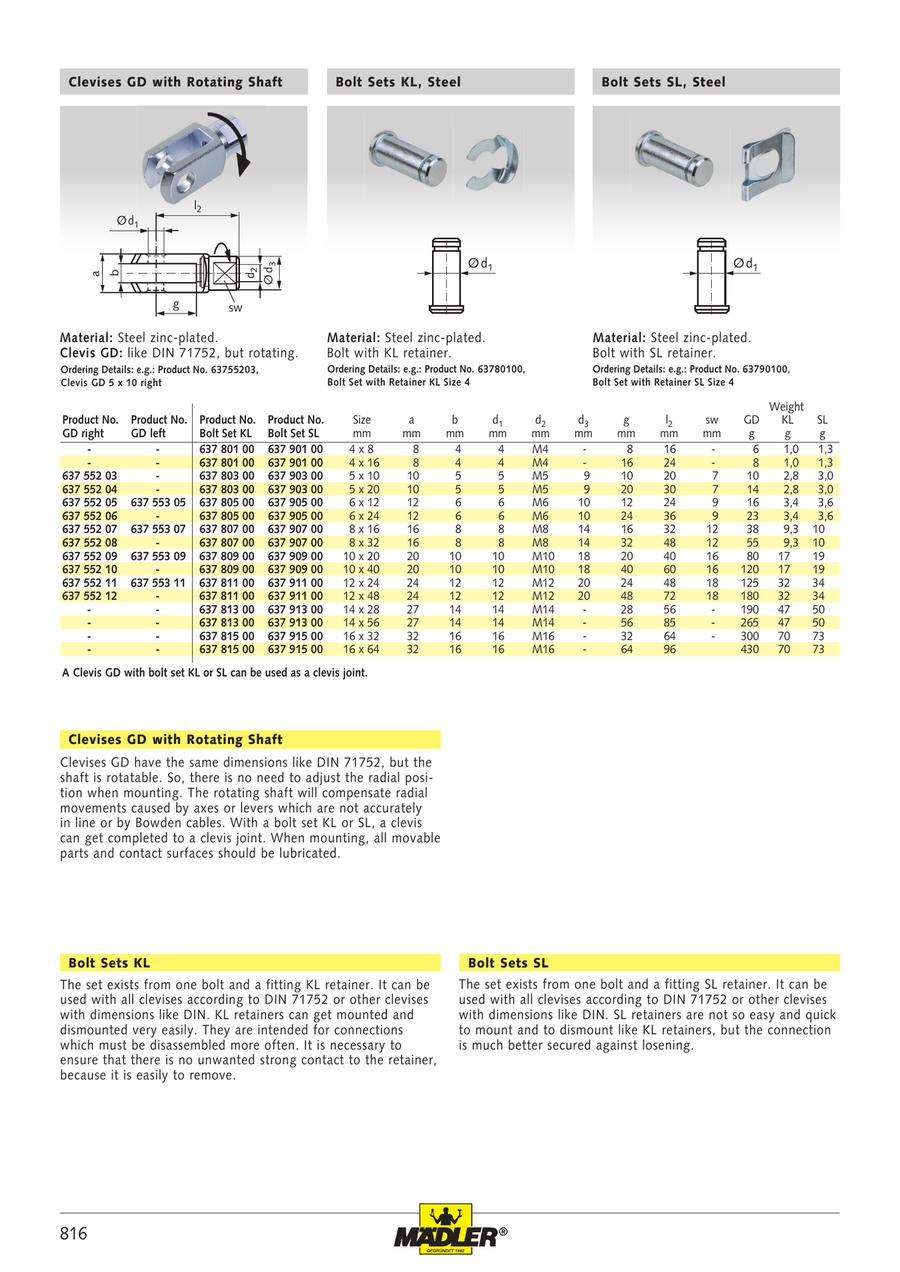

Clevises GD with Rotating Shaft

Clevises GD with Rotating Shaft

Part number:

Still undefined. 14 possible part numbers found.
Quantity:

Part number list

Number of items
  • 1
    • Part number
    63755203
    63755204
    63755205
    63755206
    63755207
    63755208
    63755209
    63755210
    63755211
    63755212
    63755305
    63755307
    63755309
    63755311

    Thread type

    Size

    Outer width a

    (mm)

    Inner width b

    (mm)

    Hole diameter for bolts d1

    (mm)

    Thread size d2

    (mm)

    d3

    (mm)

    g

    (mm)

    Center distance to mounting surface l2

    (mm)

    sw

    (mm)

    Optional KL-Bolt (Part no.)

    Suitable SL-Bolt (Part no.)

    Weight

    (g)

    		Minimum order quantity
    Right
    5 x 10
    10
    5
    5
    M 5
    9
    10
    20
    7
    63780300
    63790300
    10
    1 pieces
    Right
    5 x 20
    10
    5
    5
    M 5
    9
    20
    30
    7
    63780300
    63790300
    14
    1 pieces
    Right
    6 x 12
    12
    6
    6
    M 6
    10
    12
    24
    9
    63780500
    63790500
    16
    1 pieces
    Right
    6 x 24
    12
    6
    6
    M 6
    10
    24
    36
    9
    63780500
    63790500
    23
    1 pieces
    Right
    8 x 16
    16
    8
    8
    M 8
    14
    16
    32
    12
    63780700
    63790700
    38
    1 pieces
    Right
    8 x 32
    16
    8
    8
    M 8
    14
    32
    48
    12
    63780700
    63790700
    55
    1 pieces
    Right
    10 x 20
    20
    10
    10
    M 10
    18
    20
    40
    16
    63780900
    63790900
    80
    1 pieces
    Right
    10 x 40
    20
    10
    10
    M 10
    18
    40
    60
    16
    63780900
    63790900
    120
    1 pieces
    Right
    12 x 24
    24
    12
    12
    M 12
    20
    24
    48
    18
    63781100
    63791100
    125
    1 pieces
    Right
    12 x 48
    24
    12
    12
    M 12
    20
    48
    72
    18
    63781100
    63791100
    180
    1 pieces
    Right
    6 x 12
    12
    6
    6
    M 6
    10
    12
    24
    9
    63780500
    63790500
    16
    1 pieces
    Left
    8 x 16
    16
    8
    8
    M 8
    14
    16
    32
    12
    63780700
    63790700
    38
    1 pieces
    Left
    10 x 20
    20
    10
    10
    M 10
    18
    20
    40
    16
    63780900
    63790900
    80
    1 pieces
    Left
    12 x 24
    24
    12
    12
    M 12
    20
    24
    48
    18
    63781100
    63791100
    125
    1 pieces
    Unit price (excluding VAT)(Unit price including VAT)
    Standard shipping days
    2.38 €
    ( 2.83 € )
    4 working days
    2.62 €
    ( 3.12 € )
    4 working days
    2.82 €
    ( 3.36 € )
    4 working days
    3.05 €
    ( 3.63 € )
    4 working days
    3.81 €
    ( 4.53 € )
    4 working days
    4.27 €
    ( 5.08 € )
    4 working days
    5.21 €
    ( 6.20 € )
    4 working days
    6.44 €
    ( 7.66 € )
    4 working days
    7.72 €
    ( 9.19 € )
    4 working days
    10.34 €
    ( 12.30 € )
    4 working days
    2.82 €
    ( 3.36 € )
    4 working days
    3.81 €
    ( 4.53 € )
    4 working days
    5.21 €
    ( 6.20 € )
    4 working days
    7.72 €
    ( 9.19 € )
    4 working days
  • 1

    • More Information

    Basic information

    Material: Steel zinc-plated.
    Clevis GD: like DIN 71752, but rotating.
