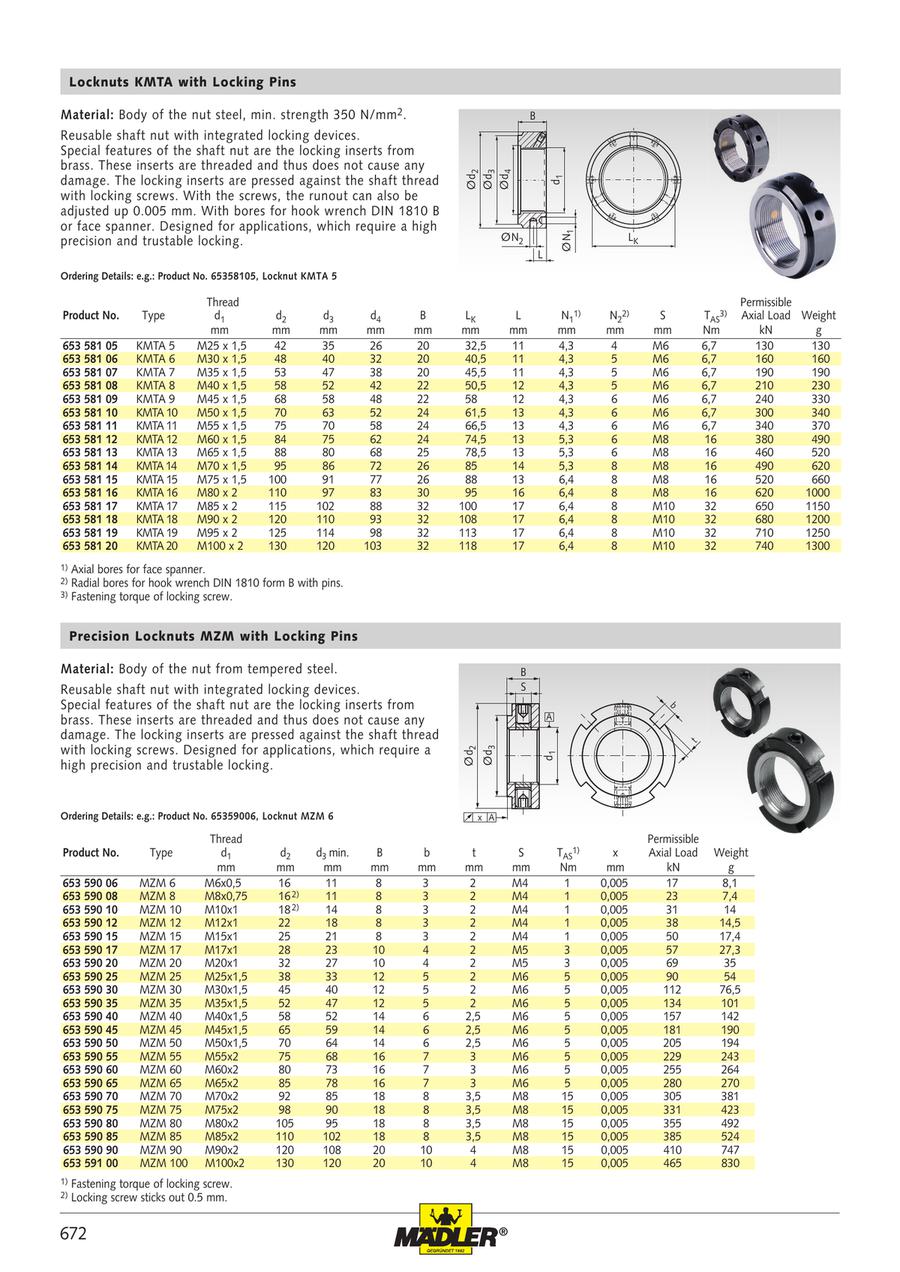

Locknuts KMTA with Locking Pins
- Volume Discount
Reusable shaft nut with integrated locking devices. Special features of the shaft nut are the locking inserts from brass. These inserts are threaded and thus does not cause any damage. The locking inserts are pressed against the shaft thread with locking screws. With the screws, the runout can also be adjusted up 0.005 mm. With bores for hook wrench DIN 1810 B or face spanner. Designed for applications, which require a high precision and trustable locking.
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
Part Number
|
|---|
| 65358105 |
| 65358106 |
| 65358107 |
| 65358108 |
| 65358109 |
| 65358110 |
| 65358111 |
| 65358112 |
| 65358113 |
| 65358114 |
| 65358115 |
| 65358116 |
| 65358117 |
| 65358118 |
| 65358119 |
| 65358120 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Type | Thread size x Slope d1 (mm) | d2 (mm) | d3 (mm) | d4 (mm) | B (mm) | LK (mm) | L (mm) | Axial bores for face spanner N1 (mm) | Radial holes for hook wrench DIN 1810 form B with pins N2 (mm) | S (mm) | Tightening torque TAS (Nm) | Permissible axial load (kN) | Weight (g) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
39.50 € | 1 | Available | 4 Days | KMTA 5 | M 25x1.5 | 42 | 35 | 26 | 20 | 32.5 | 11 | 4.3 | 4 | M 6 | 8 | 130 | 130 | |
42.19 € | 1 | Available | 4 Days | KMTA 6 | M 30x1.5 | 48 | 40 | 32 | 20 | 40.5 | 11 | 4.3 | 5 | M 6 | 8 | 160 | 160 | |
44.48 € | 1 | Available | 4 Days | KMTA 7 | M 35x1.5 | 53 | 47 | 38 | 20 | 45.5 | 11 | 4.3 | 5 | M 6 | 8 | 190 | 190 | |
45.48 € | 1 | Available | 4 Days | KMTA 8 | M 40x1.5 | 58 | 52 | 42 | 22 | 50.5 | 12 | 4.3 | 5 | M 6 | 8 | 210 | 230 | |
47.55 € | 1 | Available | 4 Days | KMTA 9 | M 45x1.5 | 68 | 58 | 48 | 22 | 58 | 12 | 4.3 | 6 | M 6 | 8 | 240 | 330 | |
51.76 € | 1 | Available | 4 Days | KMTA 10 | M 50x1.5 | 70 | 63 | 52 | 24 | 61.5 | 13 | 4.3 | 6 | M 6 | 8 | 300 | 340 | |
57.48 € | 1 | Available | 4 Days | KMTA 11 | M 55x1.5 | 75 | 70 | 58 | 24 | 66.5 | 13 | 4.3 | 6 | M 6 | 8 | 340 | 370 | |
62.36 € | 1 | Available | 4 Days | KMTA 12 | M 60x1.5 | 84 | 75 | 62 | 24 | 74.5 | 13 | 5.3 | 6 | M 8 | 18 | 380 | 490 | |
68.11 € | 1 | Available | 4 Days | KMTA 13 | M 65x1.5 | 88 | 80 | 68 | 25 | 78.5 | 13 | 5.3 | 6 | M 8 | 18 | 460 | 520 | |
75.14 € | 1 | Available | 4 Days | KMTA 14 | M 70x1.5 | 95 | 86 | 72 | 26 | 85 | 14 | 5.3 | 8 | M 8 | 18 | 490 | 620 | |
81.36 € | 1 | Available | 4 Days | KMTA 15 | M 75x1.5 | 100 | 91 | 77 | 26 | 88 | 13 | 6.4 | 8 | M 8 | 18 | 520 | 660 | |
90.40 € | 1 | Available | 4 Days | KMTA 16 | M 80x2 | 110 | 97 | 83 | 30 | 95 | 16 | 6.4 | 8 | M 8 | 18 | 620 | 1000 | |
98.93 € | 1 | Available | 4 Days | KMTA 17 | M 85x2 | 115 | 102 | 88 | 32 | 100 | 17 | 6.4 | 8 | M 10 | 35 | 650 | 1150 | |
110.62 € | 1 | Available | 4 Days | KMTA 18 | M 90x2 | 120 | 110 | 93 | 32 | 108 | 17 | 6.4 | 8 | M 10 | 35 | 680 | 1200 | |
119.10 € | 1 | Available | 4 Days | KMTA 19 | M 95x2 | 125 | 114 | 98 | 32 | 113 | 17 | 6.4 | 8 | M 10 | 35 | 710 | 1250 | |
131.84 € | 1 | Available | 4 Days | KMTA 20 | M 100x2 | 130 | 120 | 103 | 32 | 118 | 17 | 6.4 | 8 | M 10 | 35 | 740 | 1300 |
Loading...
Basic information
| Type | Lock Nuts with Tooth Lock Washer | Material | Steel / Brass | Surface Treatment | Black Oxide |
|---|
Configure
Basic Attributes
-
Type
-
Thread size x Slope d1(mm)
-
d2(mm)
-
d3(mm)
-
d4(mm)
-
B(mm)
-
LK(mm)
-
L(mm)
- 11
- 12
- 13
- 14
- 16
- 17
-
Axial bores for face spanner N1(mm)
- 4.3
- 5.3
- 6.4
-
Radial holes for hook wrench DIN 1810 form B with pins N2(mm)
- 4
- 5
- 6
- 8
-
S(mm)
- M 6
- M 8
- M 10
-
Tightening torque TAS(Nm)
- 8
- 18
- 35
-
Permissible axial load(kN)
Filter by standard shipping days
-
- All
- 4 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
