Locknuts KMMR, Single-Splitted, with Clamp Screw

Catalog

Part number:

Still undefined. 22 possible part numbers found.

Part number list
More Information
Catalog

Part number list

Number of items

Part number

Type

Thread size x Pitch d₁

(mm)

Outer diameter d₂

(mm)

Hub diameter d₃

(mm)

Max. outer diameter over screw head R

(mm)

Width h

(mm)

Screw DIN 912

Weight

(g)

Minimum order quantity

KMM0	M 10x0.75	25	20	26.2	9.8	5	2	M 3 x 12	27	1 pieces
KMM0a	M 10x1	25	20	26.2	9.8	5	2	M 3 x 12	27	1 pieces
KMM1	M 12x1	28	23	28.2	9.8	5	2	M 3 x 12	33	1 pieces
KMM1a	M 12x1.5	28	23	28.2	9.8	5	2	M 3 x 12	33	1 pieces
KMM2	M 15x1	30	25	31.5	9.8	5	2	M 3 x 12	37	1 pieces
KMM2a	M 16x1.5	32	27	35.8	11.5	5	2	M 4 x 15	49	1 pieces
KMM3	M 17x1	34	28	37	11.5	6	2.5	M 4 x 15	53	1 pieces
KMM4	M 20x1	38	30	39.8	11.5	6	2.5	M 4 x 15	64	1 pieces
KMM4a	M 20x1.5	38	30	39.8	11.5	6	2.5	M 4 x 15	65	1 pieces
KMM4c	M 24x1.5	42	36	47.6	13.5	6	2.5	M 5 x 18	88	1 pieces
KMM5	M 25x1.5	45	38	48.8	13.5	7	3	M 5 x 18	102	1 pieces
KMM5a	M 28x1.5	50	43	52.2	13.5	7	3	M 5 x 18	126	1 pieces
KMM6	M 30x1.5	50	43	54	13.5	7	3	M 5 x 20	119	1 pieces
KMM6a	M 32x1.5	52	45	56.4	13.5	7	3	M 5 x 20	125	1 pieces
KMM7	M 35x1.5	55	48	58.8	13.5	7	3	M 5 x 20	132	1 pieces
KMM7a	M 38x1.5	60	50	62.4	13.5	8	3.5	M 5 x 20	160	1 pieces
KMM8	M 40x1.5	62	54	64.2	13.5	8	3.5	M 5 x 20	167	1 pieces
KMM9	M 45x1.5	68	60	69	13.5	8	3.5	M 5 x 20	196	1 pieces
KMM9a	M 48x1.5	75	67	75.7	14.5	8	3.5	M 6 x 25	270	1 pieces
KMM10	M 50x1.5	75	67	77.7	14.5	8	3.5	M 6 x 25	257	1 pieces
KMM11a	M 55x1.5	80	70	82.6	14.5	10	4	M 6 x 25	273	1 pieces
KMM12a	M 60x1.5	90	80	-	14.5	10	4	M 6 x 25	362	1 pieces

Unit price (excluding VAT)(Unit price including VAT)	Standard shipping days

13.08 € ( 15.57 € )	4 working days
13.08 € ( 15.57 € )	4 working days
13.81 € ( 16.43 € )	4 working days
13.85 € ( 16.48 € )	4 working days
13.54 € ( 16.11 € )	4 working days
14.72 € ( 17.52 € )	4 working days
16.09 € ( 19.15 € )	4 working days
16.69 € ( 19.86 € )	4 working days
17.10 € ( 20.35 € )	4 working days
18.98 € ( 22.59 € )	4 working days
21.02 € ( 25.01 € )	4 working days
22.80 € ( 27.13 € )	4 working days
23.68 € ( 28.18 € )	4 working days
24.77 € ( 29.48 € )	4 working days
25.29 € ( 30.10 € )	4 working days
26.50 € ( 31.54 € )	4 working days
27.89 € ( 33.19 € )	4 working days
31.32 € ( 37.27 € )	4 working days
34.70 € ( 41.29 € )	4 working days
35.94 € ( 42.77 € )	4 working days
40.00 € ( 47.60 € )	4 working days
45.27 € ( 53.87 € )	4 working days

More Information

Basic information

Basic information

Material KMMR: Stainless steel 1.4301 (AISI 304).
Screw stainless steel A2-70.
Shaft nuts with 4 slots, with clamp slot and clamp screw. With metric fine thread. They are used for fixing bearings or as adjusting nuts. The threads are like locknuts DIN 981 respectively DIN 1804. Please note the pitch, specified in the thread size d₁.
Recommend tolerance for the shaft thread: 6g DIN ISO 965.

Catalog

Products homepage

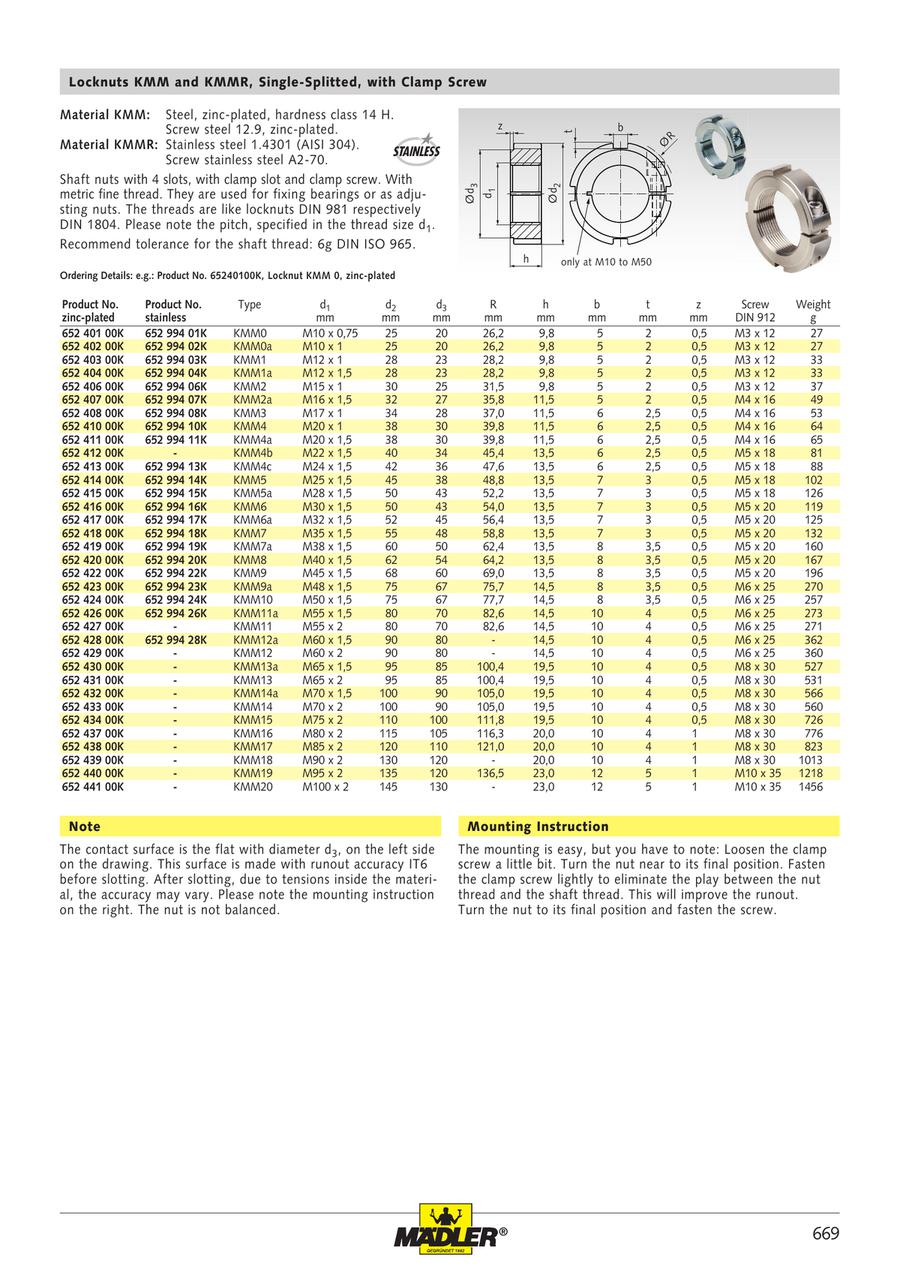

Catalog (2-page spread)
