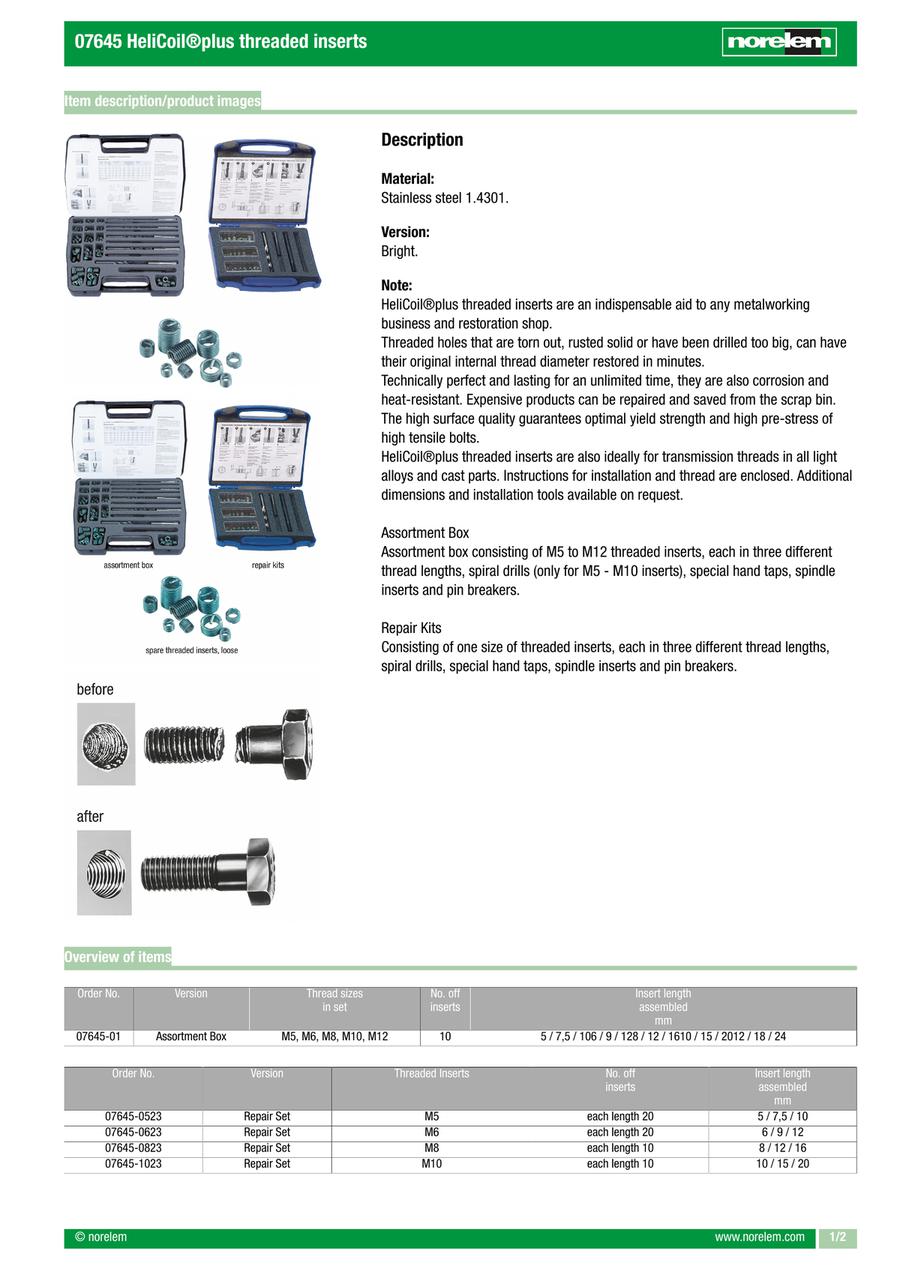

HeliCoil®plus threaded inserts (07645)
· For making high-strength screw connections in materials with low shear strength
· Resistant to corrosive action and thermal stress
· High surface quality
· Consisting of various threaded inserts
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Item | Insert length assembled (mm) | No. off inserts | Thread sizes in set | G=Threaded insert | Order No. loose spare Threaded Inserts | Weight (ERP) (kg) | |
|---|---|---|---|---|---|---|---|---|---|---|---|
623.72 € | 1 | 4 Days | Assortment Box | 5 / 7.5 / 106 / 9 / 128 / 12 / 1610 / 15 / 2012 / 18 / 24 | 10 | M5, M6, M8, M10, M12 | - | - | 2.3920 | ||
1.26 € | 1 | 4 Days | Spare Inserts | 5 | - | - | M5 | - | 0.0002 | ||
125.44 € | 1 | 4 Days | Repair Set | 5 / 7.5 / 10 | each length 20 | - | M5 | 07645-0521 | 0.3220 | ||
1.31 € | 1 | 4 Days | Spare Inserts | 7.5 | - | - | M5 | - | 0.0003 | ||
1.44 € | 1 | 4 Days | Spare Inserts | 10 | - | - | M5 | - | 0.0005 | ||
1.23 € | 1 | 4 Days | Spare Inserts | 6 | - | - | M6 | - | 0.0004 | ||
111.38 € | 1 | 4 Days | Repair Set | 6 / 9 / 12 | each length 20 | - | M6 | 07645-0621 | 0.3444 | ||
1.42 € | 1 | 4 Days | Spare Inserts | 9 | - | - | M6 | - | 0.0007 | ||
1.60 € | 1 | 4 Days | Spare Inserts | 12 | - | - | M6 | - | 0.0085 | ||
1.34 € | 1 | 4 Days | Spare Inserts | 8 | - | - | M8 | - | 0.0010 | ||
110.50 € | 1 | 4 Days | Repair Set | 8 / 12 / 16 | each length 10 | - | M8 | 07645-0821 | 0.3742 | ||
1.56 € | 1 | 4 Days | Spare Inserts | 12 | - | - | M8 | - | 0.0015 | ||
1.74 € | 1 | 4 Days | Spare Inserts | 16 | - | - | M8 | - | 0.0019 | ||
1.82 € | 1 | 4 Days | Spare Inserts | 10 | - | - | M10 | - | 0.0016 | ||
134.63 € | 1 | 4 Days | Repair Set | 10 / 15 / 20 | each length 10 | - | M10 | 07645-1021 | 0.5861 | ||
2.13 € | 1 | 4 Days | Spare Inserts | 15 | - | - | M10 | - | 0.0027 | ||
2.43 € | 1 | 4 Days | Spare Inserts | 20 | - | - | M10 | - | 0.0039 | ||
4.28 € | 1 | 4 Days | Spare Inserts | 12 | - | - | M12 | - | 0.0031 | ||
139.24 € | 1 | 4 Days | Repair Set | 12 / 18 / 24 | each length 10 | - | M12 | 07645-1221 | 0.7386 | ||
5.04 € | 1 | 4 Days | Spare Inserts | 18 | - | - | M12 | - | 0.0047 | ||
5.70 € | 1 | 4 Days | Spare Inserts | 24 | - | - | M12 | - | 0.0065 |
Loading...
Basic information
| Main material | stainless steel | Version 1 | helicoil® | PL Edelstahl | yes |
|---|
Configure
Basic Attributes
-
Item
- Assortment Box
- Repair Set
- Spare Inserts
-
Insert length assembled(mm)
-
No. off inserts
- 10
- each length 10
- each length 20
-
Thread sizes in set
- M5, M6, M8, M10, M12
-
G=Threaded insert
- M5
- M6
- M8
- M10
- M12
-
Order No. loose spare Threaded Inserts
- 07645-1221
- 07645-1021
- 07645-0821
- 07645-0621
- 07645-0521
Filter by standard shipping days
-
- All
- 4 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
