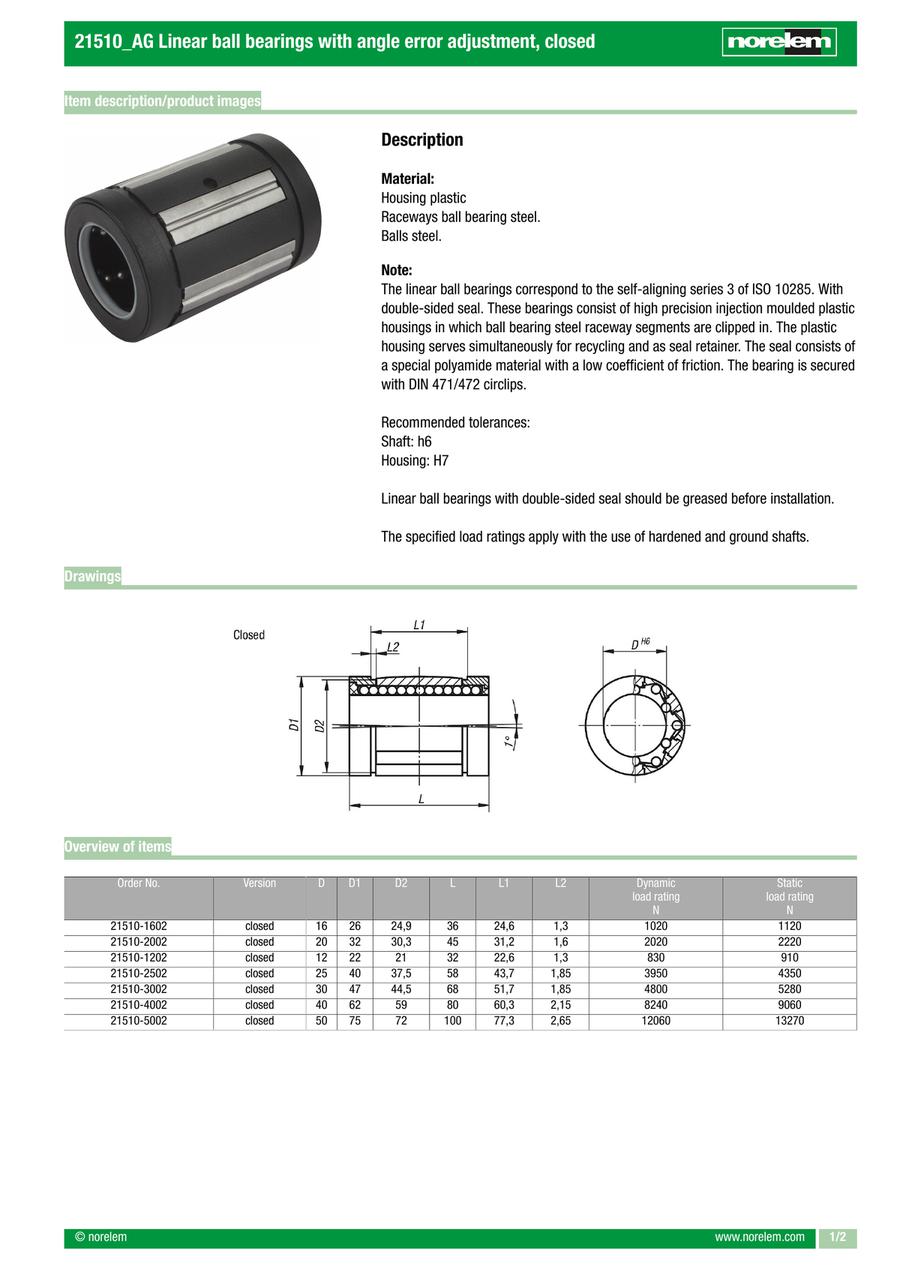

Linear ball bearing with angle error adjustment, closed, plastic (21510)
· Plastic truss acts as return and seal retainer simultaneously
· Dynamic load rating of up to 4800 N
· Seal made of a special polyamide material with a low friction coefficient
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
Part Number
|
|---|
| 21510-1202 |
| 21510-1602 |
| 21510-2002 |
| 21510-2502 |
| 21510-3002 |
| 21510-4002 |
| 21510-5002 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | D=internal diameter | Dynamic load rating (N) | Static load rating (N) | L=Length | L1 | L2 | D2 | D1=Outside diameter | Weight in kg (ERP) (kg) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
36.60 € | 1 | 4 Days | 12 | 830 | 910 | 32 | 22.6 | 1.3 | 21 | 22 | 0.0230 | ||
37.84 € | 1 | 4 Days | 16 | 1020 | 1120 | 36 | 24.6 | 1.3 | 24.9 | 26 | 0.0375 | ||
47.54 € | 1 | 4 Days | 20 | 2020 | 2220 | 45 | 31.2 | 1.6 | 30.3 | 32 | 0.0610 | ||
62.78 € | 1 | 4 Days | 25 | 3950 | 4350 | 58 | 43.7 | 1.85 | 37.5 | 40 | 0.1220 | ||
85.01 € | 1 | 4 Days | 30 | 4800 | 5280 | 68 | 51.7 | 1.85 | 44.5 | 47 | 0.1850 | ||
101.39 € | 1 | 4 Days | 40 | 8240 | 9060 | 80 | 60.3 | 2.15 | 59 | 62 | 0.0005 | ||
136.85 € | 1 | 4 Days | 50 | 12060 | 13270 | 100 | 77.3 | 2.65 | 72 | 75 | 0.0007 |
Loading...
Basic information
| Component material | steel | Main material | plastic | Item | Linear Ball Bearing |
|---|---|---|---|---|---|
| Version 1 | with angle error adjustment | Version 2 | closed | RoHS | no |
Configure
Basic Attributes
-
D=internal diameter
-
Dynamic load rating(N)
-
Static load rating(N)
-
L=Length
-
L1
-
L2
-
D2
-
D1=Outside diameter
Filter by standard shipping days
-
- All
- 4 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
