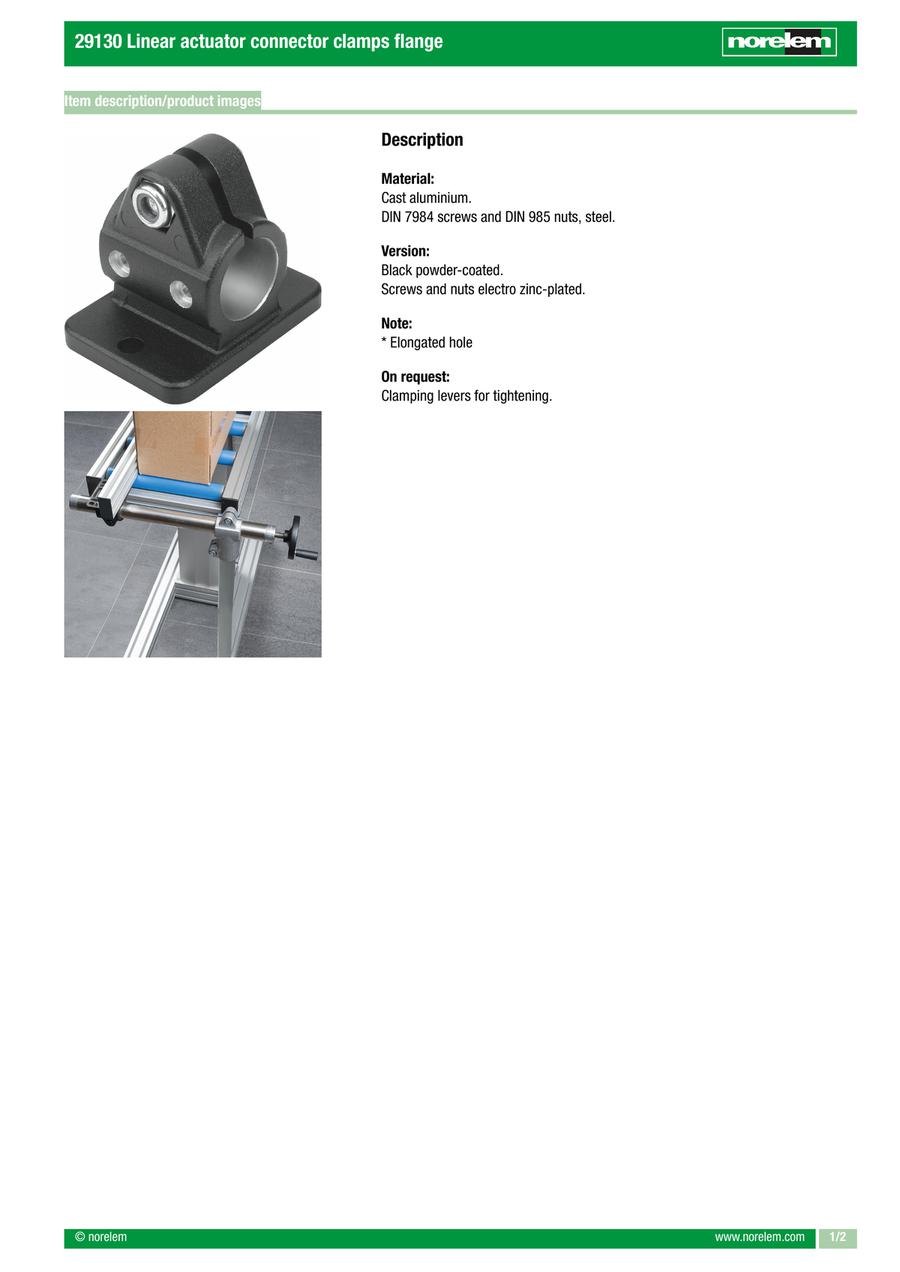

Tube clamp with flange for linear actuator, aluminium (29130)
· Application sectors: machine construction, safety equipment, housings, structures
· On request: clamping levers for fastening
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
Part Number
|
|---|
| 29130-18 |
| 29130-30 |
| 29130-40 |
| 29130-50 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | A | B | C | D | Form | M1 | M2 | M3 | M4 | M5 | Type=Internal diameter | V1 | Weight in kg (ERP) (kg) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
24.67 € | 1 | 4 Days | 37 | 42.5 | 50 | 5.5 (2x) | A | 18 | - | 40 | - | - | 18 | M6x16 | 0.0620 | ||
28.19 € | 1 | 4 Days | 55 | 63 | 78 | 6.5* (2x) | A | 30 | - | 60 | - | 53 | 30 | M8x25 | 0.1635 | ||
46.99 € | 1 | 4 Days | 80 | 87 | 105 | 8.5* (4x) | B | 42 | 52 | 82 | 60 | 80 | 40 | M10x30 | 0.4420 | ||
48.19 € | 1 | 4 Days | 92 | 100 | 130 | 10.5* (4x) | B | 50 | 60 | 100 | 62 | 98 | 50 | M10x35 | 0.6788 |
Loading...
Basic information
| Main material | aluminium | Main colour | black | Component material | steel |
|---|---|---|---|---|---|
| Item | Tube Clamp | Surface finish body | powder-coated | Surface finish component | galvanised |
| Version 1 | with flange | Version 2 | for linear actuator | RoHS | yes |
Configure
Basic Attributes
-
A
-
B
-
C
-
D
-
Form
- A
- B
-
M1
- 18
- 30
- 42
- 50
-
M2
- 52
- 60
-
M3
- 40
- 60
- 82
- 100
-
M4
- 60
- 62
-
M5
- 53
- 80
- 98
-
Type=Internal diameter
- 18
- 30
- 40
- 50
-
V1
- M6x16
- M8x25
- M10x30
- M10x35
Filter by standard shipping days
-
- All
- 4 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
