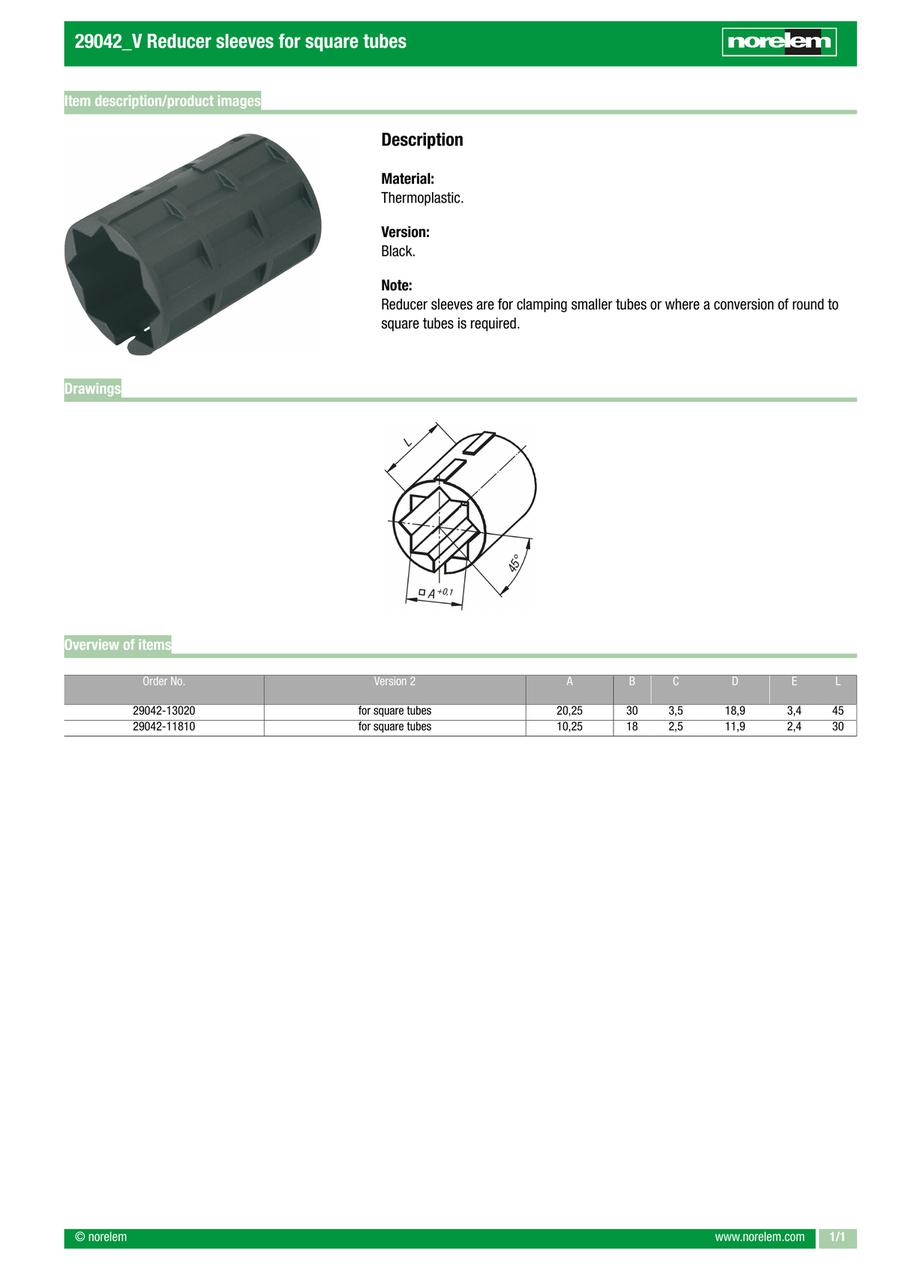

Reducing bush for square tubes, thermoplastic (29042)
· For clamping small tubes
· Can be converted from round tube to square tube
· Material: thermoplastic
· Can be converted from round tube to square tube
· Material: thermoplastic
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
Part Number
|
|---|
| 29042-11810 |
| 29042-13020 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | A=Internal diameter | B=Outside diameter | C | D | E | L | Weight in kg (ERP) (kg) | |
|---|---|---|---|---|---|---|---|---|---|---|---|
1.24 € | 1 | 4 Days | 10.25 | 18 | 2.5 | 11.9 | 2.4 | 30 | 0.0052 | ||
1.85 € | 1 | 4 Days | 20.25 | 30 | 3.5 | 18.9 | 3.4 | 45 | 0.0105 |
Loading...
Basic information
| Main material | thermoplastic | Main colour | black | Suitable for | 29000 / 29004 / 29006 / 290 |
|---|---|---|---|---|---|
| Item | Reducing Bush | Version 2 | for square tubes | RoHS | yes |
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
