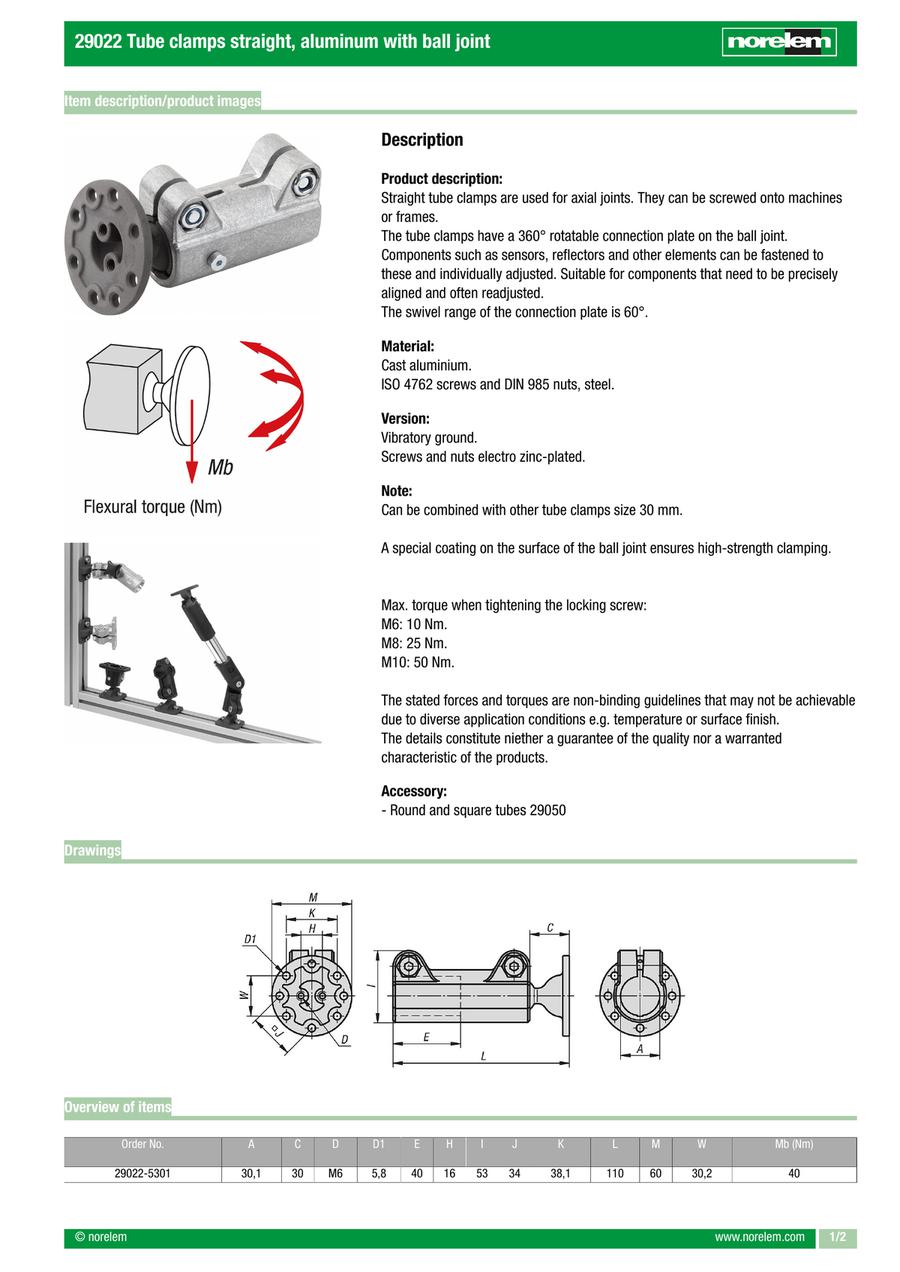

Tube clamp straight, for round tubes, with ball joint (29022)
· Flexible joints over universal connection plates
· 60° free swivel / 360° rotation
· High-strength clamping due to a special surface coating
· Application sectors: machine construction, safety equipment, housings, structures
· 60° free swivel / 360° rotation
· High-strength clamping due to a special surface coating
· Application sectors: machine construction, safety equipment, housings, structures
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
29022-5301
- Product data
- CAD data not available
Basic information
| Main material | aluminium | A=Internal diameter | 30.1 | C | 30 |
|---|---|---|---|---|---|
| Component material | steel | D | M6 | D1 | 5.8 |
| E | 40 | Form definition | with ball joint | H | 16 |
| I | 53 | Item | Tube Clamp | J | 34 |
| K | 38.1 | L=Length | 110 | M | 60 |
| Mb | 40 | Surface finish body | tumbled | Surface finish component | galvanised |
| Version 1 | straight | Version 2 | for round tubes | W | 30.2 |
| RoHS | yes | PL Edelstahl | no | Weight in kg (ERP)(kg) | 0.2580 |
This page is Tube clamp straight, for round tubes, with ball joint (29022), part number 29022-5301.
You can find the detail information about specifications and dimensions on part number 29022-5301.
