Linear actuators with toothed belt drive and profile rail guide (20300)

Configure

B=Width(mm)
- 25
- 30
L=Length(mm)
- 550
- 760
- 850
- 960
- 1350
- 1460
- 1850
- 1960
Size
- 60
- 80
Toothed belt type
- 32AT5
- 50AT5
D1(mm)
- 52
- 76
D4(mm)
- M4
- M6
D5(mm)
- 7
- 10
D6(mm)
- M6
- M8
D7(mm)
- 10
- 13
E3(mm)
- 3
- 4.5
E1(mm)
- 6.2
- 8
E2(mm)
- 16.3
- 20
E4(mm)
- 9.75
- 12.25
Iy(cm⁴)
- 43.26
- 127.09
Iz(cm⁴)
- 57.88
- 184.78
Max. driving torque M(Nm)
- 14
- 38
Max. speed(m/s)
- 3
- 5
Max. acceleration(m/sc)
- 50
- 80
Weight of carriage kg(kg)
- 0.3
- 0.87
Fx(N)
- 844
- 1572
Fy dynamic(N)
- 1384
- 3662
Fz dynamic(N)
- 1384
- 3662
Mx dynamic(Nm)
- 8
- 27
My dynamic(Nm)
- 42
- 146
Mz dynamic(Nm)
- 42
- 146
Idle torque(Nm)
- 0.3
- 0.7
Constant feed(mm/rev)
- 101
- 146
Typical payload kg(kg)
- 15
- 50
L1(mm)
- 180
- 240
L2(mm)
- 45
- 60
L3(mm)
- 30
- 40
L4(mm)
- 29
- 45
A(mm)
- 60
- 80
Slot width(mm)
- 6
- 8
D(mm)
- 17
- 24
Weight Stroke 0 kg
- 2.34
- 5.33
Weight per 1000 mm stroke kg
- 4.82
- 8.39
Travel S(mm)
- 200
- 300
- 500
- 1000
- 1500
Est. shipping days
- All
- Within 4 working days

Linear actuators with toothed belt drive and profile rail guide (20300)

Catalog

Part number:

Still undefined. 8 possible part numbers found.

Part number list
More Information
Catalog

Part number list

Number of items

Part number

B=Width

(mm)

L=Length

(mm)

Size

Toothed belt type

(mm)

(cm⁴)

Max. driving torque M

(Nm)

Max. speed

(m/s)

Max. acceleration

(m/sc)

Weight of carriage kg

(kg)

(N)

Fy dynamic

(N)

Fz dynamic

(N)

Mx dynamic

(Nm)

My dynamic

(Nm)

Mz dynamic

(Nm)

Idle torque

(Nm)

Constant feed

(mm/rev)

Typical payload kg

(kg)

(mm)

Slot width

(mm)

Weight Stroke 0 kg

Weight per 1000 mm stroke kg

Travel S

(mm)

Weight (ERP)

(kg)

Minimum order quantity

25	550	60	32AT5	52	M4	7	M6	10	3	6.2	16.3	9.75	43.26	57.88	14	3	80	0.3	844	1384	1384	8	42	42	0.3	101	15	180	45	30	29	60	6	17	2.34	4.82	200	4.2200	1 pieces
25	850	60	32AT5	52	M4	7	M6	10	3	6.2	16.3	9.75	43.26	57.88	14	3	80	0.3	844	1384	1384	8	42	42	0.3	101	15	180	45	30	29	60	6	17	2.34	4.82	500	4.7500	1 pieces
25	1350	60	32AT5	52	M4	7	M6	10	3	6.2	16.3	9.75	43.26	57.88	14	3	80	0.3	844	1384	1384	8	42	42	0.3	101	15	180	45	30	29	60	6	17	2.34	4.82	1000	7.1600	1 pieces
25	1850	60	32AT5	52	M4	7	M6	10	3	6.2	16.3	9.75	43.26	57.88	14	3	80	0.3	844	1384	1384	8	42	42	0.3	101	15	180	45	30	29	60	6	17	2.34	4.82	1500	9.8100	1 pieces
30	760	80	50AT5	76	M6	10	M8	13	4.5	8	20	12.25	127.09	184.78	38	5	50	0.87	1572	3662	3662	27	146	146	0.7	146	50	240	60	40	45	80	8	24	5.33	8.39	300	7.3870	1 pieces
30	960	80	50AT5	76	M6	10	M8	13	4.5	8	20	12.25	127.09	184.78	38	5	50	0.87	1572	3662	3662	27	146	146	0.7	146	50	240	60	40	45	80	8	24	5.33	8.39	500	9.0650	1 pieces
30	1460	80	50AT5	76	M6	10	M8	13	4.5	8	20	12.25	127.09	184.78	38	5	50	0.87	1572	3662	3662	27	146	146	0.7	146	50	240	60	40	45	80	8	24	5.33	8.39	1000	14.5200	1 pieces
30	1960	80	50AT5	76	M6	10	M8	13	4.5	8	20	12.25	127.09	184.78	38	5	50	0.87	1572	3662	3662	27	146	146	0.7	146	50	240	60	40	45	80	8	24	5.33	8.39	1500	18.7700	1 pieces

Unit price (excluding VAT)(Unit price including VAT)	Standard shipping days

1,347.85 € ( 1,603.94 € )	4 working days
1,557.83 € ( 1,853.82 € )	4 working days
2,054.76 € ( 2,445.16 € )	4 working days
2,487.71 € ( 2,960.37 € )	4 working days
1,687.26 € ( 2,007.84 € )	4 working days
1,819.13 € ( 2,164.76 € )	4 working days
2,111.81 € ( 2,513.05 € )	4 working days
2,456.63 € ( 2,923.39 € )	4 working days

More Information

Basic information

Basic information

· Absorption of very high forces from all directions

· Optimum cycle for the movement of large masses

· Toothed belts enable high power transmission with alternating loads

· Good positioning accuracy

· Hollow shafts enable variable motor arrangements

Catalog

Products homepage

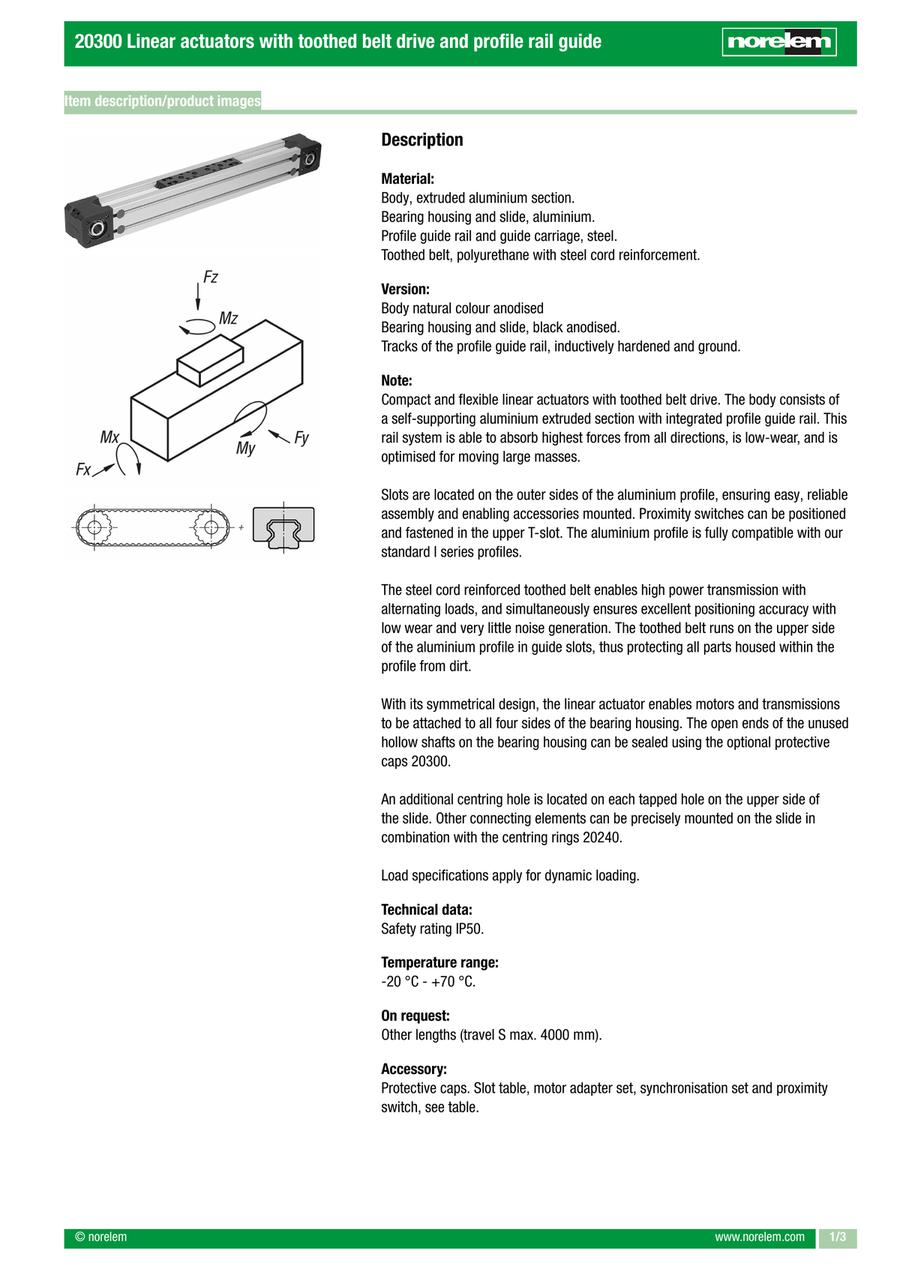

Catalog (2-page spread)
