Carriages DryLin® T (21200)

Carriages DryLin® T (21200)

NORELEM

NORELEM

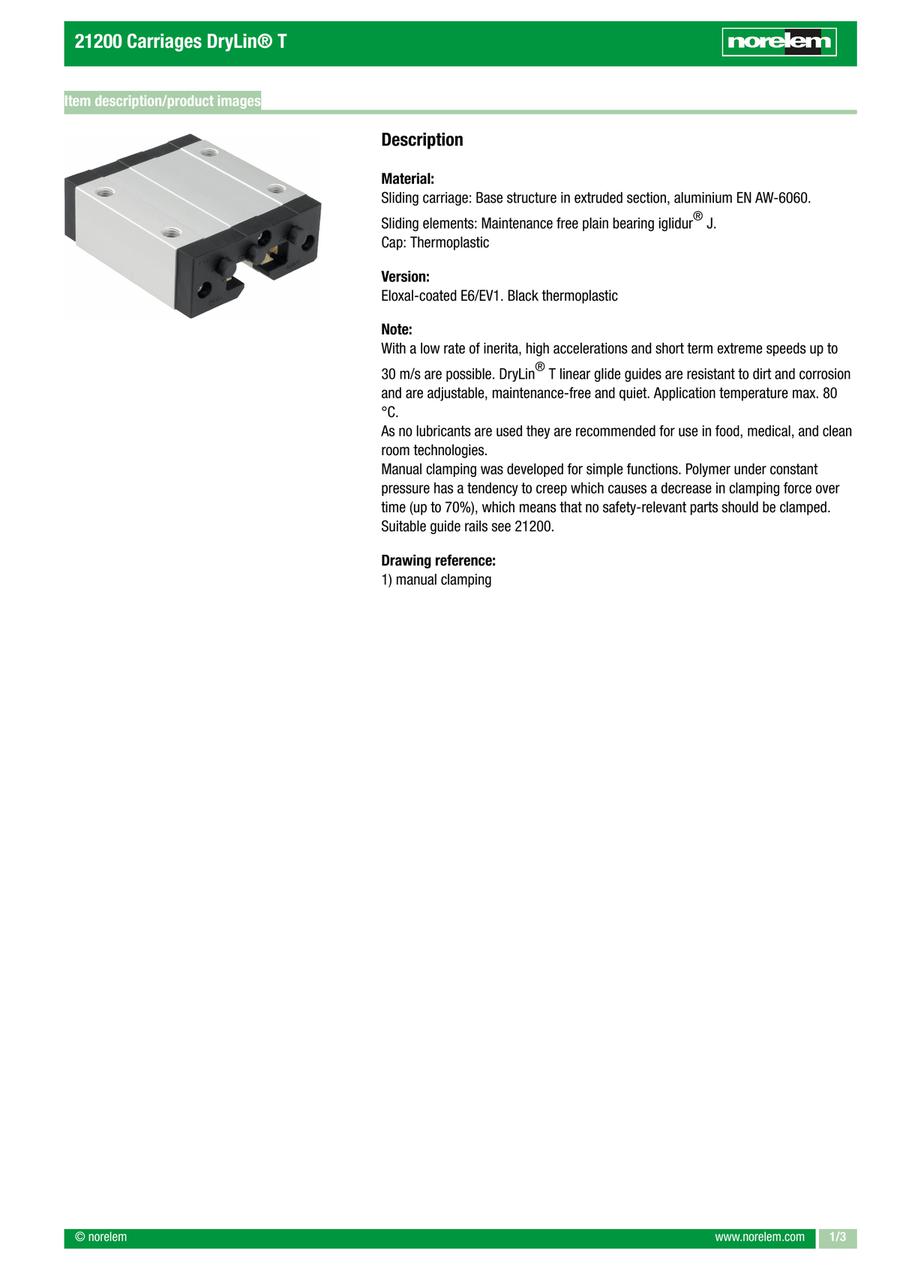

· High acceleration

· Short-term extreme speeds up to 30 m/s

· Resistant to dirt and corrosion

· Manual clamping for simple functions

· Maintenance-free, adjustable and quiet

Data sheet

Part Number

Once your search is narrowed to one product,
the corresponding part number is displayed here.


Data to be displayed
30
45
60
  1. 1
Part Number
21200-1500
21200-1510
21200-1520
21200-1530
21200-2000
21200-2010
21200-2020
21200-2030
21200-2500
21200-2510
21200-2520
21200-2530
21200-3000
21200-3010
21200-3020
21200-3030
Part Number
Standard Unit Price
Minimum order quantityVolume Discount
Standard
Shipping Days
?
B=Width
(mm) 		L=Length
(mm) 		Version 2 A
(mm) 		A1
(mm) 		D
(mm) 		D2
(mm) 		D1 for screw to DIN 912 Size H1
(mm) 		H
(mm) 		H2
(mm) 		H3
(mm) 		C0(-Y)
(kN) 		C0Z
(kN) 		C0Y
(kN) 		L1
(mm) 		M0X
(Nm) 		M0Y
(Nm) 		M0Z
(Nm) 		C1
(mm) 		B1
(mm) 		Manual clamp thread C
(mm) 		Weight (ERP)
(kg)

65.43 €

1 4 Days 4774Standard fixed bearing3830M5-M415424-1642450322525916--0.0980

90.60 €

1 4 Days 4774Fixed bearing with manual clamping3830M520M41542411.51642450322525916M6190.0977

65.43 €

1 4 Days 4774Floating bearing y axis3830M5-M415424-1642450322525916--0.0966

65.43 €

1 4 Days 4774Floating bearing z axis3830M5-M415424-1642450322525916--0.0965

67.22 €

1 4 Days 6387Standard fixed bearing5340M6-M520530-19.87.43.77.4618545451021.5--0.2000

92.36 €

1 4 Days 6387Fixed bearing with manual clamping5340M628M5205301519.87.43.77.4618545451021.5M8180.2000

67.22 €

1 4 Days 6387Floating bearing y axis5340M6-M520530-19.87.43.77.4618545451021.5--0.1830

67.22 €

1 4 Days 6387Floating bearing z axis5340M6-M520530-19.87.43.77.4618545451021.5--0.1846

82.69 €

1 4 Days 7096Standard fixed bearing5745M8-M625536-24.8105106812565651123.5--0.3052

107.85 €

1 4 Days 7096Fixed bearing with manual clamping5745M828M6255361924.8105106812565651123.5M8170.3010

82.69 €

1 4 Days 7096Floating bearing y axis5745M8-M625536-24.8105106812565651123.5--0.2811

82.69 €

1 4 Days 7096Floating bearing z axis5745M8-M625536-24.8105106812565651123.5--0.2822

86.58 €

1 4 Days 90109Standard fixed bearing7252M10-M8306.542-2714714792001001001231--0.5055

111.68 €

1 4 Days 90109Fixed bearing with manual clamping7252M1028M8306.54221.52714714792001001001231M8200.5180

86.58 €

1 4 Days 90109Floating bearing y axis7252M10-M8306.542-2714714792001001001231--0.5020

86.58 €

1 4 Days 90109Floating bearing z axis7252M10-M8306.542-2714714792001001001231--0.5020

Loading...

  1. 1

Basic information

Material Aluminum Component material Iglidur® Item Guide carriage
Version 1 DRYLIN® T RoHS Yes

Configure

Clear all

16Suggestion of an applicable part number.

View Part Numbers

Some specification is not specified yet.
The part number is completed.

Basic Attributes

  • B=Width(mm)

    • 47
    • 63
    • 70
    • 90

    Clear

  • L=Length(mm)

    • 74
    • 87
    • 96
    • 109

    Clear

  • Version 2

    • Fixed bearing with manual clamping
    • Floating bearing y axis
    • Floating bearing z axis
    • Standard fixed bearing

    Clear
