NORELEM

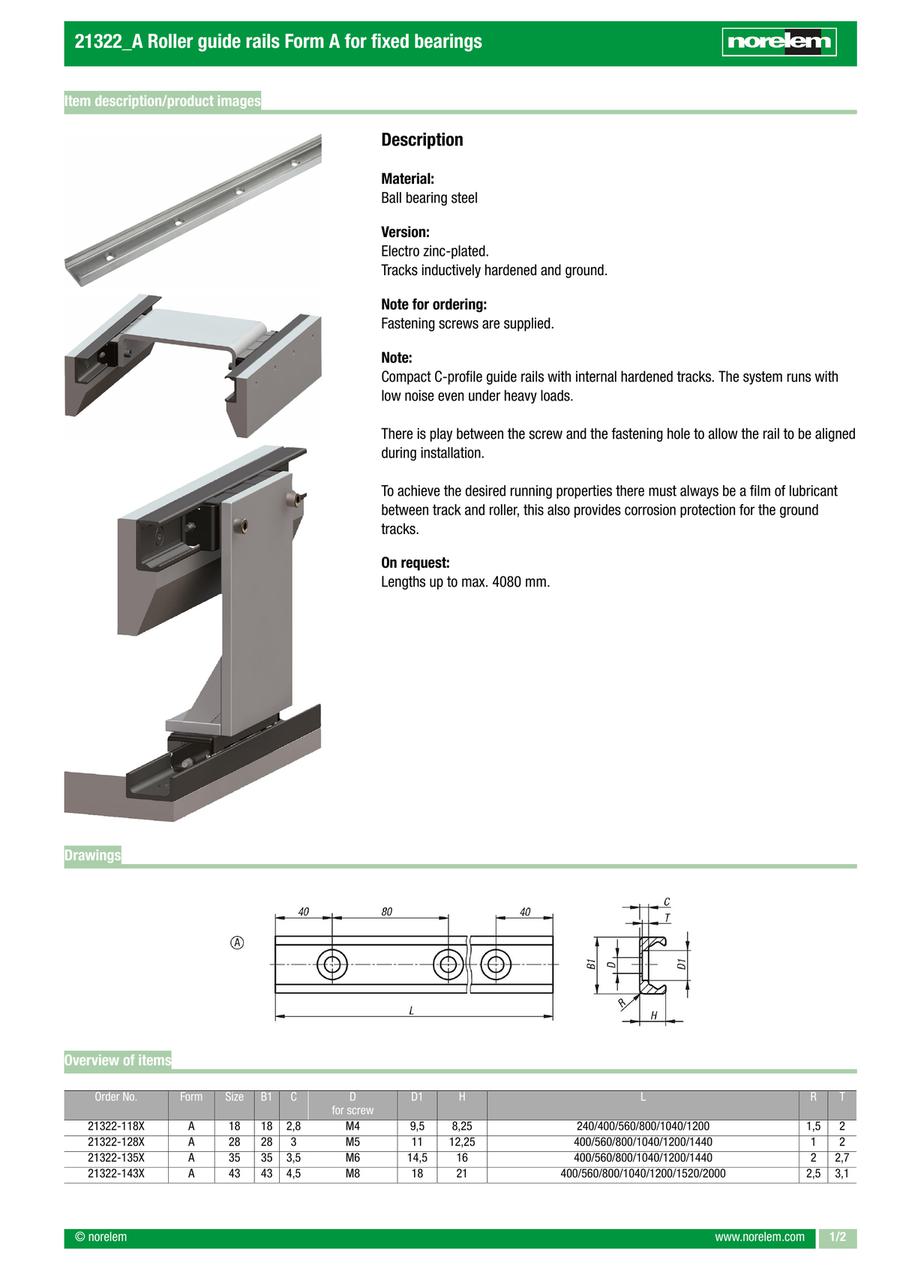

Roller guide rails Form A for fixed bearings (21322)

Roller guide rails Form A for fixed bearings (21322)

Part number:

Still undefined. 25 possible part numbers found.
Quantity:

Part number list

Number of items
  • 1
    • Part number
    21322-118X0240
    21322-118X0400
    21322-118X0560
    21322-118X0800
    21322-118X1040
    21322-118X1200
    21322-128X0400
    21322-128X0560
    21322-128X0800
    21322-128X1040
    21322-128X1200
    21322-128X1440
    21322-135X0400
    21322-135X0560
    21322-135X0800
    21322-135X1040
    21322-135X1200
    21322-135X1440
    21322-143X0400
    21322-143X0560
    21322-143X0800
    21322-143X1040
    21322-143X1200
    21322-143X1520
    21322-143X2000

    L=Length

    (mm)

    D

    (mm)

    D1

    (mm)

    D for screw

    Size

    H

    (mm)

    B1

    (mm)

    C

    (mm)

    R

    (mm)

    T

    (mm)

    Weight (ERP)

    (kg)

    Approx. weight

    (kg/m)

    		Minimum order quantity
    240
    -
    9.5
    M4
    18
    8.25
    18
    2.8
    1.5
    2
    0.1365
    -
    1 pieces
    400
    -
    9.5
    M4
    18
    8.25
    18
    2.8
    1.5
    2
    0.2280
    -
    1 pieces
    560
    -
    9.5
    M4
    18
    8.25
    18
    2.8
    1.5
    2
    0.3100
    -
    1 pieces
    800
    -
    9.5
    M4
    18
    8.25
    18
    2.8
    1.5
    2
    0.4500
    -
    1 pieces
    1040
    -
    9.5
    M4
    18
    8.25
    18
    2.8
    1.5
    2
    0.5900
    -
    1 pieces
    1200
    -
    9.5
    M4
    18
    8.25
    18
    2.8
    1.5
    2
    0.6800
    -
    1 pieces
    400
    6.4
    11
    M5
    28
    12.25
    28
    3
    1
    2
    0.4362
    1
    1 pieces
    560
    6.4
    11
    M5
    28
    12.25
    28
    3
    1
    2
    0.6023
    1
    1 pieces
    800
    6.4
    11
    M5
    28
    12.25
    28
    3
    1
    2
    0.8001
    1
    1 pieces
    1040
    6.4
    11
    M5
    28
    12.25
    28
    3
    1
    2
    1.1200
    1
    1 pieces
    1200
    6.4
    11
    M5
    28
    12.25
    28
    3
    1
    2
    1.2780
    1
    1 pieces
    1440
    -
    11
    M5
    28
    12.25
    28
    3
    1
    2
    1.5600
    -
    1 pieces
    400
    -
    14.5
    M6
    35
    16
    35
    3.5
    2
    2.7
    0.6800
    -
    1 pieces
    560
    -
    14.5
    M6
    35
    16
    35
    3.5
    2
    2.7
    0.9400
    -
    1 pieces
    800
    -
    14.5
    M6
    35
    16
    35
    3.5
    2
    2.7
    1.3400
    -
    1 pieces
    1040
    -
    14.5
    M6
    35
    16
    35
    3.5
    2
    2.7
    1.7600
    -
    1 pieces
    1200
    -
    14.5
    M6
    35
    16
    35
    3.5
    2
    2.7
    2.0300
    -
    1 pieces
    1440
    -
    14.5
    M6
    35
    16
    35
    3.5
    2
    2.7
    2.4300
    -
    1 pieces
    400
    10.5
    18
    M8
    43
    21
    43
    4.5
    2.5
    3.1
    1.0390
    2.6
    1 pieces
    560
    10.5
    18
    M8
    43
    21
    43
    4.5
    2.5
    3.1
    1.4500
    2.6
    1 pieces
    800
    10.5
    18
    M8
    43
    21
    43
    4.5
    2.5
    3.1
    2.2000
    2.6
    1 pieces
    1040
    10.5
    18
    M8
    43
    21
    43
    4.5
    2.5
    3.1
    2.9000
    2.6
    1 pieces
    1200
    10.5
    18
    M8
    43
    21
    43
    4.5
    2.5
    3.1
    2.9150
    2.6
    1 pieces
    1520
    -
    18
    M8
    43
    21
    43
    4.5
    2.5
    3.1
    4.0800
    -
    1 pieces
    2000
    -
    18
    M8
    43
    21
    43
    4.5
    2.5
    3.1
    5.2000
    -
    1 pieces
    Unit price (excluding VAT)(Unit price including VAT)
    Standard shipping days
    41.23 €
    ( 49.06 € )
    4 working days
    68.70 €
    ( 81.75 € )
    4 working days
    96.17 €
    ( 114.44 € )
    4 working days
    137.39 €
    ( 163.49 € )
    4 working days
    178.37 €
    ( 212.26 € )
    4 working days
    205.84 €
    ( 244.95 € )
    4 working days
    78.30 €
    ( 93.18 € )
    4 working days
    109.43 €
    ( 130.22 € )
    4 working days
    156.60 €
    ( 186.35 € )
    4 working days
    203.56 €
    ( 242.24 € )
    4 working days
    234.66 €
    ( 279.25 € )
    4 working days
    296.98 €
    ( 353.41 € )
    4 working days
    98.34 €
    ( 117.02 € )
    4 working days
    137.64 €
    ( 163.79 € )
    4 working days
    196.44 €
    ( 233.76 € )
    4 working days
    255.51 €
    ( 304.06 € )
    4 working days
    294.78 €
    ( 350.79 € )
    4 working days
    353.38 €
    ( 420.52 € )
    4 working days
    107.96 €
    ( 128.47 € )
    4 working days
    151.40 €
    ( 180.17 € )
    4 working days
    215.96 €
    ( 256.99 € )
    4 working days
    280.69 €
    ( 334.02 € )
    4 working days
    324.13 €
    ( 385.71 € )
    4 working days
    432.67 €
    ( 514.88 € )
    4 working days
    569.08 €
    ( 677.21 € )
    4 working days
  • 1

    • More Information

    Basic information

    · Compact C profile guide rails

    · Very quiet

    · Fastening screws included

    · Hardened and ground tracks

    · Rail available in a fixed and floating bearing version
