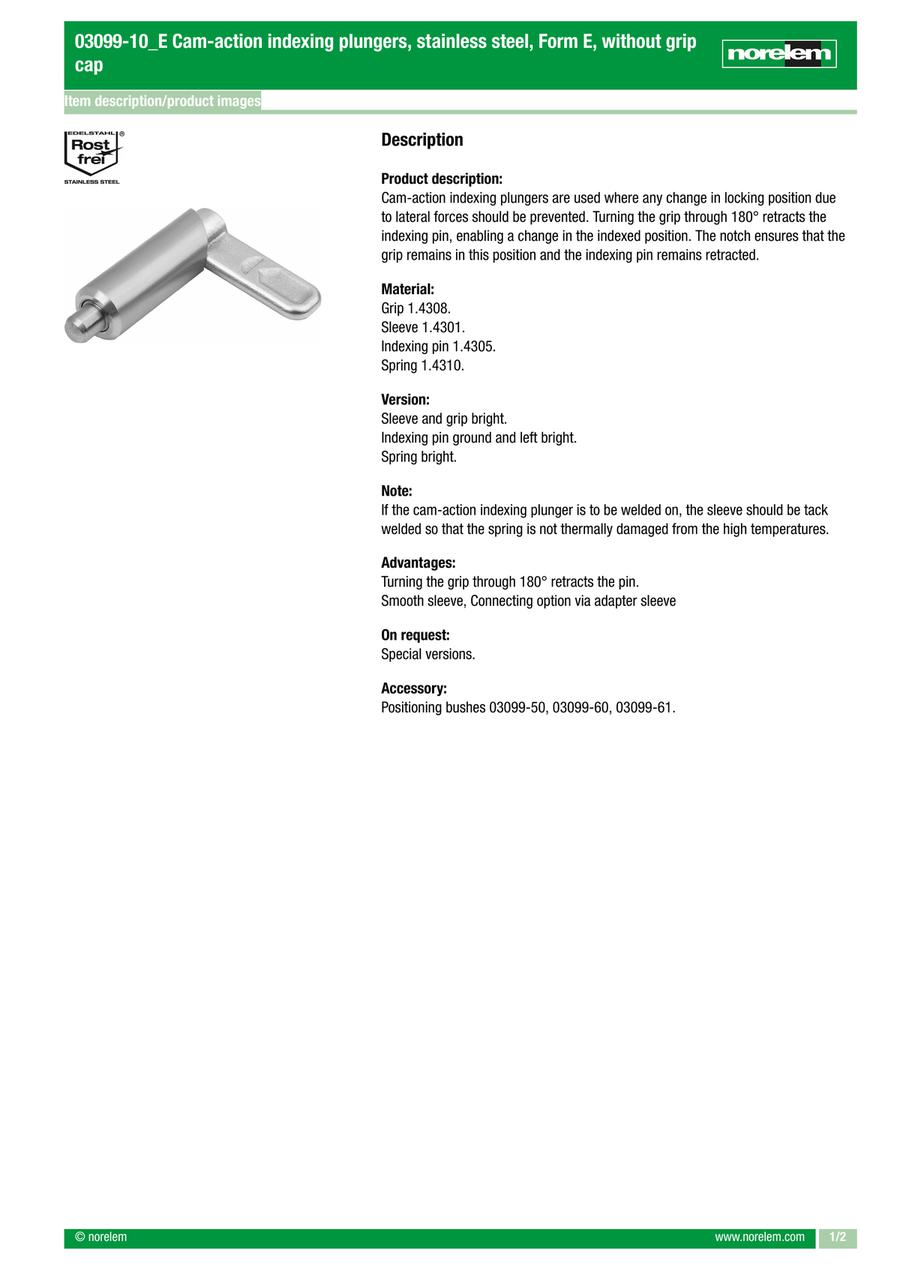

Cam-action indexing plunger smooth version, form E without grip cap, stainless steel (03099)
· Smooth sleeve, Connecting option via adapter sleeve
· Smooth sleeve, Connecting option via adapter sleeve
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Spring force final pressure F2 approx. (N) | Spring force initial pressure F1 approx. (N) | D1 | Fx30° | B | L | H | B1 | D=locking pin diameter | L1=Handle length | Weight (ERP) (kg) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
18.24 € | 1 | 4 Days | 14 | 8 | 10 | 1 | 10.9 | 39.5 | 6 | 4.9 | 4 | 26.3 | 0.0200 | ||
18.24 € | 1 | 4 Days | 14 | 8 | 10 | 1.3 | 10.9 | 39.5 | 6 | 4.9 | 5 | 26.3 | 0.0200 | ||
20.04 € | 1 | 4 Days | 14 | 8 | 12 | 1.3 | 12.9 | 48.4 | 8 | 5.7 | 5 | 31.1 | 0.0330 | ||
18.24 € | 1 | 4 Days | 14 | 8 | 10 | 1.8 | 10.9 | 39.5 | 6 | 4.9 | 6 | 26.3 | 0.0210 | ||
20.04 € | 1 | 4 Days | 14 | 8 | 12 | 1.8 | 12.9 | 48.4 | 8 | 5.7 | 6 | 31.1 | 0.0340 | ||
21.89 € | 1 | 4 Days | 35 | 15 | 16 | 1.8 | 16.6 | 62.3 | 10 | 7 | 6 | 41.5 | 0.0790 | ||
20.04 € | 1 | 4 Days | 14 | 8 | 12 | 2.3 | 12.9 | 48.4 | 8 | 5.7 | 8 | 31.1 | 0.0350 | ||
21.89 € | 1 | 4 Days | 35 | 15 | 16 | 2.3 | 16.6 | 62.3 | 10 | 7 | 8 | 41.5 | 0.0800 | ||
26.05 € | 1 | 4 Days | 60 | 20 | 20 | 2.3 | 20.5 | 72.3 | 12 | 8.5 | 8 | 51.3 | 0.1470 | ||
21.89 € | 1 | 4 Days | 35 | 15 | 16 | 2.8 | 16.6 | 62.8 | 10 | 7 | 10 | 41.5 | 0.0820 | ||
26.05 € | 1 | 4 Days | 60 | 20 | 20 | 2.8 | 20.5 | 72.3 | 12 | 8.5 | 10 | 51.3 | 0.1490 | ||
26.05 € | 1 | 4 Days | 60 | 20 | 20 | 3 | 20.5 | 72.3 | 12 | 8.5 | 12 | 51.3 | 0.1550 |
Loading...
Basic information
| Main material | Stainless steel | Surface finish body | bright | Form | E |
|---|---|---|---|---|---|
| Version 1 | smooth version | Item | Cam-Action Indexing Plungers | RoHS | yes |
| PL Edelstahl | yes |
