Configure

Body Material
- Steel
- Stainless Steel
Travel S(mm)
- 3.5
- 4
- 5
- 6
- 8
- 10
- 12
- 16
Length L(mm)
- 31.5
- 38.5
- 43.5
- 51.7
- 68
- 74
- 78
- 96
Steel code
- 1.4034
- 1.4305
Surface finish body
- Hardened
- Not hardened
Component colour
- Traffic red RAL 3020
- Black grey RAL 7021
Size
- 0
- 1
- 2
- 3
- 4
- 5
- 9
D=pin diameter(mm)
- 3
- 4
- 5
- 6
- 8
- 10
- 12
- 16
D1=Thread
D2(mm)
- 14
- 18
- 21
- 25
- 33
- 40
Fx30°(mm)
- 0.8
- 1
- 1.3
- 1.8
- 2.3
- 2.8
- 3.2
L1(mm)
- 12
- 15
- 17
- 20
- 26
- 28
- 32
L2(mm)
- 5
- 6
- 7
- 8
- 10
- 12
- 14
- 18
L3(mm)
- 10
- 13
- 15
- 16
- 21
- 23
- 25
- 28
SW1(mm)
- 8
- 10
- 13
- 14
- 19
- 22
- 27
SW2(mm)
- 1-1/2
- 1-1/8
- 1/2
- 3/4
- 7/16
- 9/16
- 15/16
Spring force final pressure F2 approx.(N)
- 10
- 12
- 14
- 35
- 39
- 40
- 46
Spring force initial pressure F1 approx.(N)
- 4.5
- 5
- 6
- 15
- 20
Est. shipping days
- All
- Within 4 working days

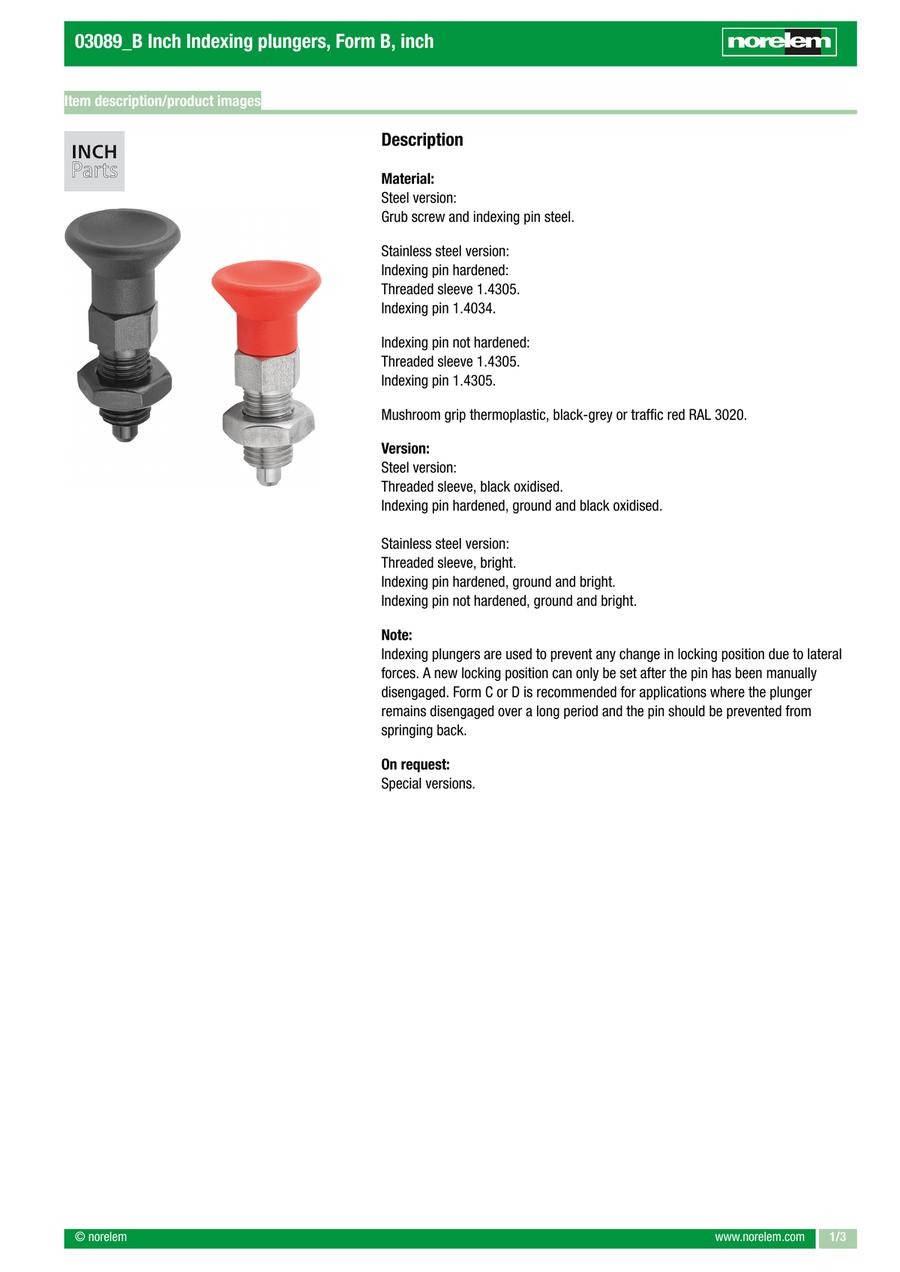

Indexing plungers, Form B, inch (03089)

Catalog

Part number:

Still undefined. 48 possible part numbers found.

Part number list
Catalog

Part number list

Number of items

Part number

Body Material

Travel S

(mm)

Length L

(mm)

Steel code

Surface finish body

Component colour

Size

D=pin diameter

(mm)

D1=Thread

(mm)

Fx30°

(mm)

SW1

(mm)

SW2

(mm)

Spring force final pressure F2 approx.

(N)

Spring force initial pressure F1 approx.

(N)

Weight (ERP)

(kg)

Minimum order quantity

Stainless Steel	4	38.5	1.4034	Hardened	Black grey RAL 7021	0	4	5/16-24	18	1	15	6	13	10	1/2	12	6	0.0101	1 pieces
Stainless Steel	4	38.5	1.4034	Hardened	Traffic red RAL 3020	0	4	5/16-24	18	1	15	6	13	10	1/2	12	6	0.0134	1 pieces
Stainless Steel	5	43.5	1.4034	Hardened	Black grey RAL 7021	1	5	3/8-24	21	1.3	17	7	15	13	9/16	12	5	0.0200	1 pieces
Stainless Steel	5	43.5	1.4034	Hardened	Traffic red RAL 3020	1	5	3/8-24	21	1.3	17	7	15	13	9/16	12	5	0.0245	1 pieces
Stainless Steel	6	51.7	1.4034	Hardened	Black grey RAL 7021	2	6	1/2-13	25	1.8	20	8	16	14	3/4	14	6	0.0309	1 pieces
Stainless Steel	6	51.7	1.4034	Hardened	Traffic red RAL 3020	2	6	1/2-13	25	1.8	20	8	16	14	3/4	14	6	0.0412	1 pieces
Stainless Steel	8	68	1.4034	Hardened	Black grey RAL 7021	3	8	5/8-11	33	2.3	26	10	21	19	15/16	35	15	0.0878	1 pieces
Stainless Steel	8	68	1.4034	Hardened	Traffic red RAL 3020	3	8	5/8-11	33	2.3	26	10	21	19	15/16	35	15	0.0878	1 pieces
Stainless Steel	10	74	1.4034	Hardened	Black grey RAL 7021	4	10	3/4-10	33	2.8	28	12	23	22	1-1/8	40	15	0.1381	1 pieces
Stainless Steel	10	74	1.4034	Hardened	Traffic red RAL 3020	4	10	3/4-10	33	2.8	28	12	23	22	1-1/8	40	15	0.1381	1 pieces
Stainless Steel	12	78	1.4034	Hardened	Black grey RAL 7021	4	12	3/4-16	33	2.8	28	14	25	22	1-1/8	39	15	0.1408	1 pieces
Stainless Steel	12	78	1.4034	Hardened	Traffic red RAL 3020	4	12	3/4-16	33	2.8	28	14	25	22	1-1/8	39	15	0.1408	1 pieces
Stainless Steel	16	96	1.4034	Hardened	Black grey RAL 7021	5	16	1-8	40	3.2	32	18	28	27	1-1/2	46	20	0.2836	1 pieces
Stainless Steel	16	96	1.4034	Hardened	Traffic red RAL 3020	5	16	1-8	40	3.2	32	18	28	27	1-1/2	46	20	0.2836	1 pieces
Stainless Steel	3.5	31.5	1.4034	Hardened	Black grey RAL 7021	9	3	1/4-28	14	0.8	12	5	10	8	7/16	10	4.5	0.0051	1 pieces
Stainless Steel	3.5	31.5	1.4034	Hardened	Traffic red RAL 3020	9	3	1/4-28	14	0.8	12	5	10	8	7/16	10	4.5	0.0072	1 pieces
Stainless Steel	4	38.5	1.4305	Not hardened	Black grey RAL 7021	0	4	5/16-24	18	1	15	6	13	10	1/2	12	6	0.0101	1 pieces
Stainless Steel	4	38.5	1.4305	Not hardened	Traffic red RAL 3020	0	4	5/16-24	18	1	15	6	13	10	1/2	12	6	0.0134	1 pieces
Stainless Steel	5	43.5	1.4305	Not hardened	Black grey RAL 7021	1	5	3/8-24	21	1.3	17	7	15	13	9/16	12	5	0.0183	1 pieces
Stainless Steel	5	43.5	1.4305	Not hardened	Traffic red RAL 3020	1	5	3/8-24	21	1.3	17	7	15	13	9/16	12	5	0.0228	1 pieces
Stainless Steel	6	51.7	1.4305	Not hardened	Black grey RAL 7021	2	6	1/2-13	25	1.8	20	8	16	14	3/4	14	6	0.0301	1 pieces
Stainless Steel	6	51.7	1.4305	Not hardened	Traffic red RAL 3020	2	6	1/2-13	25	1.8	20	8	16	14	3/4	14	6	0.0415	1 pieces
Stainless Steel	8	68	1.4305	Not hardened	Black grey RAL 7021	3	8	5/8-11	33	2.3	26	10	21	19	15/16	35	15	0.0670	1 pieces
Stainless Steel	8	68	1.4305	Not hardened	Traffic red RAL 3020	3	8	5/8-11	33	2.3	26	10	21	19	15/16	35	15	0.0890	1 pieces
Stainless Steel	10	74	1.4305	Not hardened	Black grey RAL 7021	4	10	3/4-10	33	2.8	28	12	23	22	1-1/8	40	15	0.1395	1 pieces
Stainless Steel	10	74	1.4305	Not hardened	Traffic red RAL 3020	4	10	3/4-10	33	2.8	28	12	23	22	1-1/8	40	15	0.1395	1 pieces
Stainless Steel	12	78	1.4305	Not hardened	Black grey RAL 7021	4	12	3/4-16	33	2.8	28	14	25	22	1-1/8	39	15	0.1406	1 pieces
Stainless Steel	12	78	1.4305	Not hardened	Traffic red RAL 3020	4	12	3/4-16	33	2.8	28	14	25	22	1-1/8	39	15	0.1406	1 pieces
Stainless Steel	16	96	1.4305	Not hardened	Black grey RAL 7021	5	16	1-8	40	3.2	32	18	28	27	1-1/2	46	20	0.2844	1 pieces
Stainless Steel	16	96	1.4305	Not hardened	Traffic red RAL 3020	5	16	1-8	40	3.2	32	18	28	27	1-1/2	46	20	0.2844	1 pieces
Stainless Steel	3.5	31.5	1.4305	Not hardened	Black grey RAL 7021	9	3	1/4-28	14	0.8	12	5	10	8	7/16	10	4.5	0.0050	1 pieces
Stainless Steel	3.5	31.5	1.4305	Not hardened	Traffic red RAL 3020	9	3	1/4-28	14	0.8	12	5	10	8	7/16	10	4.5	0.0071	1 pieces
Steel	4	38.5	-	Hardened	Black grey RAL 7021	0	4	5/16-24	18	1	15	6	13	10	1/2	12	6	0.0132	1 pieces
Steel	4	38.5	-	Hardened	Traffic red RAL 3020	0	4	5/16-24	18	1	15	6	13	10	1/2	12	6	0.0132	1 pieces
Steel	5	43.5	-	Hardened	Black grey RAL 7021	1	5	3/8-24	21	1.3	17	7	15	13	9/16	12	5	0.0251	1 pieces
Steel	5	43.5	-	Hardened	Traffic red RAL 3020	1	5	3/8-24	21	1.3	17	7	15	13	9/16	12	5	0.0270	1 pieces
Steel	6	51.7	-	Hardened	Black grey RAL 7021	2	6	1/2-13	25	1.8	20	8	16	14	3/4	14	6	0.0318	1 pieces
Steel	6	51.7	-	Hardened	Traffic red RAL 3020	2	6	1/2-13	25	1.8	20	8	16	14	3/4	14	6	0.0333	1 pieces
Steel	8	68	-	Hardened	Black grey RAL 7021	3	8	5/8-11	33	2.3	26	10	21	19	15/16	35	15	0.0687	1 pieces
Steel	8	68	-	Hardened	Traffic red RAL 3020	3	8	5/8-11	33	2.3	26	10	21	19	15/16	35	15	0.0899	1 pieces
Steel	10	74	-	Hardened	Black grey RAL 7021	4	10	3/4-10	33	2.8	28	12	23	22	1-1/8	40	15	0.1376	1 pieces
Steel	10	74	-	Hardened	Traffic red RAL 3020	4	10	3/4-10	33	2.8	28	12	23	22	1-1/8	40	15	0.1376	1 pieces
Steel	12	78	-	Hardened	Black grey RAL 7021	4	12	3/4-16	33	2.8	28	14	25	22	1-1/8	39	15	0.1385	1 pieces
Steel	12	78	-	Hardened	Traffic red RAL 3020	4	12	3/4-16	33	2.8	28	14	25	22	1-1/8	39	15	0.1382	1 pieces
Steel	16	96	-	Hardened	Black grey RAL 7021	5	16	1-8	40	3.2	32	18	28	27	1-1/2	46	20	0.2851	1 pieces
Steel	16	96	-	Hardened	Traffic red RAL 3020	5	16	1-8	40	3.2	32	18	28	27	1-1/2	46	20	0.2851	1 pieces
Steel	3.5	31.5	-	Hardened	Black grey RAL 7021	9	3	1/4-28	14	0.8	12	5	10	8	7/16	10	4.5	0.1000	1 pieces
Steel	3.5	31.5	-	Hardened	Traffic red RAL 3020	9	3	1/4-28	14	0.8	12	5	10	8	7/16	10	4.5	0.1000	1 pieces

Unit price (excluding VAT)(Unit price including VAT)	Standard shipping days

17.73 € ( 21.10 € )	4 working days
17.73 € ( 21.10 € )	4 working days
19.89 € ( 23.67 € )	4 working days
19.89 € ( 23.67 € )	4 working days
23.38 € ( 27.82 € )	4 working days
23.38 € ( 27.82 € )	4 working days
29.66 € ( 35.30 € )	4 working days
29.66 € ( 35.30 € )	4 working days
30.93 € ( 36.81 € )	4 working days
30.93 € ( 36.81 € )	4 working days
45.33 € ( 53.94 € )	4 working days
45.33 € ( 53.94 € )	4 working days
64.43 € ( 76.67 € )	4 working days
64.43 € ( 76.67 € )	4 working days
20.84 € ( 24.80 € )	4 working days
20.84 € ( 24.80 € )	4 working days
17.73 € ( 21.10 € )	4 working days
17.73 € ( 21.10 € )	4 working days
19.89 € ( 23.67 € )	4 working days
19.89 € ( 23.67 € )	4 working days
23.38 € ( 27.82 € )	4 working days
23.38 € ( 27.82 € )	4 working days
29.66 € ( 35.30 € )	4 working days
29.66 € ( 35.30 € )	4 working days
30.93 € ( 36.81 € )	4 working days
30.93 € ( 36.81 € )	4 working days
45.33 € ( 53.94 € )	4 working days
45.33 € ( 53.94 € )	4 working days
64.43 € ( 76.67 € )	4 working days
64.43 € ( 76.67 € )	4 working days
20.84 € ( 24.80 € )	4 working days
20.84 € ( 24.80 € )	4 working days
10.98 € ( 13.07 € )	4 working days
10.98 € ( 13.07 € )	4 working days
11.63 € ( 13.84 € )	4 working days
11.63 € ( 13.84 € )	4 working days
12.92 € ( 15.37 € )	4 working days
12.92 € ( 15.37 € )	4 working days
16.84 € ( 20.04 € )	4 working days
16.84 € ( 20.04 € )	4 working days
17.26 € ( 20.54 € )	4 working days
17.26 € ( 20.54 € )	4 working days
23.74 € ( 28.25 € )	4 working days
23.74 € ( 28.25 € )	4 working days
32.95 € ( 39.21 € )	4 working days
32.95 € ( 39.21 € )	4 working days
12.23 € ( 14.55 € )	4 working days
12.23 € ( 14.55 € )	4 working days
