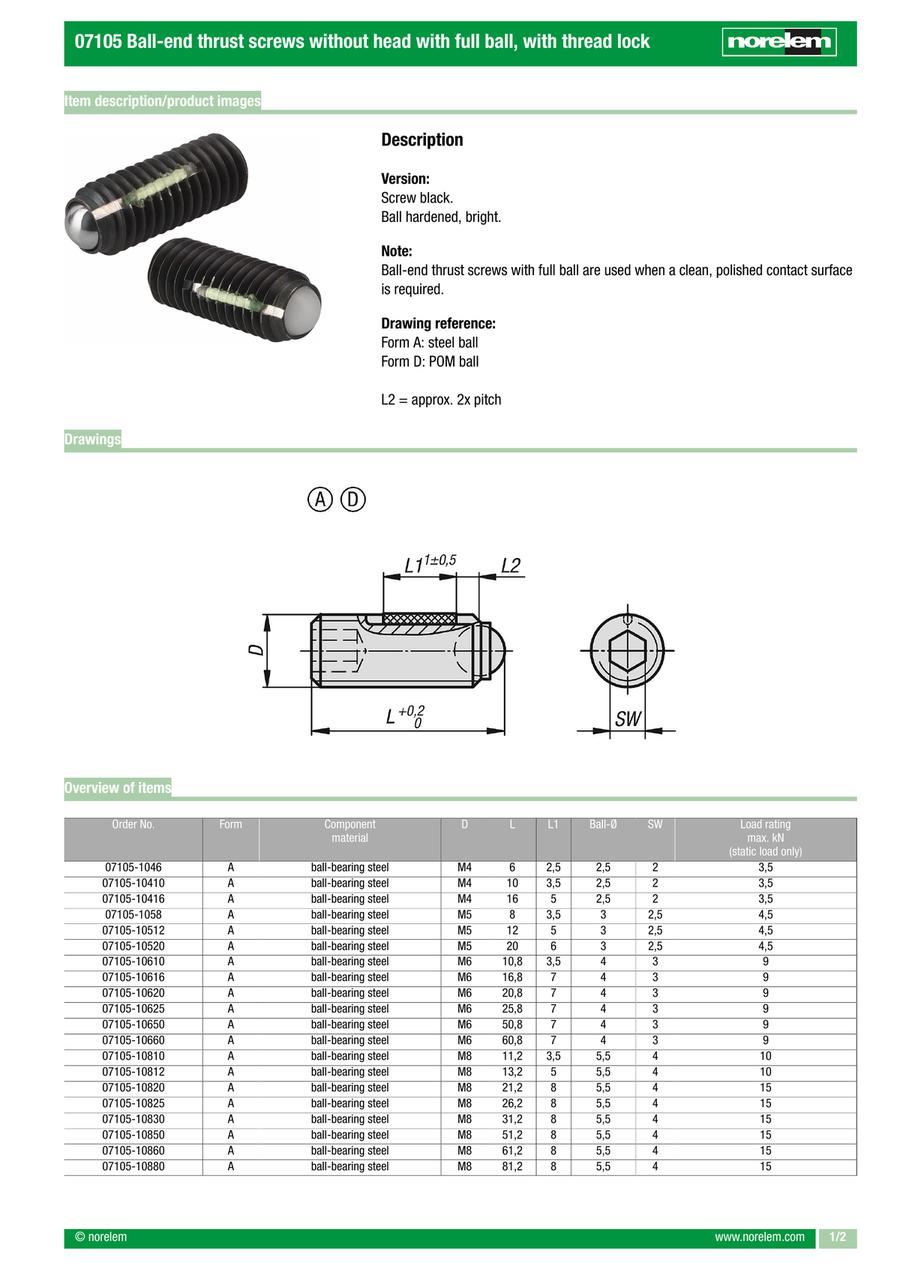

Ball-end thrust screw without head, with thread lock, ball steel or POM (07105)
· Application sectors: machine and fixture construction, assembly
· ball point hardened
· Ideal for clean, polished contact faces
· with thread lock: safety against vibrations, reusable
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | L1 (mm) | SW | Form | Component material | Load rating max. (static load only) (kN) | D=Thread | L=Length | Ball-Ø | Form definition | Weight in kg (ERP) (kg) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
3.60 € | 1 | 4 Days | 2.5 | 2 | A | ball-bearing steel | 3.5 | M4 | 6 | 2.5 | ball steel | 0.0003 | ||
3.60 € | 1 | 4 Days | 3.5 | 2 | A | ball-bearing steel | 3.5 | M4 | 10 | 2.5 | ball steel | 0.0005 | ||
3.60 € | 1 | 4 Days | 5 | 2 | A | ball-bearing steel | 3.5 | M4 | 16 | 2.5 | ball steel | 0.0010 | ||
3.39 € | 1 | 4 Days | 3.5 | 2.5 | A | ball-bearing steel | 4.5 | M5 | 8 | 3 | ball steel | 0.0006 | ||
3.39 € | 1 | 4 Days | 5 | 2.5 | A | ball-bearing steel | 4.5 | M5 | 12 | 3 | ball steel | 0.0011 | ||
3.49 € | 1 | 4 Days | 6 | 2.5 | A | ball-bearing steel | 4.5 | M5 | 20 | 3 | ball steel | 0.0021 | ||
3.39 € | 1 | 4 Days | 3.5 | 3 | A | ball-bearing steel | 9 | M6 | 10.8 | 4 | ball steel | 0.0012 | ||
3.39 € | 1 | 4 Days | 7 | 3 | A | ball-bearing steel | 9 | M6 | 16.8 | 4 | ball steel | 0.0023 | ||
3.49 € | 1 | 4 Days | 7 | 3 | A | ball-bearing steel | 9 | M6 | 20.8 | 4 | ball steel | 0.0029 | ||
3.49 € | 1 | 4 Days | 7 | 3 | A | ball-bearing steel | 9 | M6 | 25.8 | 4 | ball steel | 0.0038 | ||
5.09 € | 1 | 4 Days | 7 | 3 | A | ball-bearing steel | 9 | M6 | 50.8 | 4 | ball steel | 0.0080 | ||
5.33 € | 1 | 4 Days | 7 | 3 | A | ball-bearing steel | 9 | M6 | 60.8 | 4 | ball steel | 0.0097 | ||
3.39 € | 1 | 4 Days | 3.5 | 4 | A | ball-bearing steel | 10 | M8 | 11.2 | 5.5 | ball steel | 0.0024 | ||
3.39 € | 1 | 4 Days | 5 | 4 | A | ball-bearing steel | 10 | M8 | 13.2 | 5.5 | ball steel | 0.0029 | ||
3.39 € | 1 | 4 Days | 8 | 4 | A | ball-bearing steel | 15 | M8 | 21.2 | 5.5 | ball steel | 0.0052 | ||
3.46 € | 1 | 4 Days | 8 | 4 | A | ball-bearing steel | 15 | M8 | 26.2 | 5.5 | ball steel | 0.0068 | ||
3.51 € | 1 | 4 Days | 8 | 4 | A | ball-bearing steel | 15 | M8 | 31.2 | 5.5 | ball steel | 0.0083 | ||
5.20 € | 1 | 4 Days | 8 | 4 | A | ball-bearing steel | 15 | M8 | 51.2 | 5.5 | ball steel | 0.0145 | ||
5.35 € | 1 | 4 Days | 8 | 4 | A | ball-bearing steel | 15 | M8 | 61.2 | 5.5 | ball steel | 0.0176 | ||
5.52 € | 1 | 4 Days | 8 | 4 | A | ball-bearing steel | 15 | M8 | 81.2 | 5.5 | ball steel | 0.0236 | ||
3.93 € | 1 | 4 Days | 5 | 5 | A | ball-bearing steel | 20 | M10 | 13.7 | 7 | ball steel | 0.0048 | ||
3.93 € | 1 | 4 Days | 9 | 5 | A | ball-bearing steel | 20 | M10 | 17.7 | 7 | ball steel | 0.0061 | ||
4.15 € | 1 | 4 Days | 9 | 5 | A | ball-bearing steel | 20 | M10 | 21.7 | 7 | ball steel | 0.0081 | ||
4.15 € | 1 | 4 Days | 9 | 5 | A | ball-bearing steel | 20 | M10 | 26.7 | 7 | ball steel | 0.0106 | ||
4.33 € | 1 | 4 Days | 9 | 5 | A | ball-bearing steel | 20 | M10 | 36.7 | 7 | ball steel | 0.0153 | ||
4.54 € | 1 | 4 Days | 8 | 6 | A | ball-bearing steel | 30 | M12 | 18 | 8.5 | ball steel | 0.0091 | ||
4.54 € | 1 | 4 Days | 10 | 6 | A | ball-bearing steel | 30 | M12 | 22 | 8.5 | ball steel | 0.0112 | ||
4.86 € | 1 | 4 Days | 10 | 6 | A | ball-bearing steel | 30 | M12 | 32 | 8.5 | ball steel | 0.0182 | ||
5.35 € | 1 | 4 Days | 10 | 6 | A | ball-bearing steel | 30 | M12 | 42 | 8.5 | ball steel | 0.0254 | ||
7.25 € | 1 | 4 Days | 10 | 8 | A | ball-bearing steel | 60 | M16 | 23.3 | 12 | ball steel | 0.0217 | ||
7.25 € | 1 | 4 Days | 14 | 8 | A | ball-bearing steel | 60 | M16 | 28.3 | 12 | ball steel | 0.0265 | ||
7.71 € | 1 | 4 Days | 14 | 8 | A | ball-bearing steel | 60 | M16 | 38.3 | 12 | ball steel | 0.0396 | ||
8.03 € | 1 | 4 Days | 14 | 8 | A | ball-bearing steel | 60 | M16 | 53.3 | 12 | ball steel | 0.0590 | ||
4.00 € | 1 | 4 Days | 2.5 | 2 | D | polyacetal | 0.3 | M4 | 6 | 2.5 | ball POM | 0.0002 | ||
4.00 € | 1 | 4 Days | 3.5 | 2 | D | polyacetal | 0.3 | M4 | 10 | 2.5 | ball POM | 0.0005 | ||
4.00 € | 1 | 4 Days | 5 | 2 | D | polyacetal | 0.3 | M4 | 16 | 2.5 | ball POM | 0.0009 | ||
3.75 € | 1 | 4 Days | 3.5 | 2.5 | D | polyacetal | 0.5 | M5 | 8 | 3 | ball POM | 0.0006 | ||
3.75 € | 1 | 4 Days | 5 | 2.5 | D | polyacetal | 0.5 | M5 | 12 | 3 | ball POM | 0.0010 | ||
3.81 € | 1 | 4 Days | 6 | 2.5 | D | polyacetal | 0.5 | M5 | 20 | 3 | ball POM | 0.0020 | ||
3.75 € | 1 | 4 Days | 3.5 | 3 | D | polyacetal | 0.9 | M6 | 10.8 | 4 | ball POM | 0.0010 | ||
3.81 € | 1 | 4 Days | 7 | 3 | D | polyacetal | 0.9 | M6 | 16.8 | 4 | ball POM | 0.0021 | ||
4.00 € | 1 | 4 Days | 7 | 3 | D | polyacetal | 0.9 | M6 | 20.8 | 4 | ball POM | 0.0027 | ||
4.00 € | 1 | 4 Days | 7 | 3 | D | polyacetal | 0.9 | M6 | 25.8 | 4 | ball POM | 0.0036 | ||
4.00 € | 1 | 4 Days | 3.5 | 4 | D | polyacetal | 1.5 | M8 | 11.2 | 5.5 | ball POM | 0.0019 | ||
4.00 € | 1 | 4 Days | 5 | 4 | D | polyacetal | 1.5 | M8 | 13.2 | 5.5 | ball POM | 0.0024 | ||
4.00 € | 1 | 4 Days | 8 | 4 | D | polyacetal | 1.5 | M8 | 21.2 | 5.5 | ball POM | 0.0047 | ||
4.11 € | 1 | 4 Days | 8 | 4 | D | polyacetal | 1.5 | M8 | 26.2 | 5.5 | ball POM | 0.0062 | ||
4.11 € | 1 | 4 Days | 8 | 4 | D | polyacetal | 1.5 | M8 | 31.2 | 5.5 | ball POM | 0.0077 | ||
4.43 € | 1 | 4 Days | 5 | 5 | D | polyacetal | 2 | M10 | 13.7 | 7 | ball POM | 0.0037 | ||
4.43 € | 1 | 4 Days | 9 | 5 | D | polyacetal | 2 | M10 | 17.7 | 7 | ball POM | 0.0050 | ||
4.62 € | 1 | 4 Days | 9 | 5 | D | polyacetal | 2 | M10 | 21.7 | 7 | ball POM | 0.0069 | ||
4.62 € | 1 | 4 Days | 9 | 5 | D | polyacetal | 2 | M10 | 26.7 | 7 | ball POM | 0.0094 | ||
4.75 € | 1 | 4 Days | 9 | 5 | D | polyacetal | 2 | M10 | 36.7 | 7 | ball POM | 0.0142 | ||
5.58 € | 1 | 4 Days | 8 | 6 | D | polyacetal | 3 | M12 | 18 | 8.5 | ball POM | 0.0071 | ||
5.58 € | 1 | 4 Days | 10 | 6 | D | polyacetal | 3 | M12 | 22 | 8.5 | ball POM | 0.0091 | ||
5.96 € | 1 | 4 Days | 10 | 6 | D | polyacetal | 3 | M12 | 32 | 8.5 | ball POM | 0.0161 | ||
6.36 € | 1 | 4 Days | 10 | 6 | D | polyacetal | 3 | M12 | 42 | 8.5 | ball POM | 0.0230 |
Loading...
Basic information
| Main material | high carbon steel | Item | Ball-End Thrust Screw | Version 1 | without head |
|---|---|---|---|---|---|
| Version 2 | with thread lock | Thread type(g) | external thread | Grade | 10.9 |
| Product type | with full ball | Surface finish component | hardened and bright |
Configure
Basic Attributes
-
L1(mm)
-
SW
- 2
- 2.5
- 3
- 4
- 5
- 6
- 8
-
Form
- A
- D
-
Component material
- ball-bearing steel
- polyacetal
-
Load rating max. (static load only)(kN)
-
D=Thread
- M4
- M5
- M6
- M8
- M10
- M12
- M16
-
L=Length
-
Ball-Ø
- 2.5
- 3
- 4
- 5.5
- 7
- 8.5
- 12
-
Form definition
- ball POM
- ball steel
Filter by standard shipping days
-
- All
- 4 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
