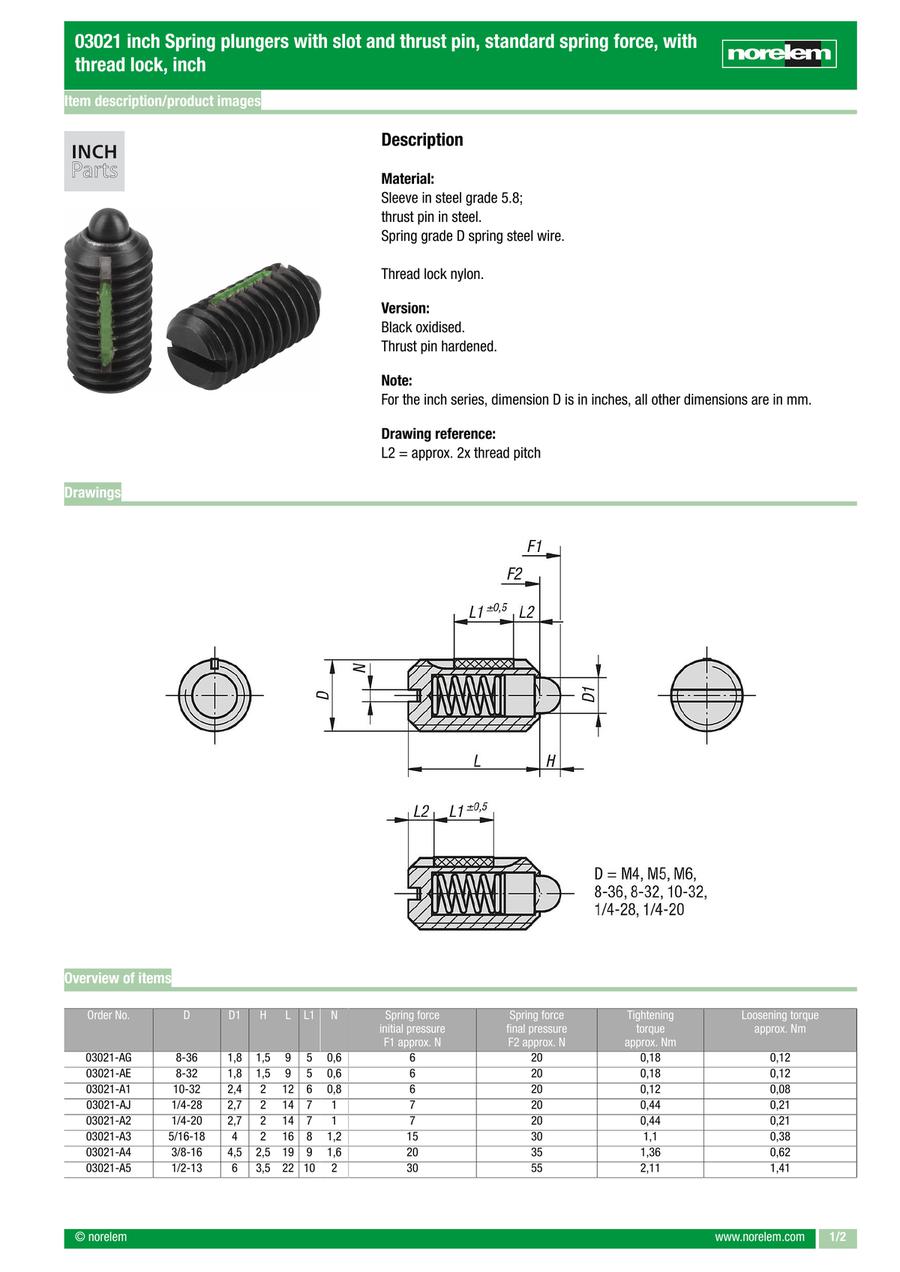

Spring plungers with slot and thrust pin, standard spring force, with thread lock, inch (03021)

Part number:

Still undefined. 9 possible part numbers found.
Quantity:

Part number list

Number of items

Initial Load

(N)

Max. Load

(N)

D=thread

D1

(mm)

L=Length

(mm)

L1

(mm)

H

(mm)

N

(mm)

Tightening torque approx.

(Nm)

Loosening torque approx.

(Nm)

Weight (ERP)

(kg)

Minimum order quantity
6
20
10-32
2.4
12
6
2
0.8
0.12
0.08
0.0010
1 pieces
7
20
1/4-20
2.7
14
7
2
1
0.44
0.21
0.0021
1 pieces
15
30
5/16-18
4
16
8
2
1.2
1.1
0.38
0.0035
1 pieces
20
35
3/8-16
4.5
19
9
2.5
1.6
1.36
0.62
0.0057
1 pieces
30
55
1/2-13
6
22
10
3.5
2
2.11
1.41
0.0127
1 pieces
45
100
5/8-11
8.5
24
14
4.5
2.5
3.95
3.05
0.0211
1 pieces
6
20
8-32
1.8
9
5
1.5
0.6
0.18
0.12
0.0007
1 pieces
6
20
8-36
1.8
9
5
1.5
0.6
0.18
0.12
0.0005
1 pieces
7
20
1/4-28
2.7
14
7
2
1
0.44
0.21
0.0021
1 pieces
Unit price (excluding VAT)(Unit price including VAT)
Standard shipping days
2.50 €
( 2.98 € )
4 working days
2.54 €
( 3.02 € )
4 working days
2.93 €
( 3.49 € )
4 working days
3.09 €
( 3.68 € )
4 working days
6.13 €
( 7.29 € )
4 working days
9.11 €
( 10.84 € )
4 working days
2.48 €
( 2.95 € )
4 working days
2.48 €
( 2.95 € )
4 working days
2.54 €
( 3.02 € )
4 working days

More Information

Basic information

· Quick indexing, positioning and fixating of components

· Application sectors: machine and plant construction, trade, domestic

· Universally applicable and easy to mount

· Hardened thrust pin

· with thread lock: safety against vibrations, reusable
