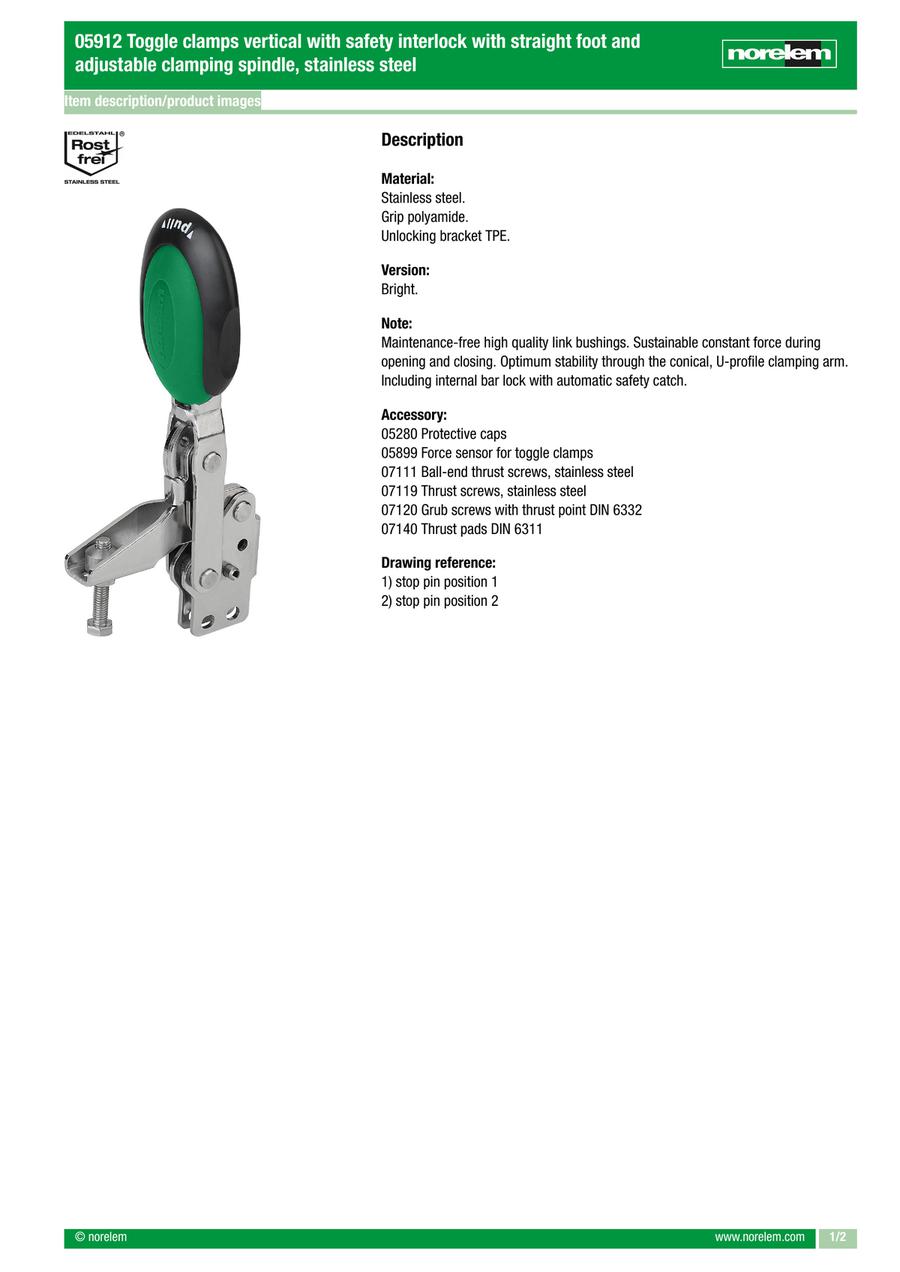

Toggle clamp vertical with safety lock, vertical foot, adjustable clamping spindle, stainless steel (05912)
· Application sectors: machine construction, welding technology, metal processing, woodworking, plastics industry
· Optimum stability through the conical, U-profile clamping arm
· Slim design – ideal for tight spaces
· Internal rod lock with automatic catch
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
Part Number
|
|---|
| 05912-106102 |
| 05912-108102 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Hand force FH (N) | Retaining force F1 (N) | Retaining force F2 (N) | Clamping force F3 (N) | Clamping force F4 (N) | M=clamping spindle | L | H | L1 | A | B2 | B3 | B6 | A1 | A3 | D | A2 | C | Opening angle handle position 1 | Opening angle holding arm stop pin removed | Opening angle holding arm position 1 | Opening angle handle position 2 | Opening angle holding arm position 2 | C2 | Weight in kg (ERP) (kg) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
92.57 € | 1 | 4 Days | 160 | 1350 | 1650 | 920 | 1050 | M6x35 | 86.5 | 175.7 | 53 | 14 | 17.5 | 12.5 | 53.4 | 29 | 12 | 5.5 | 7 | 37.6 | 46° | 141° | 56° | 56° | 83° | 5.5 | 0.3295 | ||
110.61 € | 1 | 4 Days | 190 | 2000 | 2800 | 940 | 1350 | M8x45 | 107 | 207.6 | 62 | 21 | 20.6 | 15.6 | 51.1 | 39 | 19 | 6.8 | 9 | 49 | 26° | 158° | 13° | 61° | 93° | 6.5 | 0.4336 |
Loading...
Basic information
| Main material | stainless steel | Surface finish body | bright | Component material | polyamide |
|---|---|---|---|---|---|
| Component colour | green | Version 2 | vertical foot | hole arrangement | 3 |
| B | 10.2 | Version 1 | with safety lock | Item | Toggle Clamp |
| Grip type toggle clamp | vertical | Product type | adjustable clamping spindle | B1 | 5.2 |
| RoHS | yes | PL Edelstahl | yes |
Configure
Basic Attributes
-
Hand force FH(N)
- 160
- 190
-
Retaining force F1(N)
-
Retaining force F2(N)
- 1650
- 2800
-
Clamping force F3(N)
-
Clamping force F4(N)
-
M=clamping spindle
-
L
-
H
-
L1
-
A
-
B2
-
B3
-
B6
- 51.1
- 53.4
-
A1
- 29
- 39
-
A3
- 12
- 19
-
D
- 5.5
- 6.8
-
A2
- 7
- 9
-
C
-
Opening angle handle position 1
- 26°
- 46°
-
Opening angle holding arm stop pin removed
- 141°
- 158°
-
Opening angle holding arm position 1
- 13°
- 56°
-
Opening angle handle position 2
- 56°
- 61°
-
Opening angle holding arm position 2
- 83°
- 93°
-
C2
- 5.5
- 6.5
